BODY STRIPE

0001 1 0002 1�-��-����������� 0003 1

75941STRIPE, CENTER PILLAR, RH

main75941-87005-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75941-87005-03iCR30,YR30..E,Q198908-199201

GUN M,045 ,148 ,168 ,20L ,3H4 ,8D8

main75941-87006iCR30,YR30..E198903-198903

main75941-87007iCR21,YR21..E198903-198903

main75941-87008iCR30,YR30..E198903-198911

main75941-87009iCR21,YR20..E,G,Q; YR21198808-199201

main75941-87010-02iCR21,YR20..G198808-199201

main75941-87010-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75941-87012iCR21,YR21..E198909-198910

main75941-87013iCR30,YR30..E198909-198910

main75941-87014iCR21,YR21..E198909-198911

main75941-87016iCR21,YR21..E198912-199001

main75941-87017iCR30,YR30..E198912-199001

main75941-87018iCR21,YR21..E198912-199001

main75941-87019iCR30,YR30..E198912-199001

75942STRIPE, CENTER PILLAR, NO.2

main75942-87005-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75942-87005-03iCR30,YR30..E,Q198908-199201

GUN M,045 ,148 ,168 ,20L ,3H4 ,8D8

main75942-87006iCR30,YR30..E198903-198903

main75942-87007iCR21,YR21..E198903-198903

main75942-87008iCR30,YR30..E198903-198911

main75942-87009iCR21,YR20..E,G,Q; YR21198808-199201

main75942-87010-02iCR21,YR20..G198808-199201

main75942-87010-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75942-87012iCR21,YR21..E198909-198910

main75942-87013iCR30,YR30..E198909-198910

main75942-87014iCR21,YR21..E198909-198911

main75942-87016iCR21,YR21..E198912-199001

main75942-87017iCR30,YR30..E198912-199001

main75942-87018iCR21,YR21..E198912-199001

main75942-87019iCR30,YR30..E198912-199001

75973FSTRIPE, FRONT SIDE PANEL, RH

main75973-87006-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75973-87006-03iCR30,YR30..E,Q198808-198908

GUN M,148 ,168 ,20L ,3H4 ,8D8

main75973-87007iCR30,YR30..E198903-198903

main75973-87008iCR21,YR21..E198903-198903

main75973-87009iCR30,YR30..E198903-198911

main75973-87010iCR21,YR20..E,G,Q; YR21198808-199201

main75973-87011-02iCR21,YR20..E,Q; YR21198908-199201

main75973-87011-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75973-87013iCR21,YR21..E198909-198910

main75973-87014iCR30,YR30..E198909-198910

main75973-87015iCR21,YR21..E198909-198911

main75973-87017iCR21,YR21..E198912-199001

main75973-87019iCR21,YR21..E198912-199001

main75973-87020iCR30,YR30..E198912-199001

75974FSTRIPE, FRONT SIDE PANEL, LH

main75974-87006-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75974-87006-03iCR30,YR30..E,Q198808-198908

GUN M,148 ,168 ,20L ,3H4 ,8D8

main75974-87007iCR30,YR30..E198903-198903

main75974-87008iCR21,YR21..E198903-198903

main75974-87009iCR30,YR30..E198903-198911

main75974-87010iCR21,YR20..E,G,Q; YR21198808-199201

main75974-87011-02iCR21,YR20..E,Q; YR21198808-198908

main75974-87011-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75974-87013iCR21,YR21..E198909-198910

main75974-87014iCR30,YR30..E198909-198910

main75974-87015iCR21,YR21..E198909-198911

main75974-87017iCR21,YR21..E198912-199001

main75974-87019iCR21,YR21..E198912-199001

main75974-87020iCR30,YR30..E198912-199001

75979STRIPE, FUEL FILLER OPENING LID

main75979-87020-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75979-87020-03iCR30,YR30..E,Q198908-199201

GUN M,045 ,148 ,168 ,20L ,3H4 ,8D8

main75979-87021iCR30,YR30..E198903-198903

main75979-87022iCR21,YR21..E198903-198903

main75979-87023iCR30,YR30..E198903-198911

main75979-87024iCR21,YR20..E,G,Q; YR21198808-199201

main75979-87025-02iCR21,YR20..G198808-199201

main75979-87025-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75979-87027iCR21,YR21..E198909-198910

main75979-87028iCR30,YR30..E198909-198910

main75979-87029iCR21,YR21..E198909-198911

main75979-87031iCR21,YR21..E198912-199001

main75979-87032iCR30,YR30..E198912-199001

main75979-87033iCR21,YR21..E198912-199001

main75979-87034iCR30,YR30..E198912-199001

75984ASTRIPE, SLIDE DOOR

main75984-87004-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75984-87004-03iCR30,YR30..E,Q198908-199201

GUN M,045 ,148 ,168 ,20L ,3H4 ,8D8

main75984-87005iCR21,YR20..E,G,Q; YR21198808-199201

main75984-87006-02iCR21,YR20..E,Q; YR21198908-199201

main75984-87006-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75984-87008iCR30,YR30..E198903-198903

main75984-87009iCR21,YR21..E198903-198903

main75984-87010iCR30,YR30..E198903-198911

main75984-87011iCR21,YR21..E198909-198910

main75984-87012iCR30,YR30..E198909-198910

main75984-87013iCR21,YR21..E198909-198911

main75984-87015iCR21,YR21..E198912-199001

main75984-87016iCR30,YR30..E198912-199001

main75984-87017iCR21,YR21..E198912-199001

main75984-87018iCR30,YR30..E198912-199001

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-87G07-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75985-87G07-03iCR30,YR30..E,Q198808-198908

GUN M,148 ,168 ,20L ,3H4 ,8D8

main75985-87G08iCR30,YR30..E198903-198903

main75985-87G09iCR21,YR21..E198903-198903

main75985-87G10iCR30,YR30..E198903-198911

main75985-87G11iCR21,YR20..E,G,Q; YR21198808-199201

main75985-87G12-02iCR21,YR20..E,Q; YR21198808-198908

main75985-87G12-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75985-87G13-02iCR21,YR20..E,Q; YR21198908-199201

main75985-87G13-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75985-87G15iCR21,YR21..E198909-198910

main75985-87G16iCR30,YR30..E198909-198910

main75985-87G17iCR21,YR21..E198909-198911

main75985-87G19iCR21,YR21..E198912-199001

main75985-87G20iCR30,YR30..E198912-199001

main75985-87G21iCR21,YR21..E198912-199001

main75985-87G22iCR30,YR30..E198912-199001

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-87071-02iCR30,YR30..E,Q; CR30..G198808-199201

MAROON,21L ,4K6 ,4K7; MAROON,4K6 ,4K7

main75986-87071-03iCR30..G198808-199201

GUN M,045 ,148

main75986-87072iCR30,YR30..E198903-198903

main75986-87073iCR21,YR21..E198903-198903

main75986-87074iCR30,YR30..E198903-198911

main75986-87075iCR21,YR20..E,G,Q; YR21198808-199201

main75986-87076-02iCR21,YR20..G198808-199201

main75986-87076-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75986-87077-02iCR21,YR20..E,Q; YR21198908-199201

main75986-87077-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75986-87079iCR21,YR21..E198909-198910

main75986-87G01iCR30,YR30..E198909-198910

main75986-87G02iCR21,YR21..E198909-198911

main75986-87G04iCR21,YR21..E198912-199001

main75986-87G05iCR30,YR30..E198912-199001

main75986-87G06iCR21,YR21..E198912-199001

main75986-87G07iCR30,YR30..E198912-199001

75991ASTRIPE, QUARTER, RH

main75991-87056-02iCR30,YR30..E,Q; CR30..G198808-199201

main75991-87056-03iCR30..G198808-199201

main75991-87057-02iCR30,YR30..E,Q; CR30..G198808-199201

main75991-87057-03iCR30,YR30..E,Q198908-199201

main75991-87059iCR21,YR20..E,G,Q; YR21198808-199201

main75991-87060-02iCR21,YR20..E,Q; YR21198808-198908

main75991-87060-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75991-87061iCR21,YR20..E,G,Q; YR21198808-199201

main75991-87062iCR30,YR30..E198903-198903

main75991-87063iCR21,YR21..E198903-198903

main75991-87064iCR30,YR30..E198903-198911

main75991-87065iCR21,YR21..E198909-198910

main75991-87066iCR30,YR30..E198909-198910

main75991-87067iCR21,YR21..E198909-198911

main75991-87069iCR21,YR21..E198912-199001

main75991-87070iCR30,YR30..E198912-199001

main75991-87071iCR21,YR21..E198912-199001

main75991-87072iCR30,YR30..E198912-199001

75992ASTRIPE, QUARTER, LH

main75992-87036-02iCR30,YR30..E,Q; CR30..G198808-199201

main75992-87036-03iCR30,YR30..E,Q198808-198908

main75992-87037-02iCR30,YR30..E,Q; CR30..G198808-199201

main75992-87037-03iCR30..G198808-199201

main75992-87038iCR21,YR20..E,G,Q; YR21198808-199201

main75992-87039iCR21,YR20..E,G,Q; YR21198808-199201

main75992-87040-02iCR21,YR20..E,Q; YR21198908-199201

main75992-87040-04iCR21,YR20..E,Q; CR21,YR20..G; YR21198808-199201

main75992-87042iCR30,YR30..E198903-198903

main75992-87043iCR21,YR21..E198903-198903

main75992-87044iCR30,YR30..E198903-198911

main75992-87045iCR21,YR21..E198909-198910

main75992-87046iCR30,YR30..E198909-198910

main75992-87047iCR21,YR21..E198909-198911

main75992-87049iCR21,YR21..E198912-199001

main75992-87050iCR30,YR30..E198912-199001

main75992-87051iCR21,YR21..E198912-199001

main75992-87052iCR30,YR30..E198912-199001

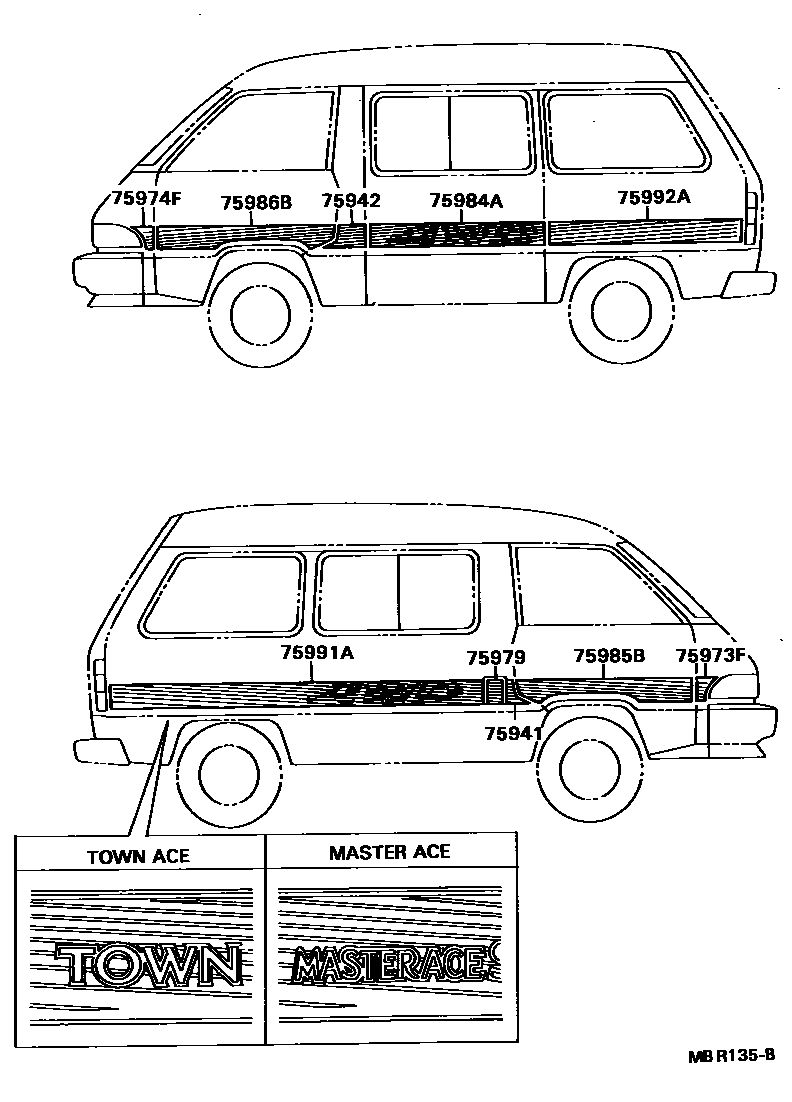

10 parts on this diagram · 3 diagrams in section
