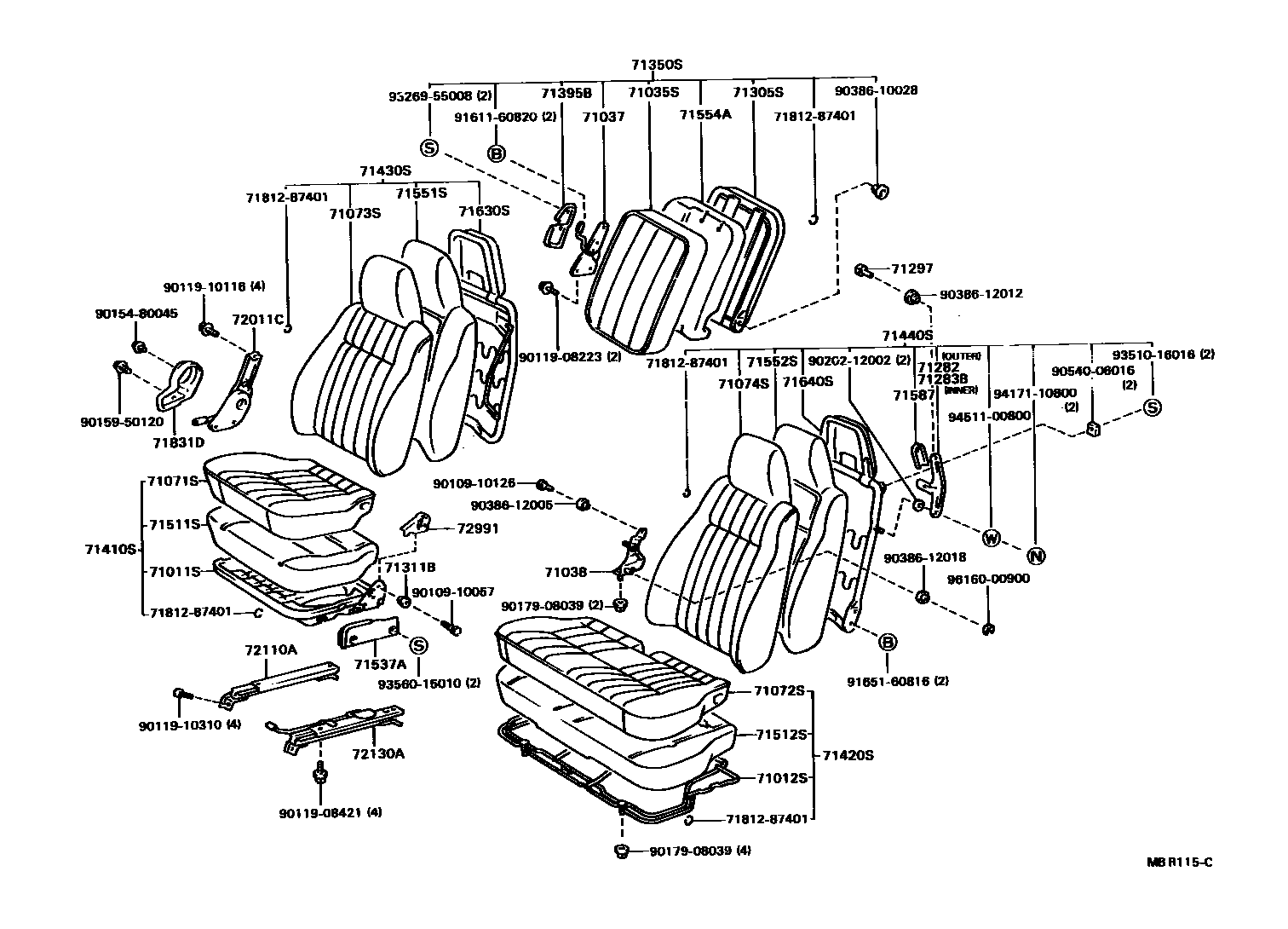

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-87018iCR2#,3#,KR2#,YR2#,3#198808-199201

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-87011iCR2#,3#,YR2#,3#..4FC,5F198808-199201

main71012-87013iKR2#,YR20,25,28..MTM..(B,D)198808-199201

71035SCOVER, FRONT SEATBACK, CENTER

main71076-87021-03iYR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

main71076-87023-03iKR2#198808-199201

SHADOW GRAY,TRIM1#

71037HINGE SUB-ASSY, CENTER SEATBACK, RH

main71037-87001iKR2#,YR20,25,28..MTM..(B,D)198808-199201

71038HINGE SUB-ASSY, CENTER SEATBACK, LH

main71038-87002iYR20,28..5H198808-199201

main71038-87003iKR2#,YR25..MTM..D198808-199201

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-87069-03iCR21,28,30,YR20..F,G198808-199201

SHADOW GRAY,TRIM1#

main71071-87069-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main71071-87071-03iCR27,36,YR25..N198808-199201

SHADOW GRAY,TRIM1#

main71071-87076-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main71071-87076-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main71071-87077-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main71071-87077-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main71071-87078-03iCR2#,36,37,YR20,25,28,36..B,D198808-199201

SHADOW GRAY,TRIM1#

main71071-87079-03iCR21,30,YR21,30..E198903-199201

SUPER EXTRA LIMITED,GRAY,TRIM1#

main71071-87079-06iCR21,30,YR21,30..E198903-199201

main71071-87G03-03iKR2#198808-199201

SHADOW GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-87073-03iCR21,28,30,YR20..F,G198808-199201

SHADOW GRAY,TRIM1#

main71072-87073-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main71072-87076-03iCR27,36,YR25..N198808-199201

SHADOW GRAY,TRIM1#

main71072-87G02-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main71072-87G02-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main71072-87G03-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main71072-87G03-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main71072-87G04-03iYR20,28..5H198808-199201

SHADOW GRAY,TRIM1#

main71072-87G05-03iYR25..MTM..D198808-199201

SHADOW GRAY,TRIM1#

main71072-87G06-03iCR2#,36,37,YR25,28,36..(4FC,5F)..(B,D)198808-199201

SHADOW GRAY,TRIM1#

main71072-87G07-03iCR21,30,YR21,30..E198903-199201

SUPER EXTRA LIMTED,GRAY,TRIM1#

main71072-87G07-06iCR21,30,YR21,30..E198903-199201

main71072-87G08-03iKR2#198808-199201

SHADOW GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-87G12-03iCR21,28,30,YR20..F,G198808-199201

SHADOW GRAY,TRIM1#

main71073-87G12-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main71073-87G13-03iCR27,36,YR25..N198808-199201

SHADOW GRAY,TRIM1#

main71073-87G14-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main71073-87G14-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main71073-87G15-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main71073-87G15-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main71073-87G16-03iCR2#,36,37,YR20,25,28,36..B,D198808-199201

SHADOW GRAY,TRIM1#

main71073-87G17-03iCR21,30,YR21,30..E198903-199201

SUPER EXTRA LIMTED,GRAY,TRIM1#

main71073-87G18-06iCR21,30,YR21,30..E198903-199201

main71073-87G19-03iCR21,30,YR21,30..E198909-199201

SUPER EXTRA LIMITED,GRAY,TRIM1#

main71073-87G20-03iKR2#198808-199201

SHADOW GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-87067-03iCR21,30,YR21,30..E198903-199201

SUPER EXTRA LIMITED,GRAY,TRIM1#

main71074-87068-03iCR21,28,30,YR20..F,G198808-199201

SHADOW GRAY,TRIM1#

main71074-87068-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main71074-87069-03iCR27,36,YR25..N198808-199201

SHADOW GRAY,TRIM1#

main71074-87070-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main71074-87070-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main71074-87071-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main71074-87071-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main71074-87072-03iYR25..05S..D;CR2#,36,37,YR20,28,36..B,D198808-199201

SHADOW GRAY,TRIM1#

main71074-87073-03iYR25..MTM..D198808-199201

SHADOW GRAY,TRIM1#

main71074-87074-06iCR21,30,YR21,30..E198903-199201

main71074-87075-03iKR2#198808-199201

SHADOW GRAY,TRIM1#

main71074-87076-03iCR21,30,YR21,30..E198909-199201

SUPER EXTRA LIMITED,GRAY,TRIM1#

71282SUPPORT, FRONT SEATBACK, LH OUTER

main71282-87003iKR2#,YR25..MTM..D198808-199201

71283BSUPPORT, FRONT SEATBACK, LH INNER

main71283-87002iKR2#,YR25..MTM..D198808-199201

71297PIN, PASSENGER SEATBACK SUPPORT

main71297-87401×2iKR2#..03S;YR25..MTM..D198808-199201

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71104-87002iKR2#,YR20,25,28..MTM..(B,D)198808-199201

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12018iCR2#,3#,KR2#,YR2#,3#198808-199201

71350SBACK ASSY, FRONT SEAT, CENTER

main71450-87003-03iYR20,25,28..MTM..(B,D)198808-199201

***,SHADOW GRAY,TRIM1#

main71450-87005-03iKR2#198808-199201

***,SHADOW GRAY,TRIM1#

71395BCOVER, CENTER SEAT HINGE, RH

main71395-87003-03iKR2#,YR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-87G01-03iCR21,28,30,YR20..F,G198808-199201

***,SHADOW GRAY,TRIM1#

main71410-87G01-06iCR21,30,YR20..G198808-199201

***,SABLE,TRIM4#

main71410-87G05-03iCR27,36,YR25..N198808-199201

***,SHADOW GRAY,TRIM1#

main71410-87G06-03iCR21,30,YR20,21,30..E198808-199201

***,SHADOW GRAY,TRIM1#

main71410-87G06-06iCR21,30,YR20,21,30..E198808-199201

***,SABLE,TRIM4#

main71410-87G07-03iCR21,30,YR21,30..Q198808-199201

***,SHADOW GRAY,TRIM1#

main71410-87G07-06iCR21,30,YR21,30..Q198808-199201

***,SABLE,TRIM4#

main71410-87G08-03iCR2#,36,37,YR20,25,28,36..B,D198808-199201

***,SHADOW GRAY,TRIM1#

main71410-87G12-03iKR2#198808-199201

***,SHADOW GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-87072-03iCR21,28,30,YR20..F,G198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87072-06iCR21,30,YR20..G198808-199201

***,SABLE,TRIM4#

main71420-87076-03iCR27,36,YR25..N198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87077-03iCR21,30,YR20,21,30..E198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87077-06iCR21,30,YR20,21,30..E198808-199201

***,SABLE,TRIM4#

main71420-87078-03iCR21,30,YR21,30..Q198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87078-06iCR21,30,YR21,30..Q198808-199201

***,SABLE,TRIM4#

main71420-87079-03iYR20,28..5H198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87G01-03iYR25..MTM..D198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87G02-03iCR2#,36,37,YR25,28,36..(4FC,5F)..(B,D)198808-199201

***,SHADOW GRAY,TRIM1#

main71420-87G04-03iKR2#198808-199201

***,SHADOW GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-87G19-03iCR21,28,30,YR20..F,G198808-199201

***,SHADOW GRAY,TRIM1#

main71430-87G19-06iCR21,30,YR20..G198808-199201

***,SABLE,TRIM4#

main71430-87G20-03iCR27,36,YR25..N198808-199201

***,SHADOW GRAY,TRIM1#

main71430-87G21-03iCR21,30,YR20,21,30..E198808-199201

***,SHADOW GRAY,TRIM1#

main71430-87G21-06iCR21,30,YR20,21,30..E198808-199201

***,SABLE,TRIM4#

main71430-87G22-03iCR21,30,YR21,30..Q198808-199201

***,SHADOW GRAY,TRIM1#

main71430-87G22-06iCR21,30,YR21,30..Q198808-199201

***,SABLE,TRIM4#

main71430-87G23-03iCR2#,36,37,YR20,25,28,36..B,D198808-199201

***,SHADOW GRAY,TRIM1#

main71430-87G27-03iKR2#198808-199201

***,SHADOW GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-87G13-03iCR21,30,YR20..G198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G13-06iCR21,30,YR20..G198808-199201

***,SABLE,TRIM4#

main71440-87G14-03iCR27,36,YR25..N198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G15-03iCR21,30,YR20,21,30..E198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G15-06iCR21,30,YR20,21,30..E198808-199201

***,SABLE,TRIM4#

main71440-87G16-03iCR21,30,YR21,30..Q198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G16-06iCR21,30,YR21,30..Q198808-199201

***,SABLE,TRIM4#

main71440-87G17-03iYR20..D198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G18-03iYR25..MTM..D198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G19-03iCR27,36..V4D..SRF..5F..05S..D198910-199201

main71440-87G21-03iYR28..06S198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G22-03iKR2#198808-199201

***,SHADOW GRAY,TRIM1#

main71440-87G24-03iCR36..SRF..5F199008-199201

main71440-87G27-03iCR28..F198908-199201

***,SHADOW GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-87004iCR21,30,YR20,21,30..E198808-199201

main71511-87005iCR21,30,YR21,30..Q198808-199201

main71511-87006iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-87006iYR20,28..5H198808-199201

main71512-87008iCR21,30,YR20,21,30..E198808-199201

main71512-87009iCR21,30,YR21,30..Q198808-199201

main71512-87010iKR2#,YR25..MTM..D198808-199201

main71512-87011iCR2#,3#,YR20,25,28,36..(4FC,5F)..(B,D,F,G,N)198808-199201

71537APROTECTOR, FRONT SEAT CUSHION

main71537-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main71537-87001-16iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-87010iCR21,30,YR20,21,30..E198808-199201

main71551-87011iCR21,30,YR21,30..Q198808-199201

main71551-87012iCR21,30,YR21,30..E198909-199201

main71551-87014iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-87011iCR21,30,YR20,21,30..E198808-199201

main71552-87012iCR21,30,YR21,30..Q198808-199201

main71552-87013iKR2#,YR25..MTM..D198808-199201

main71552-87014iCR27..V4D..SRF..5F..05S..D198910-199201

main71552-87015iYR28;CR2#,36,37,YR20,25,36..(05S,08S,09S)..(B,D,F,N)198808-199201

main71552-87016iCR21,30,YR21,30..E198909-199201

71554APAD, FRONT SEATBACK, CENTER

main71554-87002iKR2#,YR20,25,28..MTM..(B,D)198808-199201

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-87001×2iKR26,YR25..4H198808-198906

main71587-87001-03×2iKR2#,YR25..MTM..D198906-199201

SHADOW GRAY,TRIM1#

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-87001iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

main71630-87012iCR21,30,YR20,21,30..E198808-199201

main71630-87013iCR21,30,YR21,30..E198909-199201

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-87001iYR28;CR2#,36,37,YR20,25,36..(05S,08S,09S)..(B,D,F,N)198808-199201

main71640-87014iCR21,30,YR21,30..E198909-199201

main71640-87015iKR2#,YR25..MTM..D198808-199201

main71640-87016iCR21,30,YR20,21,30..E198808-199201

main71640-87017iCR27,36..02S;CR21,30,YR20..G198808-199201

71831DCOVER, FRONT SEAT HINGE, RH

main71831-87001-03iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

SHADOW GRAY,TRIM1#

main71831-87003-03iCR21,30,YR20,21,30..E,G,Q198808-199201

SHADOW GRAY,TRIM1#

main71831-87003-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

72011CADJUSTER SUB-ASSY, FRONT SEAT, RH

main72010-87003iCR21,30,YR20,21,30..E,G,Q198808-199201

main72010-87005-03iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

SHADOW GRAY,TRIM1#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-87004iCR2#,3#,KR2#,YR2#,3#198808-199201

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

main72130-87004iCR36..SRF..5F198910-199201

72991COVER, FRONT SEAT CUSHION, RH

7181287401CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-87401

9010910057

main90109-10057

9010910126

main90109-10126

9011908223

main90119-08223

9011908421

main90119-08421

9011910116

main90119-10116

9011910310

main90119-10310

9015480045

main90154-80045

9015950120

main90159-50120

9017908039

main90179-08039

9020212002

main90202-12002

9038610028

main90386-10028

9038612005

main90386-12005

9038612012

main90386-12012

9038612018

main90386-12018

9054006016

main90540-06016

9161160820

main91611-60820

9165160816

main91651-60816

9326955008

main93269-55008

9351016016

main93510-16016

9356015010

main93560-15010

9417110800

main94171-10800

9451100800

main94511-00800

9616000900

main96160-00900

58 parts on this diagram · 12 diagrams in section
