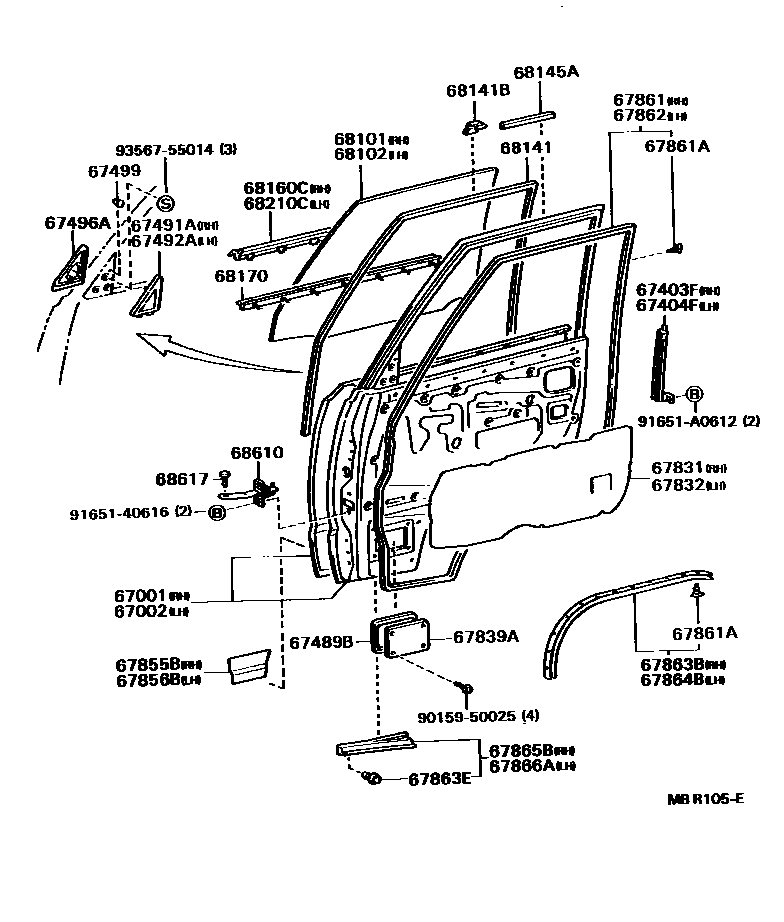

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-87017iCR2#,30,36,YR20,25..F,G,N198808-199201

main67001-87018iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

main67001-87019iCR21,30,YR20,21,30..E,Q198808-199201

main67001-87023iCR21,30,YR20,21,30..E,Q198808-199201

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-87017iCR2#,30,36,YR20,25..F,G,N198808-199201

main67002-87018iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

main67002-87019iCR21,30,YR20,21,30..E,Q198808-199201

main67002-87023iCR21,30,YR20,21,30..E,Q198808-199201

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

67489BPACKING, FRONT DOOR LOWER COVER

main67489-87001×2iCR2#,3#,KR2#,YR2#,3#198808-199201

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-87001iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

main67496-87002iCR21,30,YR20,21,30..E,G,Q198808-199201

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-32010×6iCR2#,3#,KR2#,YR2#,3#198808-199201

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-87006iCR21,30,YR20..E; YR21,30..E198908-199201

main67801-87007iCR21,30,YR21,30..Q198808-199201

main67801-87008iCR21,30,YR20,21,30..E198811-199201

main67831-87012iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-87003iCR21,30,YR20,21,30..E198808-198811

main67802-87004iCR21,30,YR21,30..Q198808-199201

main67802-87005iCR21,30,YR20,21,30..E198811-199201

main67831-87012iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER

main67839-87001×2iCR2#,3#,KR2#,YR2#,3#198808-199201

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-87005iCR2#,3#,KR2#,YR2#,3#198808-199201

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×41iCR2#,3#,KR2#,YR2#,3#198808-199201

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-87005iCR2#,3#,KR2#,YR2#,3#198808-199201

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-87005iCR2#,3#,KR2#,YR2#,3#198808-199201

67863ERETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-87503×4iCR2#,3#,KR2#,YR2#,3#198808-199201

main67868-87502×4iCR2#,3#,KR2#,YR2#,3#198808-199201

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-87005iCR2#,3#,KR2#,YR2#,3#198808-199201

67865BWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-87003iCR27,28,36,37,KR2#,YR25,28,36..B,D198808-199201

main68111-87006iCR27,36,YR25..N;CR21,28,30,YR20,21,30..D,E,F,G198808-199201

main68111-87007iCR21,30,YR20,21,30..E,G; CR21,30,YR21,30..Q198808-199201

main68111-87008iCR21,30,YR20,21,30..E,G; CR21,30,YR21,30..Q198808-199201

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-87005iCR27,28,36,37,KR2#,YR25,28,36..B,D198808-199201

main68112-87006iCR27,36,YR25..N;CR21,28,30,YR20,21,30..D,E,F,G198808-199201

main68112-87007iCR21,30,YR20,21,30..E,G; CR21,30,YR21,30..Q198808-199201

main68112-87008iCR21,30,YR20,21,30..E,G; CR21,30,YR21,30..Q198808-199201

68141RUN, FRONT DOOR GLASS

main68141-87007×2iCR21,30,YR20,21,30..E,Q; CR21,30,YR20..G198808-199201

main68141-87008×2iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,N,Q198808-199201

68141BCLIP, DOOR GLASS RUN

main62367-87001iCR21,30,YR20,21,30..E,G,Q198808-199201

68145ACUSHION, FRONT DOOR WINDOW

main68145-87001iCR21,30,YR20,21,30..E,G,Q198808-199201

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-87003iCR21,30,YR20,21,30..E,G,Q198808-199201

main68160-87004iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-87006iCR21,30,YR20,21,30..E,G,Q198808-199201

main68171-87011iCR27,28,36,37,KR26,YR25,28,36..B,D198808-198902

main68171-87013iCR21,YR20..D;CR27,36,YR25..N198808-198902

main68172-87004iCR27,28,36,37,KR26,YR25,28,36..B,D198808-198902

main68172-87006iCR21,YR20..D;CR27,36,YR25..N198808-198902

main68220-87006iCR21,30,YR20,21,30..E,G,Q198808-199201

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-87002iCR21,30,YR20,21,30..E,G,Q198808-199201

main68210-87003iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

68610CHECK ASSY, FRONT DOOR

main68610-87002×2iCR2#,3#,KR2#,YR2#,3#198808-199201

68617PIN, FRONT DOOR CHECK

main68617-90A01×2iCR2#,3#,KR2#,YR2#,3#198808-199201

9015950025

main90159-50025

9165140616

main91651-40616

91651A0612

main91651-A0612

9356755014

main93567-55014

36 parts on this diagram · 2 diagrams in section
