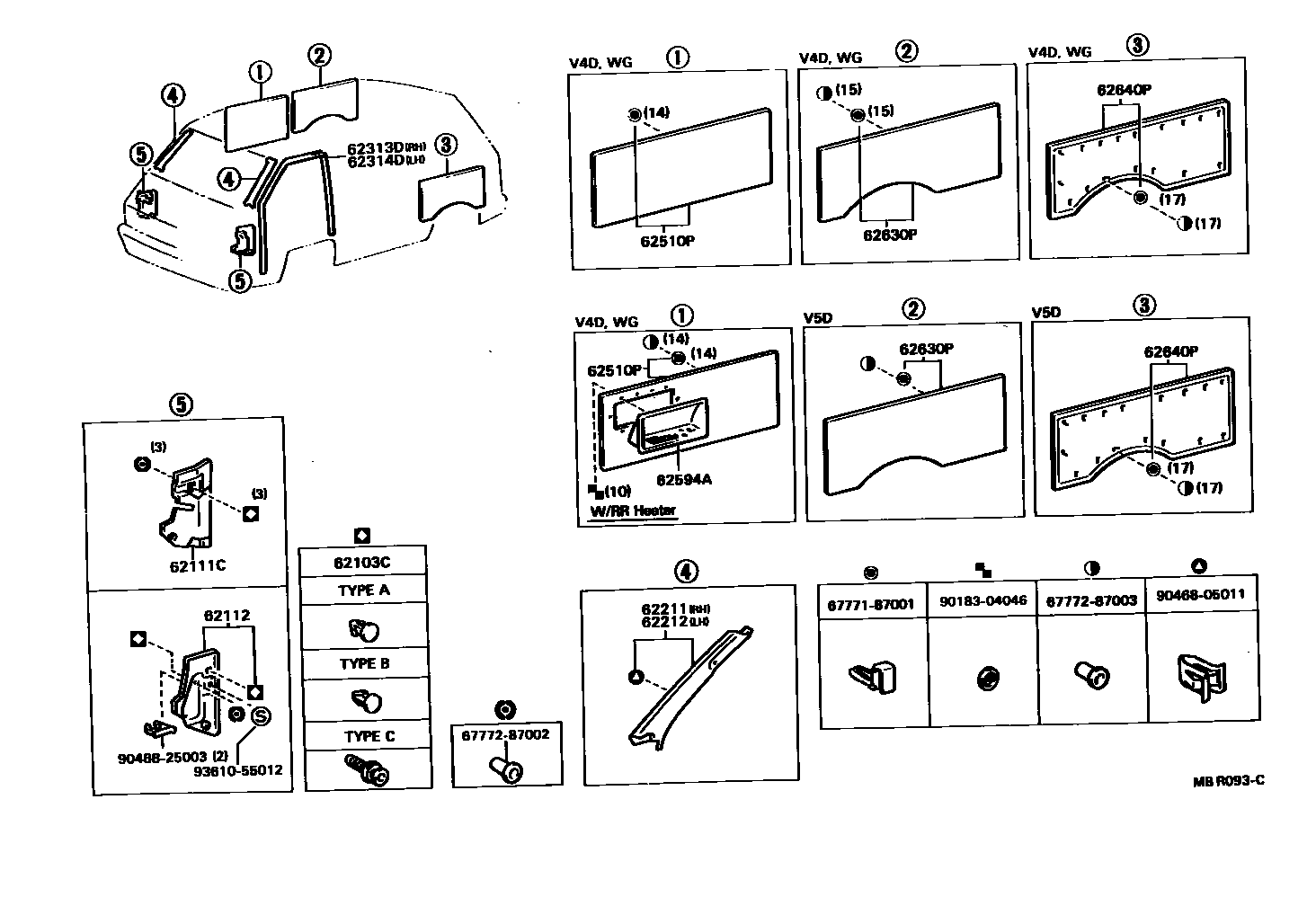

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-08038iCR2#,3#,KR2#,YR2#,3#198808-199201

main90467-08065-03×5iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

main90467-08065-16×5iCR21,30,YR20,21,30..E,G,Q198808-199201

main90467-12078-13iCR2#,3#,KR2#,YR2#,3#198808-199201

main90467-12078-56iCR21,30,YR20,21,30..E,G,Q198808-199201

62111CBOARD, COWL SIDE TRIM, RH

main62111-87006-03iKR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main62111-87006-06iYR20,21,30..07S,08S198808-199201

SABLE,TRIM4#

main62111-87007-03iCR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main62111-87007-06iCR21,30..E,G,Q198808-199201

SABLE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-87004-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main62112-87004-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-87001-03iCR30..E;CR21,YR20,21..HRF..(E,Q)198808-199201

main62210-87001-06iCR30..E;CR21,YR20,21..HRF..(E,Q)198808-199201

main62211-87005-03iCR2#,36,37,KR2#,YR20,25,28,36..B,D198908-199201

GRAY,TRIM1#

main62211-87006-03iCR36..V4D..05S;CR21,27,30,YR20,21,25,30..E,G,N198808-198908

GRAY,TRIM1#

main62211-87006-06iCR21,30,YR20,21,30..E,G198808-199201

LIGHT SABLE,TRIM4#

main62211-87007-03iCR21,30,YR21,30..Q198808-199201

GRAY,TRIM1#

main62211-87007-06iCR21,30,YR21,30..Q198808-199201

LIGHT SABLE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-87005-03iCR36..V5D;CR36..02S;CR2#,37,KR26,YR20,25,28,36..B,D198808-198908

GRAY,TRIM1#

main62212-87006-03iCR36..V4D..05S;CR21,27,30,YR20,21,25,30..E,G,N198808-198908

GRAY,TRIM1#

main62212-87006-06iCR21,30,YR20,21,30..E,G198808-199201

LIGHT SABLE,TRIM4#

main62212-87007-03iCR21,30,YR21,30..Q198808-199201

GRAY,TRIM1#

main62212-87007-06iCR21,30,YR21,30..Q198808-199201

main62220-87001-03iCR30..E;CR21,YR20,21..HRF..(E,Q)198808-199201

main62220-87001-06iCR30..E;CR21,YR20,21..HRF..(E,Q)198808-199201

62313DTRIM, FRONT DOOR OPENING, RH

main62313-87003-06iCR21,30,YR20,21,30..E,G,Q198808-198901

LIGHT SABLE,TRIM4#

main62313-87003-23iCR2#,3#,KR26,YR2#,3#198808-198901

GRAY,TRIM1#

main62313-87004-03iCR2#,3#,KR2#,YR2#,3#198901-199201

GRAY,TRIM1#

main62313-87004-06iCR21,30,YR20,21,30..E,G,Q198901-199201

LIGHT SABLE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-87003-06iCR21,30,YR20,21,30..E,G,Q198808-198901

LIGHT SABLE,TRIM4#

main62313-87003-23iCR2#,3#,KR26,YR2#,3#198808-198901

GRAY,TRIM1#

main62313-87004-03iCR2#,3#,KR2#,YR2#,3#198901-199201

GRAY,TRIM1#

main62313-87004-06iCR21,30,YR20,21,30..E,G,Q198901-199201

LIGHT SABLE,TRIM4#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62507-28030-42iCR21,30,YR20,21,30..E199010-199201

LIGHT SABLE,TRIM4#

main62507-28030-S3iCR21,30,YR20,21,30..E199010-199201

GRAY,TRIM1#

main62507-28040-B0iCR21,30,YR21,30..Q199010-199201

GRAY,TRIM1#

main62507-28040-E0iCR21,30,YR21,30..Q199010-199201

LIGHT SABLE,TRIM4#

main62507-28050-42iCR21,30,YR20..G199010-199201

LIGHT SABLE,TRIM4#

main62507-28050-S3iCR21,30,YR20..G199010-199201

GRAY,TRIM1#

main62507-87003-03iCR21,30,YR20,21,30..E198808-199010

SHADOW GRAY,TRIM1#

main62507-87003-06iCR21,30,YR20,21,30..E198808-199010

SABLE,TRIM4#

main62507-87004-03iCR21,30,YR21,30..Q198808-199010

SHADOW GRAY,TRIM1#

main62507-87004-06iCR21,30,YR21,30..Q198808-199010

SABLE,TRIM4#

main62507-87005-03iCR21,30,YR20..G198808-199010

SHADOW GRAY,TRIM1#

main62507-87005-06iCR21,30,YR20..G198808-199010

SABLE,TRIM4#

main62510-87017-03iCR21,YR20..D198808-199201

GRAY,TRIM1#

main62510-87018-03iYR20..D198808-199201

main62510-87024-03iCR27,36,KR2#,YR25..V4D198808-199201

GRAY,TRIM1#

main62510-87028-03iYR25..V4D..N198808-199201

main62510-87042-03iCR28,37198808-199201

main62510-87044-03iCR28,37,YR28,36198808-199201

GRAY,TRIM1#

62594APOCKET, QUARTER TRIM, NO.1

main62594-87003-03iYR25..V4D..N;CR27,36..V4D..05S;CR21,28,37,YR20,28,36..B,D,F198808-199201

SHADOW GRAY,TRIM1#

main62594-87006-03iCR21,30,YR20,21,30..E,G,Q198808-199201

SHADOW GRAY,TRIM1#

main62594-87006-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-87022-03iCR28,37,YR28,36;CR27,36,KR2#,YR25..V4D198808-199201

GRAY,TRIM1#

main62630-87023-03iCR27,36,KR2#,YR25..V5D198808-199201

GRAY,TRIM1#

main62630-87042-03iCR21,YR20..D198808-199201

GRAY,TRIM1#

sub62630-87016

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62508-87001-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main62508-87001-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main62508-87002-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main62508-87002-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main62508-87004-03iCR21,30,YR20..G198808-199201

SHADOW GRAY,TRIM1#

main62508-87004-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main62640-87030-03iCR27,28,36,37,KR2#,YR25,28,36198808-199201

GRAY,TRIM1#

main62640-87048-03iCR21,YR20..D198808-199201

GRAY,TRIM1#

6777187001WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-87001

6777287002WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87002

6777287003WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87003

9018304046

main90183-04046

9046805011

main90468-05011

9046825003

main90468-25003

9361055012

main93610-55012

18 parts on this diagram · 6 diagrams in section
