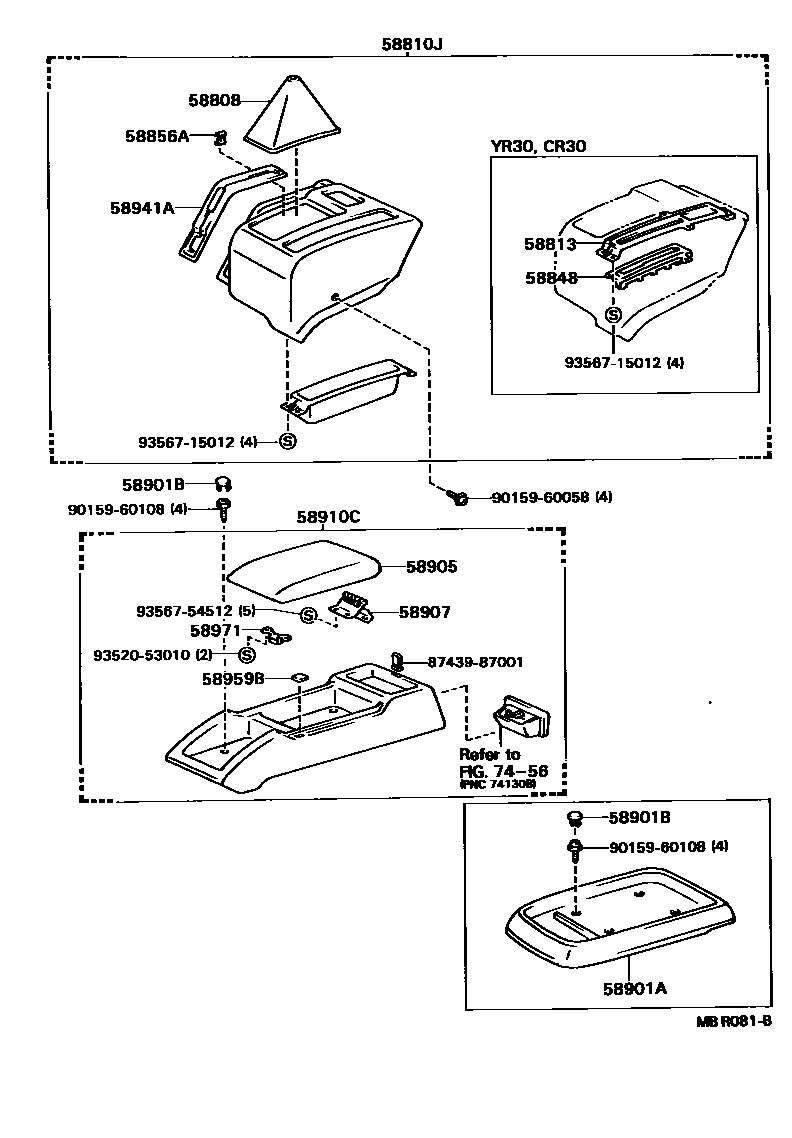

CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-87002-03iCR2#,3#,YR20,21,25,3#..5F198808-199201

SHADOW GRAY,TRIM1#

main58808-87002-16iCR21,30,YR20,21,30..5F..(E,G,Q)198808-199201

SABLE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-87020-03iCR21,YR20,21..4FC198808-199201

SHADOW GRAY,TRIM1#

main58810-87020-06iCR21,YR20,21..4FC198808-199201

SABLE,TRIM4#

main58810-87029-03iCR30,YR30..4FC198808-199201

SHADOW GRAY,TRIM1#

main58810-87029-06iCR30,YR30..4FC198808-199201

SABLE,TRIM4#

main58810-87030-03iCR21,YR20,21..5F..(E,G,Q)198808-199201

SHADOW GRAY,TRIM1#

main58810-87030-06iCR21,YR20,21..5F..(E,G,Q)198808-199201

SABLE,TRIM4#

main58810-87031-03iCR30,YR30..5F198808-199201

SHADOW GRAY,TRIM1#

main58810-87031-06iCR30,YR30..5F198808-199201

SABLE,TRIM4#

main58810-87032-03iCR21,YR20,21..HRF..4FC198808-199201

main58810-87032-06iCR21,YR21..4FC..Q198808-199201

main58810-87033-03iCR21,YR21..5F..Q198808-199201

main58810-87033-06iCR21,YR20,21..HRF..5F..(E,Q)198808-199201

main58810-87034-03iCR30..4FC..E198808-199201

main58810-87034-06iYR30..4FC;CR30..4FC..Q198808-199201

main58810-87035-03iYR30..5F;CR30..5F..Q198808-199201

main58810-87035-06iYR30..5F;CR30..5F..Q198808-199201

main58810-87036-03iCR27,28,YR25,28..4FC198808-199201

SHADOW GRAY,TRIM1#

main58810-87037-03iCR2#,YR25..5F..(B,D,N)198808-199201

SHADOW GRAY,TRIM1#

main58810-87038-03iCR36,37,YR36..5F198808-199201

SHADOW GRAY,TRIM1#

main58810-87039-03iCR36,YR36..4FC198808-199201

SHADOW GRAY,TRIM1#

58813BOX, CONSOLE, UPPER

main58813-87003-03iCR30,YR30198808-199201

SHADOW GRAY,TRIM1#

main58813-87003-06iCR30,YR30198808-199201

SABLE,TRIM4#

58848COVER, SHIFT LEVER HOLE

main58848-87004-03iCR30,YR30198808-199201

SHADOW GRAY,TRIM1#

main58848-87004-06iCR30,YR30198808-199201

SABLE,TRIM4#

58856AHOLDER, CONSOLE BOX

main58856-28010iCR2#,3#,YR20,21,25,3#..5F198808-199201

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-87001-03iCR2#,36,37,YR25,28,36..(4FC,5F)..(B,D,F,N)198808-199201

SHADOW GRAY,TRIM1#

58901BPLUG, HOLE(FOR REAR CONSOLE BOX)

main90950-01541-03iCR2#,3#,YR2#,3#..4FC,5F198808-199201

SHADOW GRAY,TRIM1#

sub90950-01541

main90950-01541-16iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

sub90950-01541

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-87002-03iCR21,30,YR20,21,30..E,G,Q198808-199201

SHADOW GRAY,TRIM1#

main58951-87002-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-87002iCR21,30,YR20,21,30..E,G,Q198808-199201

58910CBOX ASSY, CONSOLE, REAR

main58910-87001-03iCR21,30,YR20,21,30..E,G,Q198808-199201

SHADOW GRAY,TRIM1#

sub58910-28010

main58910-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

sub58910-28010

58941ACOVER, PARKING BRAKE HOLE

main58941-87010-01iCR21,30,YR20,21,30..E,G,Q198808-199201

BLACK,TRIM1#,4#

sub58941-87010

main58941-87010-01iCR21,30,YR20,21,30..E,G,Q198808-199201

BLACK,TRIM1#

sub58941-87010

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iCR21,30,YR20,21,30..E,G,Q198808-199201

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-87003iCR21,30,YR20,21,30..E,G,Q198808-199201

7456

8743987001

main87439-87001

9015960058

main90159-60058

9015960108

main90159-60108

9352053010

main93520-53010

9356715012

main93567-15012

9356754512

main93567-54512

20 parts on this diagram · 1 diagram in section
