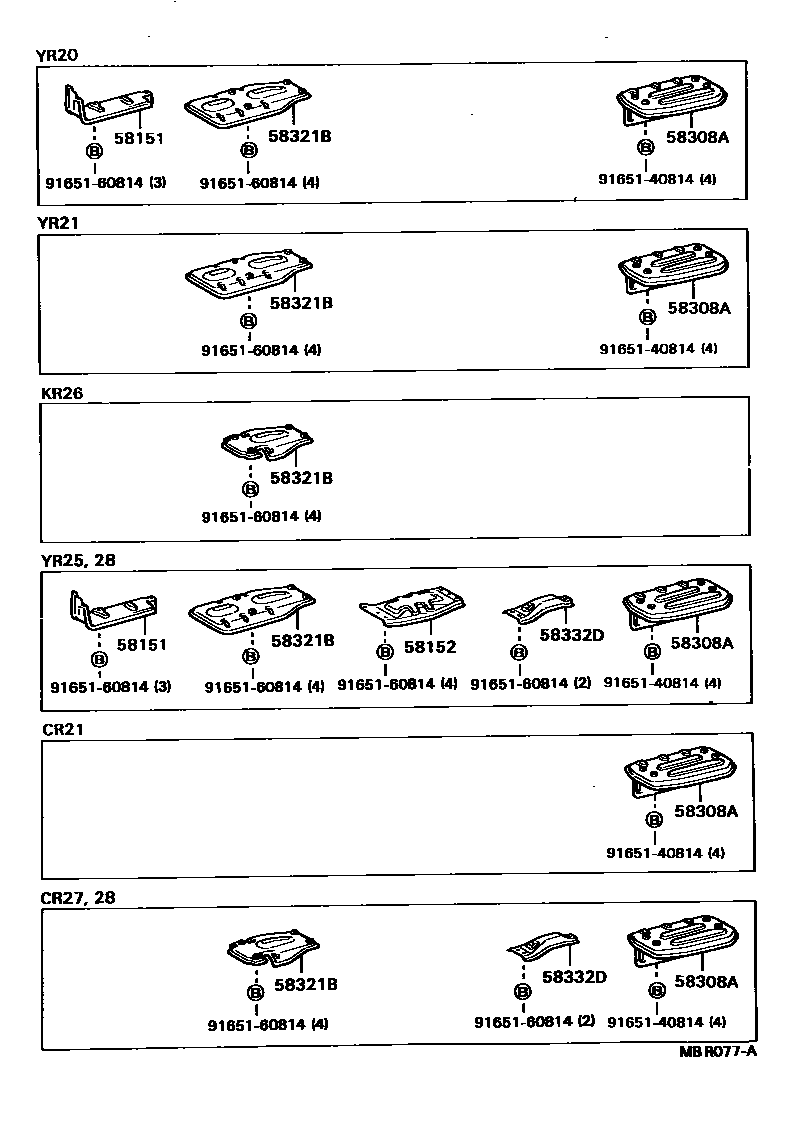

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-28010iYR20,25,28198808-199201

main58151-87001iKR27199008-199201

main58151-95D00iYR3#..B,E198808-199201

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-87001iYR25,28198808-199201

main58152-87002iYR36198810-199201

main58152-95D00iYR36198808-198810

58308APANEL SUB-ASSY, HEAT PROOF

main58308-87002iCR2#,3#,KR27,YR2#,3#198808-199201

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-87004iKR27,YR2#198808-199201

main58321-87006iCR27,28,KR26198808-199201

main58321-95D00iCR36,37,YR3#198808-199201

58332DINSULATOR, REAR FLOOR HEAT, NO.3

main58332-87001iCR27,28,KR27,YR25,28198808-199201

9165140814

main91651-40814

9165160814

main91651-60814

7 parts on this diagram · 3 diagrams in section
