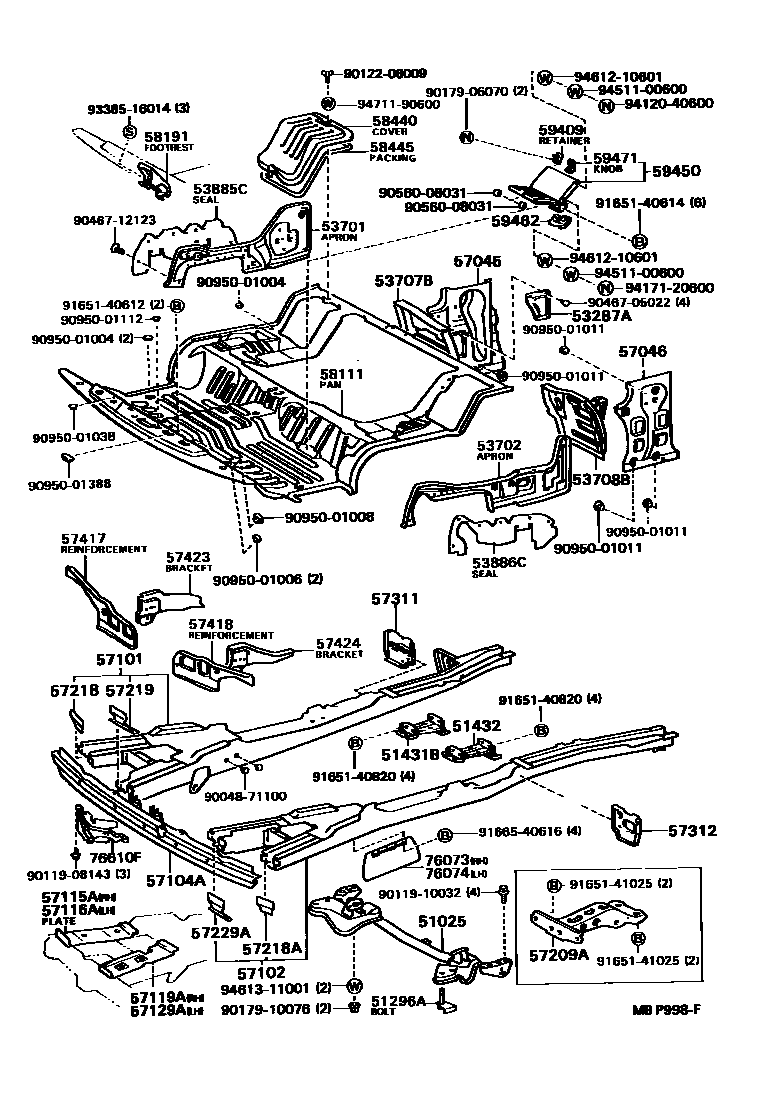

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-87008iKR2#198808-199201

main51025-87009iYR2#198808-198903

main51025-87010iCR2#198808-199201

main51025-87014iYR2#198903-199201

main51025-95D01iCR3#198808-199201

main51025-95D03iYR3#198808-199201

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-87001iCR2#,KR2#,YR2#; CR3#,YR3#198808-199201

main51296-87002iCR2#,KR2#,YR2#; CR3#,YR3#198808-199201

51431BBRACKET, ENGINE REAR MOUNTING

main51431-87002iYR25..HRF..D;YR25..HRF..5F;YR25..SRF..MTM;CR2#,KR2#,YR20,21,28..MTM198808-199201

51432BRACKET, ENGINE REAR MOUNTING, LH

main51432-87002iYR25..HRF..D;YR25..HRF..5F;YR25..SRF..MTM;CR2#,KR2#,YR20,21,28..MTM198808-199201

53287ACOVER, COOLER PIPE HOLE

main53287-87001iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-87012iCR2#,3#,YR2#,3#..4FC,5F198808-199201

main53701-87014iKR2#,YR20,25,28..MTM..(B,D)198808-199201

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-87013iCR2#,3#,KR2#,YR2#,3#198808-199201

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-87005iCR27,36..V4D..SRF..5F..05S..D; YR25..V4D..N;CR27..V4D..4FC;CR27..SRF..5F..N;CR28,37,YR28,36..B;CR27..V4D..HRF..5F;CR36..V4D..HRF..05S198910-199201

main53707-87008iKR2#,YR25,28,36198808-199201

main53707-87009iCR28,37;CR27,36..V4D198808-199201

main53707-87010iCR27,28,36,37198808-199201

main53707-87012iCR27..02S; CR27..V4D..SRF..5F..05S..D; CR36..SRF..5F198910-199201

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-87009iKR27,YR20,25,28198808-199201

main53708-87010iYR21,3#198808-199201

main53708-87011iCR27,36,KR26198808-199201

main53708-87012iCR21,28,30,37198808-199201

53885CSEAL, FENDER APRON MUDGUARD, RH

main53885-87004iCR2#,KR2#,YR2#198808-199201

main53885-87005iCR3#,YR3#198808-199201

53886CSEAL, FENDER APRON MUDGUARD, LH

main53886-87002iCR2#,KR2#,YR2#198808-199201

main53886-87003iCR3#,YR3#198808-199201

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-87006iCR21,30,YR20,21,30; YR25..V4D..N;CR28,37,YR28,36;CR27,36..V4D..05S198808-199201

main57045-87007iCR27,36,KR2#,YR25..V5D198808-199201

main57045-87008iCR28,37,YR28,36;CR27,36,KR2#,YR25..V4D198808-199201

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-87002iYR21,3#198808-199201

main57046-87003iCR2#,3#,KR2#,YR20,25,28198808-199201

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-87021iCR21; CR28198808-199201

main57101-87023iCR28198808-199201

main57101-87050iCR28198808-199201

main57101-87051iYR20,21; YR28;YR25..V4D..N;CR27..V4D..05S198808-199201

main57101-87053iCR27..02S; YR28;CR27,KR2#,YR25..V4D198808-199201

main57101-87054iCR27..V4D198808-199201

main57101-87055iCR27,KR2#,YR25..V5D198808-199201

main57101-87056iCR30198808-199201

main57101-87057iCR37198808-199201

main57101-87058iCR36,YR3#198808-199201

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-87014iCR2#198808-199201

main57102-87022iKR2#,YR2#198808-199201

main57102-87024iCR3#,YR3#198808-199201

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-87013iCR2#,3#,KR2#,YR2#,3#198808-199201

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-87004iCR2#,3#,KR2#,YR2#,3#198808-199201

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-87004iCR2#,3#,KR2#,YR2#,3#198808-199201

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-87001iCR2#..4FC198808-199201

main57209-95D00iCR3#198808-199201

main57209-95D01iYR3#198808-199201

main57255-87008iYR25..SRF..05S..D;YR2#..4FC..(B,E,G,N,Q)198808-199201

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57218AGUSSET, FRONT SIDE MEMBER, NO.1 LH

main57218-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57229AGUSSET, FRONT SIDE MEMBER, NO.2 LH

main57219-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57311OUTRIGGER, NO.1 RH

main57301-87006iCR27,36,KR2#,YR25..V5D198808-199201

main57301-87008iCR28198808-199201

main57301-87010iCR37;CR36..V4D..5F..05S; YR36198811-199201

main57301-95D00iCR36..SRF..5F; CR37,YR36;CR36..V4D198808-199201

57312OUTRIGGER, NO.1 LH

main57312-87009iCR2#,3#198808-199201

main57312-87010iKR2#,YR2#,3#198808-199201

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

58111PAN, FRONT FLOOR

main58111-87034iYR20,21,30..E198808-198904

main58111-87036iCR27,36,YR20,25,28,36..(4FC,5F)..(B,D,G,N)198808-199201

main58111-87038iYR21,30..Q198808-199201

main58111-87040iKR2#,YR20,25,28..MTM..(B,D)198808-199201

main58111-87042iCR21,28,30,37..5F..(B,D,G)198808-199201

main58111-87043iCR21,30..5F..E198808-199201

main58111-87048iCR21,28..4FC..(B,F,G)198808-199201

main58111-87049iCR21,30..4FC..E198808-199201

main58111-87052iCR21,30..5F..Q198808-199201

main58111-87053iCR21,30..4FC..Q198808-199201

main58111-87054iYR20,21,30..E198904-199201

58191FOOTREST, FRONT FLOOR

main58191-87001iCR21,30,YR20,21,30..E,Q198808-198904

main58191-87002iCR21,30,YR20,21,30..E,Q198904-199201

58440COVER ASSY, BATTERY SERVICE HOLE

main58207-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

main58207-87006iCR27..02S; CR27..V4D..SRF..5F..05S..D; CR36..SRF..5F198910-199201

58445PACKING, BATTERY SERVICE HOLE COVER

main58459-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

59409RETAINER SUB-ASSY, FOOTREST NO.2, LH

main59409-87002iCR21,30,YR21,30..Q198808-199201

59450REST ASSY, FRONT FLOOR FOOT, NO.2

main59450-87001-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main59450-87001-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

59462RETAINER, FRONT FLOOR FOOTREST NO.2 STAY

main59462-87001iCR21,30,YR21,30..Q198808-199201

59471KNOB, FRONT FLOOR FOOTREST NO.2 CONTROL

main59471-87001-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main59471-87001-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH

main76073-95D00iCR3#,YR3#198808-199201

76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH

main76073-95D00iCR3#,YR3#198808-199201

76610FPROTECTOR ASSY, STEERING MAIN SHAFT, RH

main76610-95D00iCR3#,YR3#198808-199201

9004871100

main90048-71100

9011908143

main90119-08143

9011910032

main90119-10032

9012206009

main90122-06009

9017906070

main90179-06070

9017910076

main90179-10076

9046705022

main90467-05022

9046712123

main90467-12123

9056008031

main90560-08031

9095001004

main90950-01004

9095001006

main90950-01006

9095001008

main90950-01008

9095001011

main90950-01011

9095001038

main90950-01038

9095001112

main90950-01112

9095001388

main90950-01388

9165140612

main91651-40612

9165140614

main91651-40614

9165140820

main91651-40820

9165141025

main91651-41025

9166540616

main91665-40616

9338516014

main93385-16014

9412040600

main94120-40600

9417120600

main94171-20600

9451100600

main94511-00600

9461210601

main94612-10601

9461311001

main94613-11001

9471190600

main94711-90600

70 parts on this diagram · 3 diagrams in section
