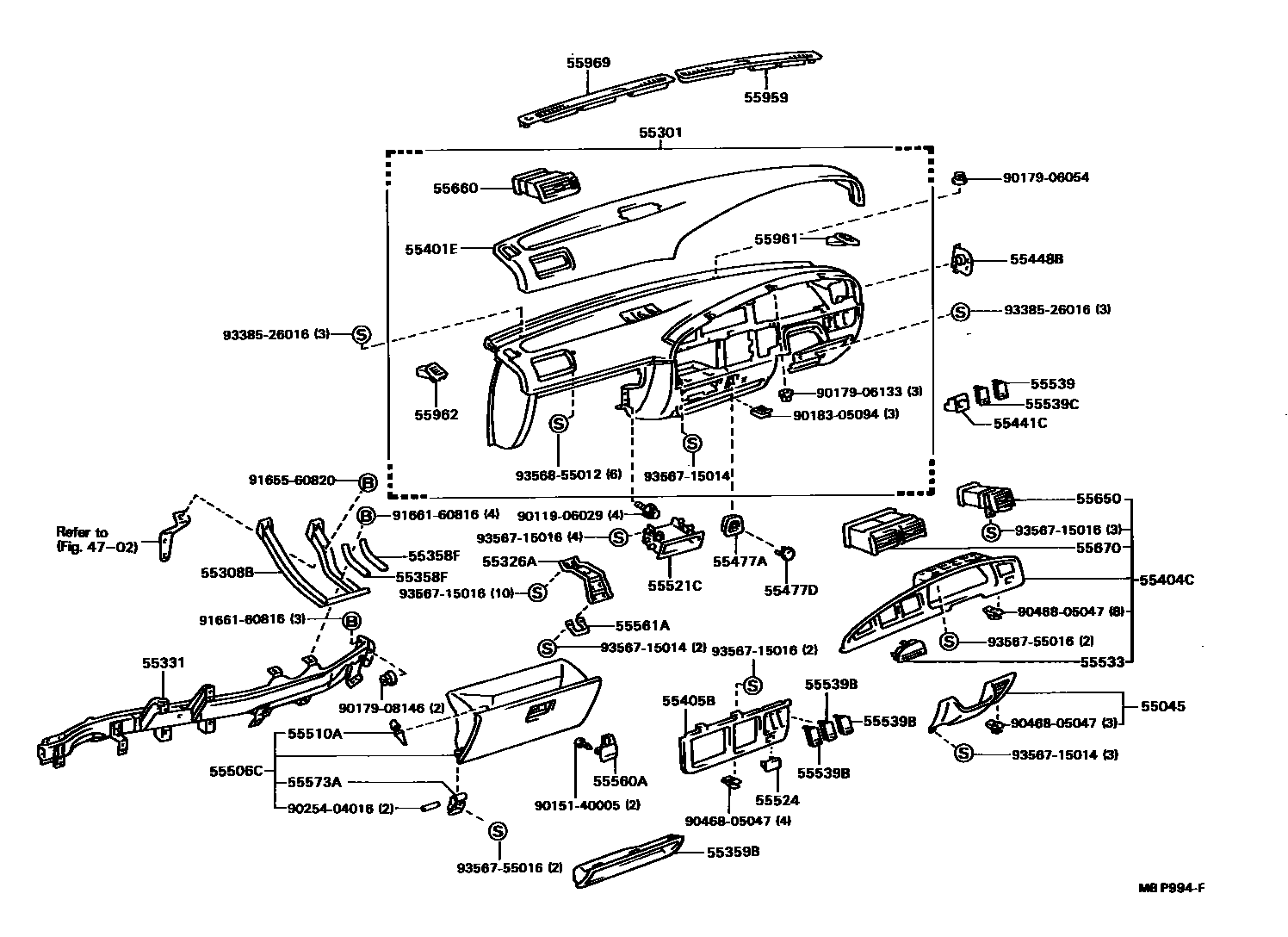

INSTRUMENT PANEL & GLOVE COMPARTMENT

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-87001-03iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

SHADOW GRAY,TRIM1#

main55045-87001-06iCR21,YR20..G198808-199201

SABLE,TRIM4#

main55045-87002-03iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N,Q)198808-199201

main55045-87002-06iCR21,YR20..G; YR20..E;CR21,30,YR21,30..HRF198808-199201

55301PANEL SUB-ASSY, INSTRUMENT

main55301-87007-03iCR30,YR30..08S;CR2#,36,37,KR2#,YR2#,36198808-199201

SHADOW GRAY,TRIM1#

main55301-87007-06iCR30,YR30..08S;CR21,YR20,21..E,G,Q198808-199201

SABLE,TRIM4#

main55301-87008-03iCR30,YR30..Q198808-199201

SHADOW GRAY,TRIM1#

main55301-87008-06iCR30,YR30..Q198808-199201

SABLE,TRIM4#

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-87005iCR2#,3#,KR2#,YR2#,3#198808-199201

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

55358FPROTECTOR, EDGE

main55358-28010×2iCR2#,3#,KR2#,YR2#,3#198808-199201

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55359-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-87004-03iCR30,YR30..08S;CR2#,36,37,KR2#,YR2#,36198808-199201

SHADOW GRAY,TRIM1#

main55401-87004-06iCR30,YR30..08S;CR21,YR20,21..E,G,Q198808-199201

SABLE,TRIM4#

main55401-87005-03iCR30,YR30..Q198808-199201

SHADOW GRAY,TRIM1#

main55401-87005-06iCR30,YR30..Q198808-199201

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-87025-03iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

SHADOW GRAY,TRIM1#

main55404-87025-06iCR21,YR20..G198808-199201

SABLE,TRIM4#

main55404-87026-03iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N,Q)198808-199201

main55404-87026-06iCR21,YR20..G; YR20..E;CR21,30,YR21,30..HRF198808-199201

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-87011iCR2#,3#,KR2#,YR2#,3#198808-199201

55441CBOX, INSTRUMENT PANEL COIN

main58824-87003iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-87003-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55448-87003-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iCR21,30,YR20..G; YR25..V4D..N;CR27,36..V4D..05S;CR21,28,37,YR20,28,36..B,D198808-199201

BLACK,TRIM1#; BLACK,TRIM1#,4#

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-87007-03iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

SHADOW GRAY,TRIM1#

main55506-87007-06iCR21,30,YR20,21,30..E,G198808-199201

SABLE,TRIM4#

main55506-87008-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main55506-87008-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iCR2#,3#,KR2#,YR2#,3#198808-199201

55521CCOVER, STEREO OPENING

main55521-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

55524COVER, SWITCH BACE HOLE

main55524-87001iCR2#,KR2#,YR2#198808-199201

55533COVER, AUTO CLOCK HOLE

main55533-87003-03iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N199007-199201

SHADOW GRAY,TRIM1#

main55533-87003-06iCR21,YR20..G198808-199201

SABLE,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-87006iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55537-87001iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

55539CCOVER, SPARE SWITCH HOLE

main55539-87006iKR2#,YR2#,3#198808-199201

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-03iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

SHADOW GRAY,TRIM1#

main55560-16040-06iCR21,30,YR20,21,30..E,G198808-199201

SABLE,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-87002×2iCR2#,3#,KR2#,YR2#,3#198808-199201

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-87004-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55650-87004-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-87004-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55660-87004-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-87004-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55670-87004-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55098-87002-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55098-87002-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55961-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55962-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55099-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main55099-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

9011906029

main90119-06029

9015140005

main90151-40005

9017906054

main90179-06054

9017906133

main90179-06133

9017908146

main90179-08146

9018305094

main90183-05094

9025404016

main90254-04016

9046805047

main90468-05047

9165560820

main91655-60820

9166160816

main91661-60816

9338526016

main93385-26016

9356715014

main93567-15014

9356715016

main93567-15016

9356755016

main93567-55016

9356855012

main93568-55012

48 parts on this diagram · 1 diagram in section
