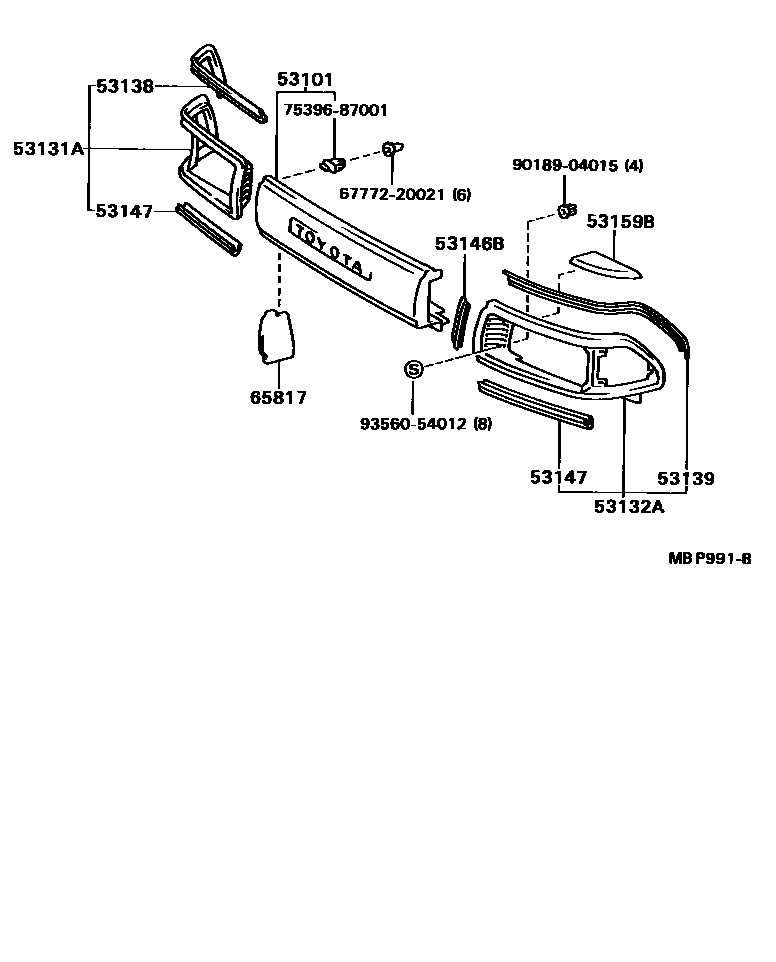

RADIATOR GRILLE

0001 1 0002 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-87015iCR21,28,30,37,YR20,21,28,3#198808-199201

main53101-87016-08iCR27,36,KR2#,YR25198808-199201

WHITE,045

main53101-87016-09iCR27,36,KR2#,YR25198808-199201

PEARL YELLOW,557

main53101-87017iCR21,28,30,37,YR20,28,36..B,D,F,G198808-199201

53131ADOOR, HEADLAMP, RH

main53031-87022-08iCR27,36,KR2#,YR25198808-199201

WHITE,045

main53031-87022-09iCR27,36,KR2#,YR25198808-199201

PALE YELLOW,557

53132ADOOR, HEADLAMP, LH

main53032-87022-08iCR27,36,KR2#,YR25198808-199201

WHITE,045

main53032-87022-09iCR27,36,KR2#,YR25198808-199201

PALE YELLOW,557

53138PROTECTOR, HEADLAMP DOOR, RH

main53139-87009iCR27,36,KR2#,YR25198808-199201

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-87009iCR27,36,KR2#,YR25198808-199201

53146BPROTECTOR, HEADLAMP DOOR, SIDE LH

main53146-87009iCR27,36,KR2#,YR25198808-199201

53147WEATHERSTRIP, HEADLAMP ORNAMENT, NO.1

main53147-87009×2iCR27,36,KR2#,YR25198808-199201

sub53147-87001

53159BPAD, HEADLAMP DOOR, LH

main53159-87006iCR27,36,KR2#,YR25198808-199201

65817PAD, COVER TOP PANEL END

main65817-87002iCR27,36,KR2#,YR25198808-199201

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

7539687001CLIP, OUTSIDE MOULDING, NO.2

main75396-87001

9018904015

main90189-04015

9356054012

main93560-54012

13 parts on this diagram · 2 diagrams in section
