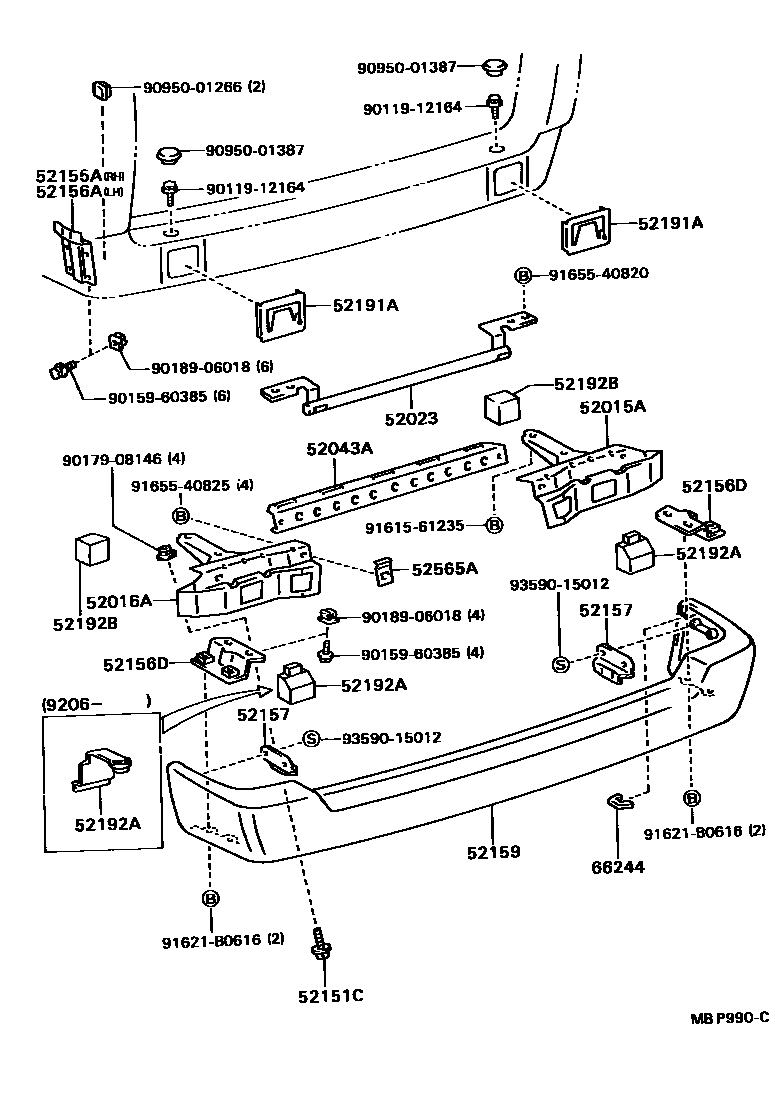

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-87004iCR21,30,YR20,21,30198808-199201

main52015-87005iCR27,28,36,37,KR2#,YR25,28,36198808-199201

main52015-87006iCR21,30,YR20,21,30198810-199201

main52015-87007iCR37,YR28,36;CR27,28,36,KR2#,YR25..D,F,N198810-199201

main52015-87008iCR28..B198810-199201

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-87006iCR21,30,YR20,21,30198808-199201

main52016-87007iCR27,28,36,37,KR2#,YR25,28,36198808-199201

main52016-87008iCR21,30,YR20,21,30198810-199201

main52016-87009iCR37,YR28,36;CR27,28,36,KR2#,YR25..D,F,N198810-199201

main52016-87010iCR28..B198810-199201

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-87002iCR28..B198808-199201

52043AREINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2

main52043-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08061×4iCR2#,3#,KR26,YR2#,3#198808-198810

main90112-08071×4iCR2#,3#,KR2#,YR2#,3#198810-199201

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

52156DSUPPORT, REAR BUMPER SIDE, LWR

main52156-87002×2iCR2#,3#,KR2#,YR2#,3#198808-199201

52157SUPPORT, REAR BUMPER SIDE, NO.2

main52157-87001×2iCR2#,3#,KR2#,YR2#,3#198808-199201

52159COVER, REAR BUMPER

main52159-87005iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

main52159-87006-02iCR21,30,YR20,21,30..E,Q198808-199201

RED MICA,3H4

main52159-87006-03iCR21,30,YR21,30..E198912-199001

main52159-87006-04iCR21,30,YR20,21,30..E,Q198808-199201

LIGHT BLUE M.,8D8

main52159-87006-06iCR21,30,YR21,30..E198903-199001

main52159-87006-08iCR21,30,YR20,21,30..E,Q198908-199201

WHITE,045

main52159-87006-13iCR21,30,YR20,21,30..E,Q198808-199201

GRAY M.,168 ,20L

main52159-87006-16iCR21,30,YR20,21,30..E,Q198808-199201

L. REDDISH BROWN M.,4K7

main52159-87008iCR21,30,YR21,30..E198903-198903

main52159-87010iCR21,30,YR21,30..E198909-198910

52191ASEAL, REAR BUMPER ARM

main52191-87004×2iCR2#,3#,KR2#,YR2#,3#198808-199201

main52191-87007×2iCR21,30,YR20,21,30198810-199201

main52191-87008×2iCR27,28,36,37,KR2#,YR25,28,36198810-199201

52192ASEAL, REAR BUMPER ARM

main52192-87003×2iCR27,28,36,37,KR26,YR25,28,36198808-198906

main52192-87005×2iCR27,28,36,37,KR2#,YR25,28,36198906-199201

52192BSEAL, REAR BUMPER ARM

main52192-87004×2iCR21,30,YR20,21,30198810-199201

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040×4iCR2#,3#,KR2#,YR2#,3#198808-199201

66244PROTECTOR, REAR BODY, NO.2

main66244-87001×4iCR2#,3#,KR26,YR2#,3#198808-198908

9011912164

main90119-12164

9015960385

main90159-60385

9017908146

main90179-08146

9018906018

main90189-06018

9095001266

main90950-01266

9095001387

main90950-01387

9161561235

main91615-61235

91621B0616

main91621-B0616

9165540820

main91655-40820

9165540825

main91655-40825

9359015012

main93590-15012

26 parts on this diagram · 1 diagram in section
