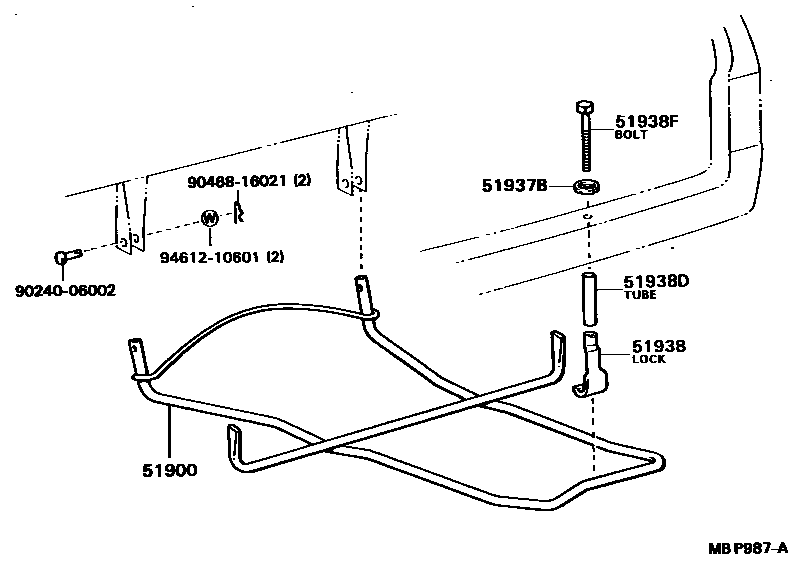

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28021iCR21,YR20,21198808-199201

main51900-28030iCR27,28,36,37,KR2#,YR25,28,36198808-199201

main51900-28050iCR30,YR30198808-199201

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iCR2#,3#,KR2#,YR2#,3#198808-199201

51938LOCK, SPARE WHEEL CARRIER

main51938-28030iCR2#,3#,KR2#,YR2#,3#198808-199201

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17032iCR30,YR30198808-199201

main90440-17033iCR21,28,YR20,21..B,E,F198808-199201

main90440-17034iCR21,YR20..D,G199010-199201

main90440-17036iCR30,YR30198808-199201

main90440-17037iCR36,37,YR36198808-199201

main90440-17038iCR21,YR20,21..E; CR21,YR21..Q198808-199201

main90440-17058iCR27,KR27,YR25,28199010-199201

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iCR21,YR20,21..E; CR21,YR21..Q198808-199201

main90101-12094iCR30,YR30198808-199201

main90101-12097iCR21,27,KR2#,YR20,25,28..B,D,G,N198808-199010

main90101-12101iCR21,28,YR20,21..B,E,F198808-199201

main90101-12124iCR36,37,YR36198808-199201

main90101-12125iCR30,YR30198808-199201

main90101-12174iCR27,KR27,YR25,28199010-199201

9024006002

main90240-06002

9046816021

main90468-16021

9461210601

main94612-10601

8 parts on this diagram · 1 diagram in section
