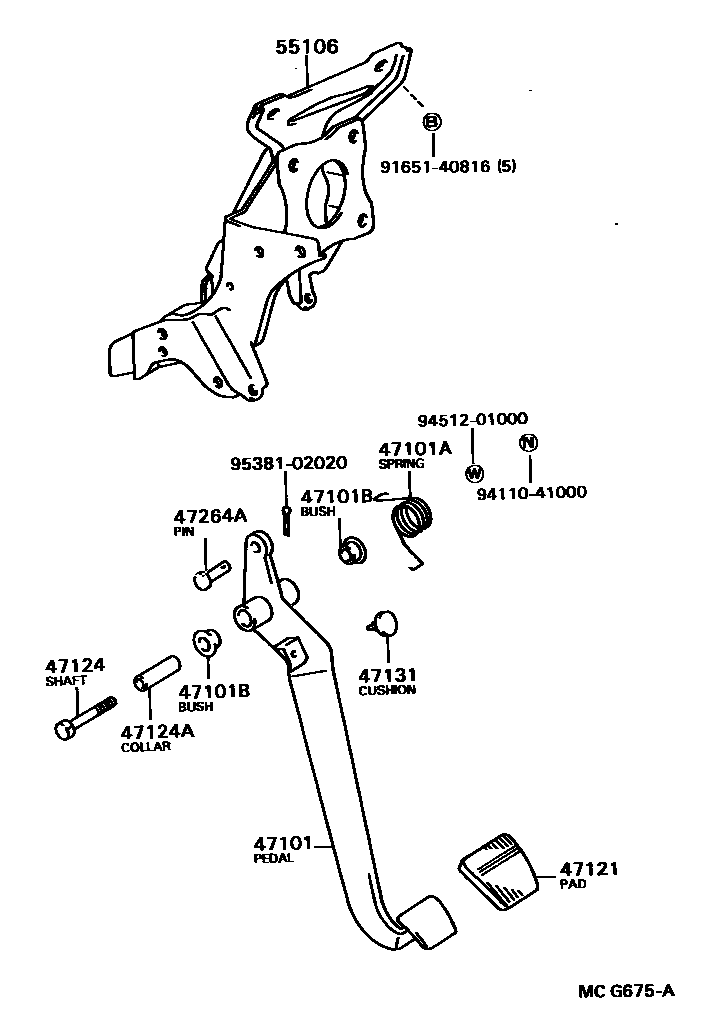

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-28070iCR2#,3#,KR2#,YR2#,3#198808-199201

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35131iCR2#,3#,KR2#,YR2#,3#198808-199201

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iCR2#,3#,KR2#,YR2#,3#198808-199201

47121PAD, BRAKE PEDAL

main31321-14020iCR2#,3#,KR2#,YR2#,3#198808-199201

47124SHAFT, BRAKE PEDAL

main90101-10176iCR2#,3#,KR2#,YR2#,3#198910-199201

main91121-51070iCR2#,3#,KR26,YR2#,3#198808-198910

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iCR2#,3#,KR2#,YR2#,3#198808-199201

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iCR2#,3#,KR26,YR2#,3#198808-199007

main90541-06036iCR2#,3#,KR2#,YR2#,3#199007-199201

47264APIN(FOR PUSH ROD)

main90240-08070iCR2#,3#,KR2#,YR2#,3#198808-199201

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-87010iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

main55106-87011iCR2#,30,36,YR2#,3#..4FC198808-199201

main55106-87012iKR26198808-199008

9165140816

main91651-40816

9411041000

main94110-41000

9451201000

main94512-01000

9538102020

main95381-02020

13 parts on this diagram · 1 diagram in section
