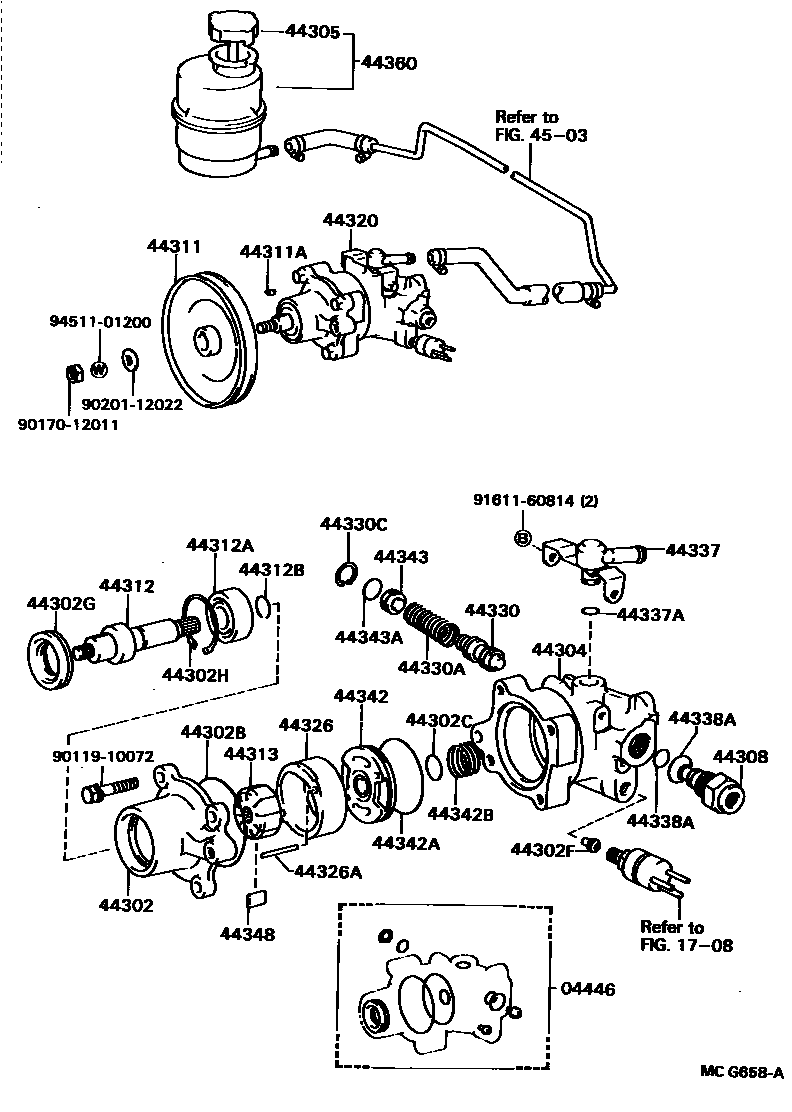

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-14010iYR2#,3#198808-199201

sub04446-14040

main04446-27020iCR2#,3#199008-199201

main04446-30030iCR2#,3#198808-199008

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYR2#,3#198808-199201

main44302-28020iCR2#,3#199008-199201

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iCR2#,3#,YR2#,3#198808-199201

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iCR2#,3#,YR2#,3#198808-199201

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iYR2#,3#198808-199201

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iCR2#,3#199008-199201

main90311-24001iCR2#,3#,YR2#,3#198808-199201

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iCR2#,3#,YR2#,3#198808-199201

main90521-51003iCR2#,3#199008-199201

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iYR2#,3#198808-199201

main44304-28021iCR2#,3#198808-199201

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iCR2#,3#,YR21,3#199110-199201

sub44305-22060

main44305-28010iYR20,25,28198808-199201

sub44305-22030

main44305-30020iCR2#,3#,YR21,3#198808-199110

sub44305-22040

44308UNION SUB-ASSY, PRESSURE PORT

main44308-14041iCR2#,3#,YR2#,3#198808-199201

44311PULLEY, VANE PUMP

main44311-12010iYR2#,3#198808-199201

main44311-27010iCR2#,3#198808-199008

main44311-28020iCR2#,3#199008-199201

sub44311-28021

44311AKEY, VANE PUMP PULLEY

main90280-05008iCR2#,3#,YR2#,3#198808-199201

44312SHAFT, VANE PUMP

main44312-12010iCR2#,3#,YR2#,3#198808-199201

main44312-50010iCR2#,3#199008-199201

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iCR2#,3#,YR2#,3#198808-199201

main90363-17011iCR2#,3#199008-199201

sub90363-17017

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iCR2#,3#,YR2#,3#198808-199201

main90520-15005iCR2#,3#199008-199201

44313ROTOR, VANE PUMP

main44313-12010iCR2#,YR2#,3#198808-198810

sub44313-22040

main44313-12020iCR2#,YR2#,3#198808-198810

sub44313-22050

main44313-12030iCR2#,YR2#,3#198808-198810

sub44313-22060

main44313-12040iCR2#,YR2#,3#198808-198810

sub44313-22070

main44313-12050iCR2#,YR2#,3#198808-198810

sub44313-22080

main44313-22040iCR2#,3#,YR2#,3#198810-199201

main44313-22050iCR2#,3#,YR2#,3#198810-199201

main44313-22060iCR2#,3#,YR2#,3#198810-199201

main44313-22070iCR2#,3#,YR2#,3#198810-199201

main44313-22080iCR2#,3#,YR2#,3#198810-199201

44320PUMP ASSY, VANE

main44320-27040iCR2#198808-199008

sub44320-28080

sub44311-27011

sub90179-12022

main44320-27050iCR3#198808-199008

sub44320-28090

sub44311-27011

sub90179-12022

main44320-28011iYR20,25,28198808-199201

main44320-28021iYR21,3#198808-199201

main44320-28080iCR2#199008-199201

sub44320-28081

main44320-28090iCR3#199008-199201

sub44320-28091

44326RING, CAM(FOR VANE PUMP)

main44325-12010iCR2#,3#,YR2#,3#198808-199201

main44325-12020iCR2#,3#,YR2#,3#198808-199201

main44325-12030iCR2#,3#,YR2#,3#198808-199201

main44325-12040iCR2#,3#,YR2#,3#198808-199201

main44325-12050iCR2#,3#,YR2#,3#198808-199201

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iCR2#,3#,YR2#,3#198808-199201

44330VALVE ASSY, FLOW CONTROL

main44330-12130iCR2#,3#,YR2#,3#198808-198906

sub44330-12131

main44330-12131iCR2#,3#,YR2#,3#198906-199201

sub44330-32670

main44330-12140iCR2#,3#,YR2#,3#198808-198906

sub44330-12141

main44330-12141iCR2#,3#,YR2#,3#198906-199201

sub44330-32680

main44330-12150iCR2#,3#,YR2#,3#198808-198906

sub44330-12151

main44330-12151iCR2#,3#,YR2#,3#198906-199201

sub44330-32690

main44330-12160iCR2#,3#,YR2#,3#198808-198906

sub44330-12161

main44330-12161iCR2#,3#,YR2#,3#198906-199201

sub44330-32700

main44330-12170iCR2#,3#,YR2#,3#198808-198906

sub44330-12171

main44330-12171iCR2#,3#,YR2#,3#198906-199201

sub44330-32710

main44330-12180iCR2#,3#,YR2#,3#198808-198906

sub44330-12181

main44330-12181iCR2#,3#,YR2#,3#198906-199201

sub44330-32720

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iCR2#,3#,YR2#,3#198808-199201

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iCR2#,3#,YR2#,3#198808-199201

44337UNION, POWER STEERING SUCTION PORT

main44337-27010iYR20,25,28198808-199201

main44337-27030iCR2#,3#198808-199201

main44337-28010iYR21,3#198808-199201

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iCR2#,3#,YR2#,3#198808-199201

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iCR2#,3#,YR2#,3#198808-199201

main96711-19014iCR2#,3#,YR2#,3#198808-199201

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iCR2#,3#,YR2#,3#198808-199201

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iCR2#,3#,YR2#,3#198808-199201

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iCR2#,3#,YR2#,3#198808-199201

44343SEAT, FLOW CONTROL SPRING

main44343-12040iCR2#,3#,YR2#,3#198808-199201

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iCR2#,3#,YR2#,3#198808-199201

44348PLATE, VANE PUMP

main44345-12010iCR2#,3#,YR2#,3#198808-199201

main44345-12020iCR2#,3#,YR2#,3#198808-199201

main44345-12030iCR2#,3#,YR2#,3#198808-199201

main44345-12040iCR2#,3#,YR2#,3#198808-199201

main44345-12050iCR2#,3#,YR2#,3#198808-199201

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-28040iCR2#,3#198808-199201

main44360-28051iYR21,3#198808-199201

main44360-28060iYR20,25,28198808-199201

4503

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161160814

main91611-60814

9451101200

main94511-01200

39 parts on this diagram · 3 diagrams in section
