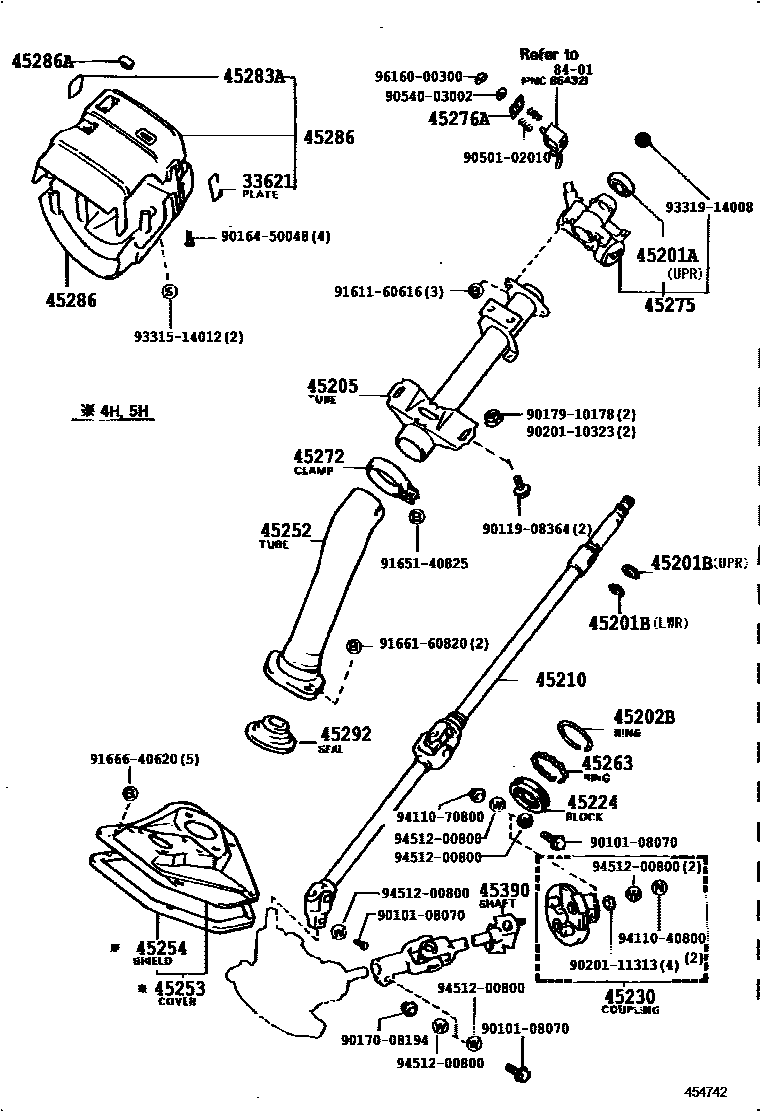

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1W/TEMS 0004 1 0005 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iKR27,YR20,25,28..5H198808-199201

main33621-36040iKR26,YR25..4H198808-199008

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

main90363-18038iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

main90363-28001iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

main90363-30007iCR21,30,YR20,21,30..E,Q198808-199201

CTR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCR2#,3#,KR2#,YR2#,3#198808-199201

main90520-17269iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198902-199201

45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

main96152-00300iCR2#,3#,KR2#,YR2#,3#198808-199201

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28050iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N)198808-199201

main45205-28060iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

main45205-28090iCR21,30,YR20,21,30..E; CR21,30,YR21,30..Q198808-199201

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N,Q)198808-199201

main45210-28060iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

45230COUPLING ASSY, FLEXIBLE

main45230-27080iCR2#,KR2#,YR20,25,28..B,D,F,G,N198808-199011

main45230-27090iCR2#,YR20,25,28..B,D,F,G,N; CR21,YR20,21..E,Q198808-199011

main45230-27100iCR3#,YR3#198808-199011

main45230-28020iCR2#,KR27,YR20,25,28..B,D,F,G,N199011-199201

main45230-28030iCR2#,YR20,25,28..B,D,F,G,N; CR21,YR20,21..E,Q199011-199201

main45230-28040iCR3#,YR3#199011-199201

45252TUBE, STEERING COLUMN, LOWER

main45252-28070iCR2#,3#,YR2#,3#..4FC,5F198808-199201

main45252-28080iKR2#,YR20,25,28..MTM..(B,D)198808-199201

45253COVER, STEERING COLUMN HOLE

main45025-28021iKR2#,YR20,25,28..MTM..(B,D)198808-199201

45254SHIELD, STEERING COLUMN HOLE

main45254-28021iKR2#,YR20,25,28..MTM..(B,D)198808-199201

45263RING, STEERING COLUMN, NO.1

main45263-32010iCR2#,3#,KR2#,YR2#,3#198808-199201

45272CLAMP, STEERING COLUMN, LOWER

main45272-28030iCR2#,3#,KR2#,YR2#,3#198808-199201

45275BRACKET, STEERING COLUMN, UPPER

main45280-28041iCR21,27,YR20,25..5F..(G,N); YR20..5F..E;CR21,30,36,YR21,30..HRF..5F..(E,G,N)198808-199201

main45280-28051iCR36..5F..D;CR2#,37,KR2#,YR20,25,28,36..MTM..(B,D,G,N)198808-199201

main45280-28090iCR21,30,YR21,30..5F..Q198808-199201

main45280-28100iCR2#,YR20,25..4FC..(F,G,N); CR21,30,36,YR20,21,30..4FC..(E,N)198808-199201

main45280-28110iCR36..4FC..D;CR2#,YR20,25,28,36..4FC..(B,D,F,G,N)198808-199201

main45280-28120iCR21,30,YR21,30..4FC..Q198808-199201

45276ASTOPPER, KEY INTERLOCK RELEASE BUTTON

main45276-28010iCR2#,30,36,YR2#,3#..4FC198808-199201

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCR2#,3#,KR2#,YR2#,3#198808-199201

45286COVER, STEERING COLUMN

main45286-28070-03iKR26,YR25..4H198808-199008

main45286-28110-03iKR27,YR20,25,28..5H198808-199201

main45286-28121-06iCR21,YR20..G; YR20..E;CR21,30,YR21,30..HRF198808-199201

main45286-28121-13iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N,Q)198808-199201

main45286-28130-03iCR36..D;CR2#,37,YR20,25,28,36..(4FC,5F)..(B,D,F,G,N)198808-199201

main45286-28130-06iCR21,YR20..G198808-199201

main45287-28051-06iCR21,YR20..G; YR20..E;CR21,30,YR21,30..HRF198808-199201

main45287-28051-13iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N,Q)198808-199201

main45287-28060-03iCR36..D;CR2#,37,YR20,25,28,36..(4FC,5F)..(B,D,F,G,N)198808-199201

main45287-28060-06iCR21,YR20..G198808-199201

main45287-28070iKR27,YR25..5H199008-199201

LWR,WINE

main45287-28070-03iYR25..4H;KR26,YR20,28..MTM..(B,D)198808-199201

45286ACOVER, STEERING COLUMN, NO.2

main45286-28100-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

main45286-28100-13iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-28010iCR2#,YR20,25..F,G,N; YR20..E;CR21,30,36,YR21,30..HRF..(E,G,N,Q)198808-199201

main45292-28030iCR36..D;CR2#,37,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

45390SHAFT ASSY, STEERING TORQUE

main45390-28040iCR2#,KR2#,YR20,25,28..B,D,F,G,N198808-199201

main45390-28050iCR2#,YR20,25,28..B,D,F,G,N; CR21,YR20,21..E,Q198808-199201

main45390-28060iCR3#,YR3#198808-199201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010108070

main90101-08070

9011908364

main90119-08364

9016450048

main90164-50048

9017008194

main90170-08194

9017910178

main90179-10178

9020110323

main90201-10323

9020111313

main90201-11313

9050102010

main90501-02010

9054003002

main90540-03002

9161160616

main91611-60616

9165140825

main91651-40825

9166160820

main91661-60820

9166640620

main91666-40620

9331514012

main93315-14012

9331914008

main93319-14008

9411040800

main94110-40800

9411070800

main94110-70800

9451200800

main94512-00800

9616000300

main96160-00300

40 parts on this diagram · 5 diagrams in section
