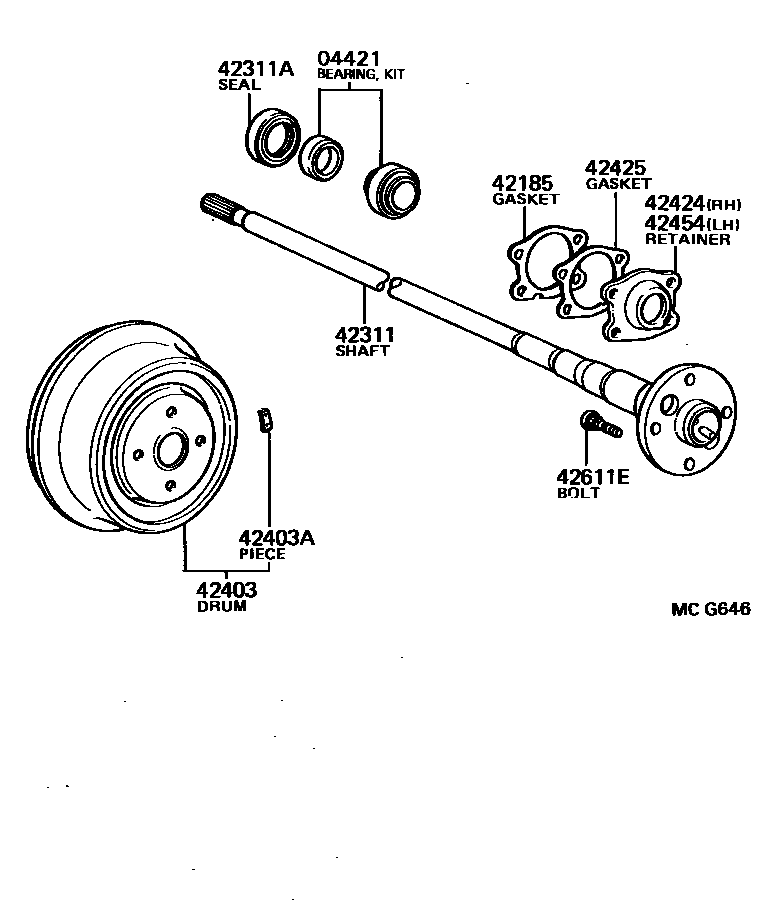

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-27010×2iCR2#,KR2#,YR2#198808-199201

main04421-30030×2iCR3#,YR3#198808-199201

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iCR2#,KR2#,YR2#198808-199201

main42185-30061×2iCR3#,YR3#198808-199201

42311SHAFT, REAR AXLE

main42311-22110×2iCR2#,KR2#,YR2#198808-199201

main42311-28030×2iCR3#,YR3#198808-199106

main42311-28031×2iCR3#,YR3#199106-199201

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2iCR2#,3#,KR2#,YR2#,3#198808-199201

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14061×2iCR2#,KR2#,YR2#198808-199201

main42431-28030×2iCR3#,YR3#198808-199201

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iCR3#,YR3#198808-199201

main90937-01118×2iCR3#,YR3#198808-199201

main90937-01119×2iCR3#,YR3#198808-199201

main90937-01287iCR2#,KR2#,YR2#198808-199201

main90937-01288iCR2#,KR2#,YR2#198808-199201

main90937-01289iCR2#,KR2#,YR2#198808-199201

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iCR2#,KR2#,YR2#198808-199201

main42424-30040iCR3#,YR3#198808-199201

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iCR2#,KR2#,YR2#198808-199201

main42425-30031×2iCR3#,YR3#198808-199201

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iCR3#,YR3#198808-199201

main42454-14010iCR2#,KR2#,YR2#198808-199201

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iCR2#,KR2#,YR2#; CR3#,YR3#198808-199201

10 parts on this diagram · 1 diagram in section
