TRANSFER ASSEMBLY & GASKET KIT

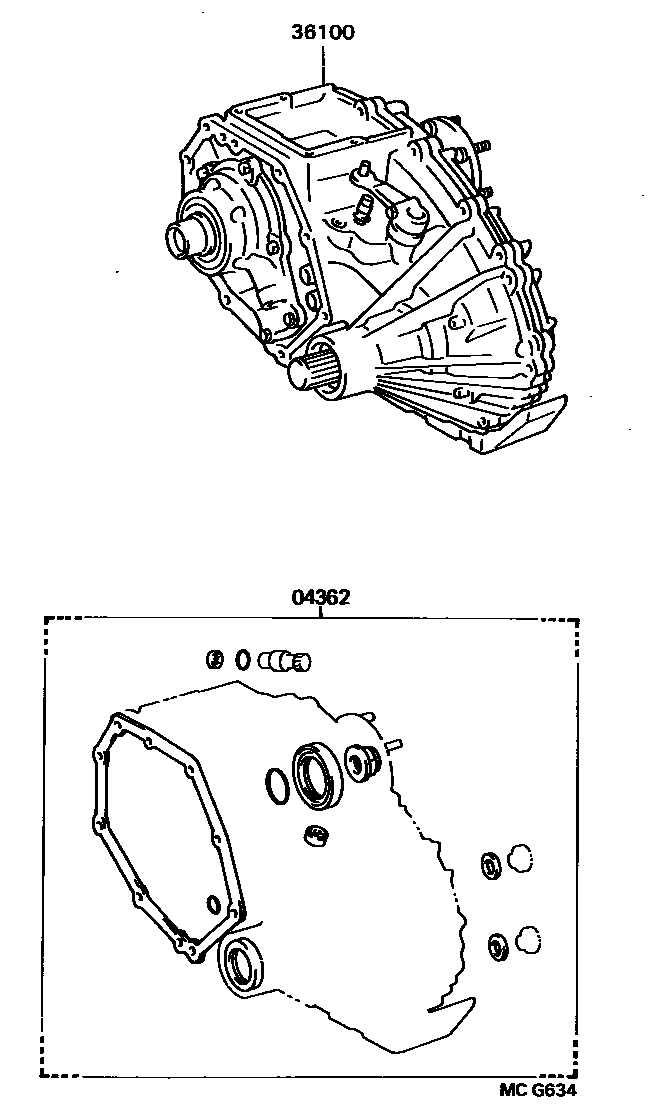

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-28030i198808-199201

36100TRANSFER ASSY

main36100-27020i198808-198912

main36100-27021i198912-199201

main36100-28090i198808-198912

main36100-28091i198912-199201

main36100-28100i198808-198912

main36100-28101i198912-199201

main36100-28110i198908-198912

main36100-28111i198912-199201

2 parts on this diagram · 1 diagram in section
