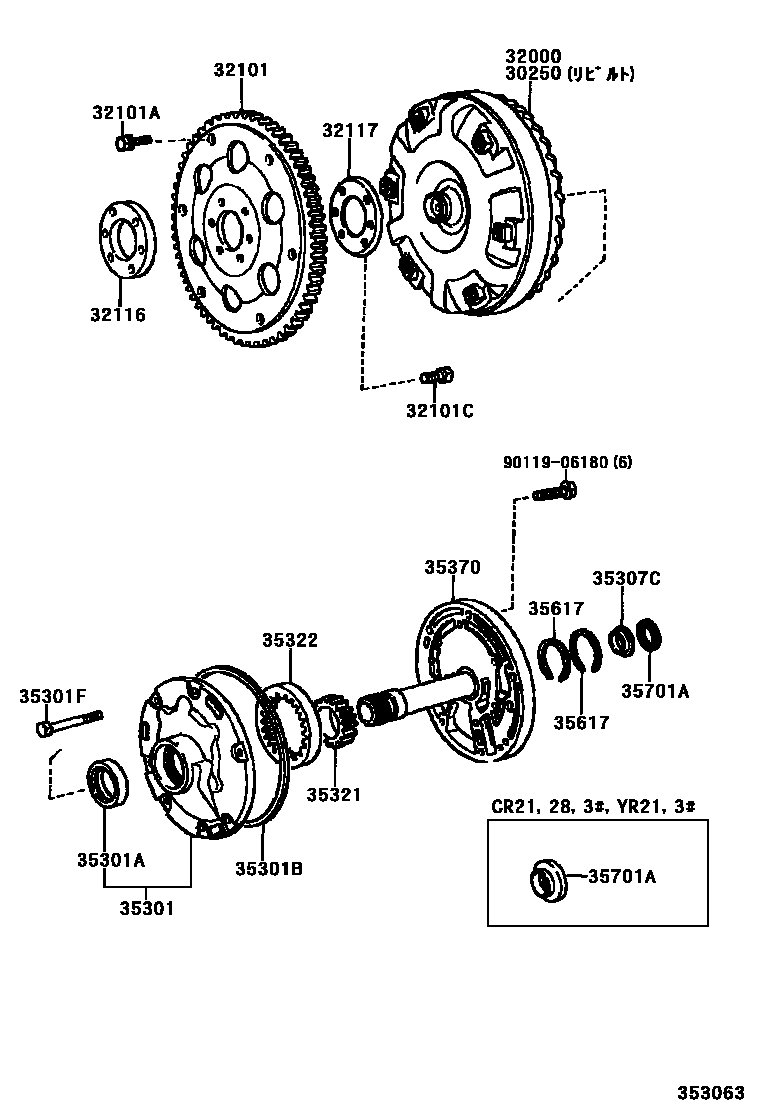

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-14091iCR28,YR20,25,28,3#..4FC198808-199201

main30250-20111iCR27,36..4FC198808-199201

main30250-28011iYR21..4FC198808-199201

main30250-28020iCR21,30..4FC198808-199201

32000CONVERTER ASSY, TORQUE

main32000-14091iCR28,YR20,25,28,3#..4FC198808-199201

main32000-20111iCR27,36..4FC198808-199201

main32000-28011iYR21..4FC198808-199201

main32000-28020iCR21,30..4FC198808-199201

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20071iCR2#,30,36..4FC198808-199201

main32101-28010iYR2#,3#..4FC198808-199201

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-08519iCR2#,30,36,YR2#,3#..4FC198808-199201

main90119-08520×5iCR2#,30,36,YR2#,3#..4FC198808-199201

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iYR2#,3#..4FC198808-199201

main90109-10037×8iCR2#,30,36..4FC198808-199201

32116SPACER, DRIVE PLATE, FRONT

main32116-20030iCR2#,30,36..4FC198808-199201

main32116-28010iYR2#,3#..4FC198808-199201

32117SPACER, DRIVE PLATE, REAR

main32117-20030iYR2#,3#..4FC198808-199201

main32117-20040iCR2#,30,36..4FC198808-199201

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iCR21,30,YR21..4FC198808-199201

main35301-30030iCR27,28,36,YR20,25,28,3#..4FC198808-199201

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCR2#,30,36,YR2#,3#..4FC198808-199201

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iCR2#,30,36,YR2#,3#..4FC198808-199201

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08137×7iCR2#,30,36,YR2#,3#..4FC198808-199201

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iCR27,YR20,25,28..4FC198808-199201

35321GEAR, FRONT OIL PUMP DRIVE

main35321-14010iCR21,30,YR21..4FC198808-199201

main35321-22010iCR27,28,36,YR20,25,28,3#..4FC198808-199201

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iCR21,30,YR21..4FC198808-199201

main35322-22010iCR27,28,36,YR20,25,28,3#..4FC198808-199201

35370SHAFT ASSY, STATOR

main35370-14012iCR21,30,YR21..4FC198808-199201

main35370-22031iCR27,YR20,25,28..4FC198808-199201

main35370-30023iCR28,36,YR3#..4FC198808-199201

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iCR2#,30,36,YR2#,3#..4FC198808-198912

main35617-32010×2iCR2#,30,36,YR2#,3#..4FC198912-199201

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iCR27,YR20,25,28..4FC198808-199201

main90374-25003iCR21,28,30,36,YR21,3#..4FC198808-199201

9011906180

main90119-06180

18 parts on this diagram · 1 diagram in section
