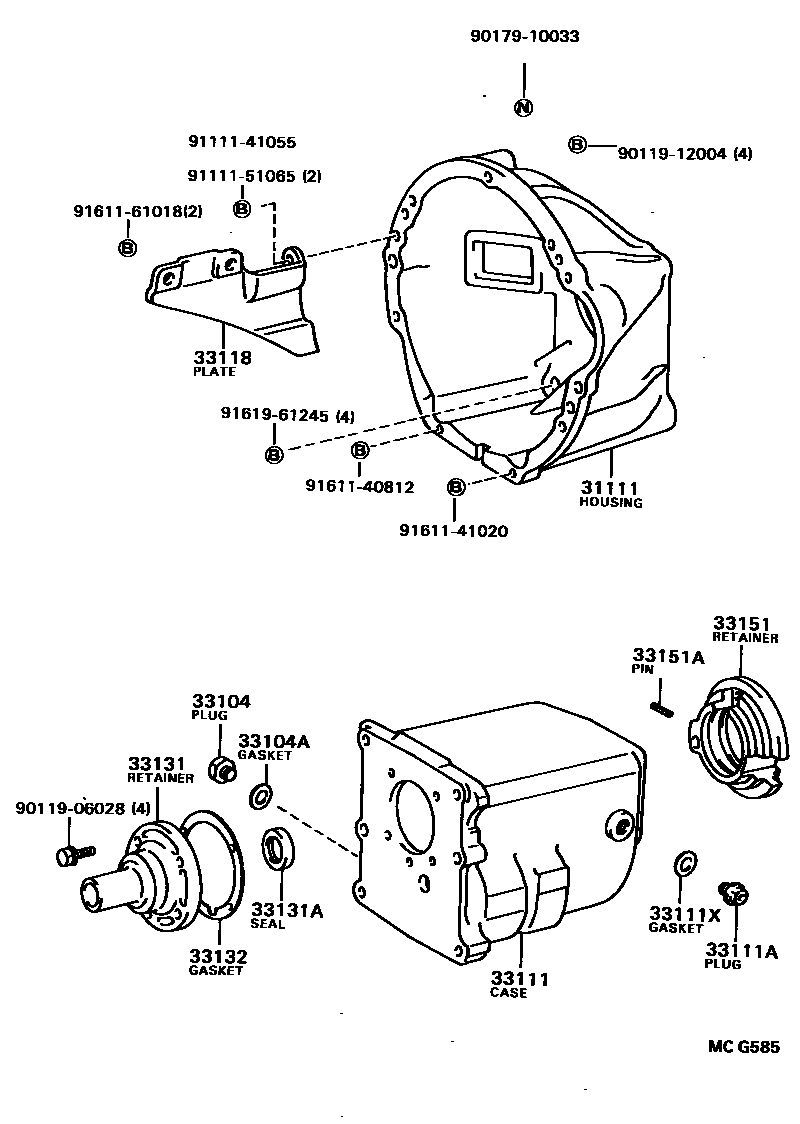

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-27020iKR26198808-199008

main31111-27030iKR27199008-199201

main31111-28010iYR25..4H198808-199008

main31111-28020iYR3#..5F198808-199201

main31111-28030iCR2#,3#..5F198808-199201

main31111-30190iYR2#..5F,5H198808-199201

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iCR2#,3#..5F198808-199201

main90341-18057iKR2#,YR2#,3#..MTM198808-199201

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

33111CASE, MANUAL TRANSMISSION

main33101-28020iKR27,YR2#,3#..5F,5H198808-199201

sub90341-18032

main33101-35060iCR2#,3#..5F198808-199201

sub33101-26060

main33111-35031iKR26,YR25..4H198808-199008

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

33118PLATE, STIFFENER, RH(MTM)

main33118-10010iKR26198808-199008

main33118-12080iKR27199008-199201

main33118-14033iCR2#,3#..5F198808-199201

main33118-28010iYR20,21,28,3#..MTM198808-199201

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iKR26,YR25..4H198808-199008

main33131-26020iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iCR2#,3#,YR2#,3#..5F,5H198808-199007

main90311-30014iCR2#,3#,KR27,YR2#,3#..5F,5H199007-199201

main90311-32106iKR26,YR25..4H198808-199008

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main33132-30030iKR26,YR25..4H198808-199008

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iKR26,YR25..4H198808-199008

main33151-35030iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iKR26,YR25..4H198808-199008

9011906028

main90119-06028

9011912004

main90119-12004

9017910033

main90179-10033

9111141055

main91111-41055

9111151065

main91111-51065

9161140812

main91611-40812

9161141020

main91611-41020

9161161018

main91611-61018

9161961245

main91619-61245

21 parts on this diagram · 5 diagrams in section
