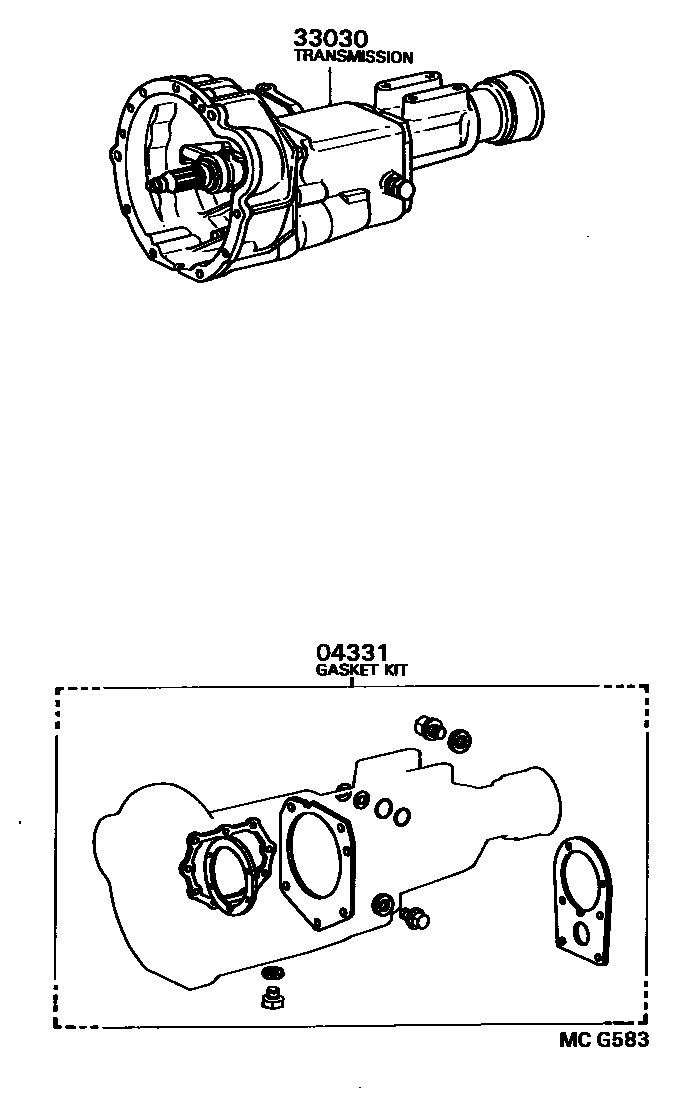

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35091iKR26,YR25..4H198808-199008

main04331-35170iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-28290iCR21,28..5F198808-199009

main33030-28291iCR21,28..5F199009-199201

main33030-28310iCR30,37..5F198808-199009

main33030-28311iCR30,37..5F199009-199201

main33030-28340iCR27..5F198808-199009

main33030-28341iCR27..5F199009-199201

main33030-28360iCR36..5F198808-199005

main33030-28361iCR36..5F199005-199201

main33030-28410iYR25..4H198808-199008

main33030-28420iKR26198808-199008

main33110-28916iYR25..5F198808-199201

main33110-28919iYR20,28..5H198808-199201

main33110-28920iYR21..5F198808-199201

main33110-28921iYR20..5F198808-199201

main33110-28922iYR3#..5F198808-199201

main33110-28925iYR25..5H199008-199201

main33110-28926iKR27199008-199201

2 parts on this diagram · 2 diagrams in section
