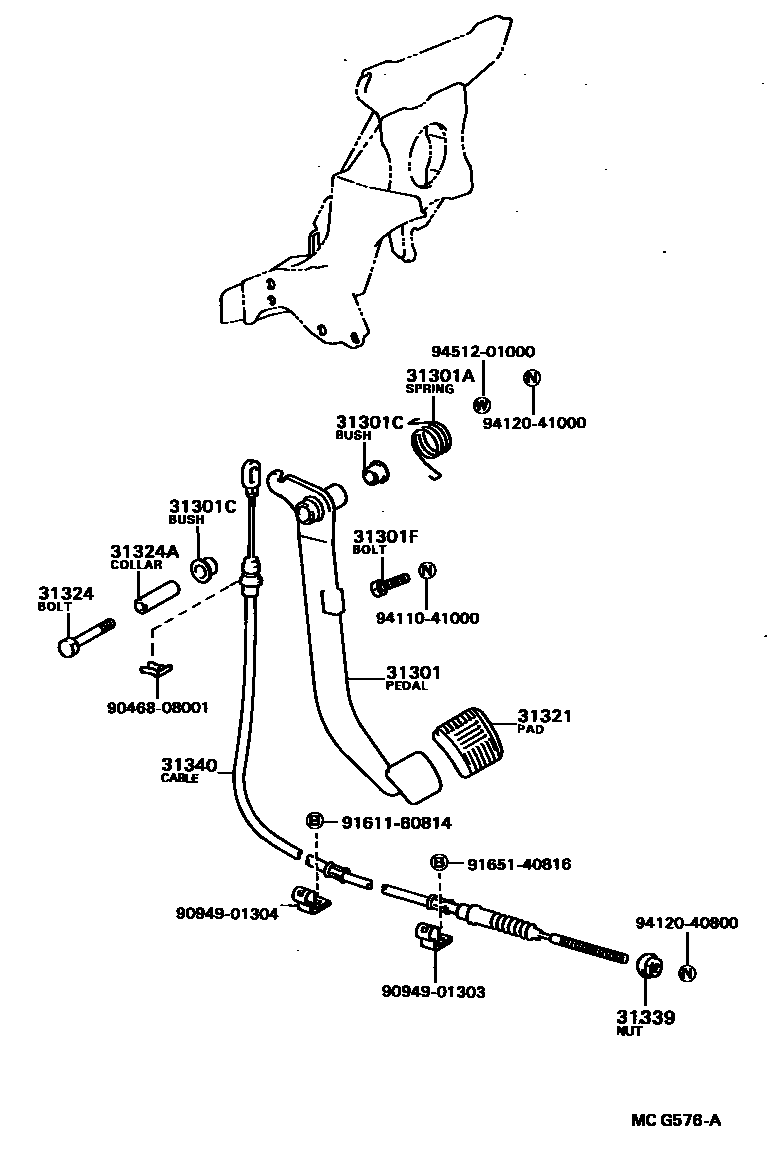

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-28060iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

main31301-28070iKR26198808-199008

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32012iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31321PAD, CLUTCH PEDAL

main31321-14020iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31324SHAFT, CLUTCH PEDAL

main91121-51060iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31339NUT, CLUTCH FORK PULL ROD LOCK

main31339-28010iKR26198808-199008

31340CABLE ASSY, CLUTCH RELEASE

main31340-28030iKR26198808-199008

9046808001

main90468-08001

9094901303

main90949-01303

9094901304

main90949-01304

9161160814

main91611-60814

9165140816

main91651-40816

9411041000

main94110-41000

9412040800

main94120-40800

9412041000

main94120-41000

9451201000

main94512-01000

18 parts on this diagram · 6 diagrams in section
