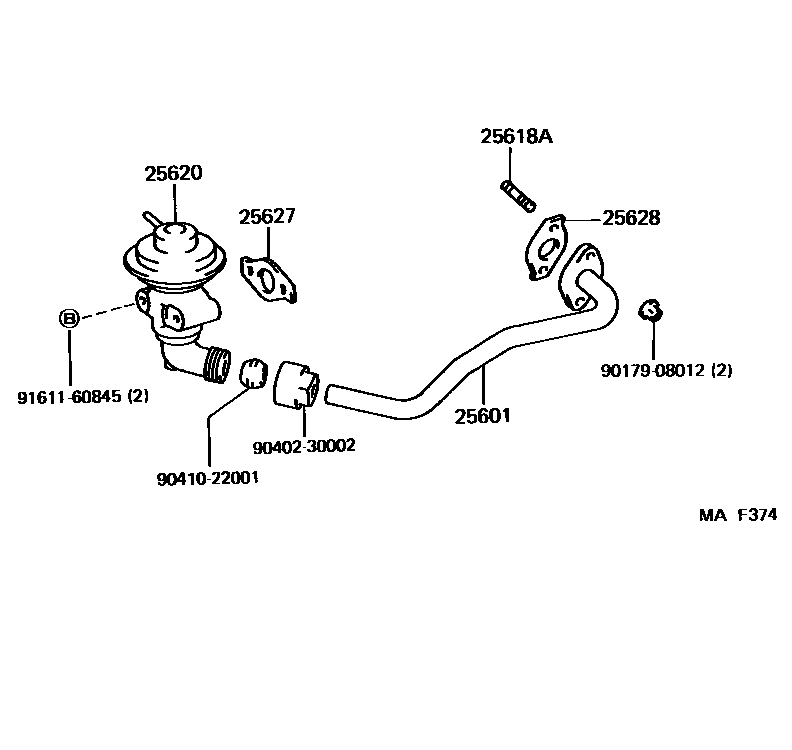

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0004 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13010i4KJ..KR26198808-199008

main25601-64040i2CT..CR21,28,30..4FC198808-199201

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822×2i2CT..CR21,28,30..4FC198808-199201

25620VALVE ASSY, EGR

main25620-13160i4KJ..KR26198808-199008

main25620-13270i5KJ..KR27199008-199201

main25620-64050i2CT..CR21,28,30..4FC198808-199201

main25620-71010i2YU..YR20,28198808-199201

main25620-71020i2YJ..YR25198808-199201

25627GASKET, EGR VALVE

main25627-13010i4KJ..KR26198808-198912

main25627-13011i4KJ..KR26198912-199008

main25627-13021i5KJ..KR27199008-199201

main25627-64020i2CT..CR21,28,30..4FC198808-199012

main25627-64041i2CT..CR21,28,30..4FC199012-199201

main25627-71010i2Y#..YR20,25,28198808-198912

main25627-71011i2Y#..YR20,25,28198912-199201

25628GASKET, EGR INLET

main25628-64020i2CT..CR21,28,30..4FC198808-199006

main25628-64030i2CT..CR21,28,30..4FC199006-199201

9017908012

main90179-08012

9040230002

main90402-30002

9041022001

main90410-22001

9161160845

main91611-60845

9 parts on this diagram · 3 diagrams in section
