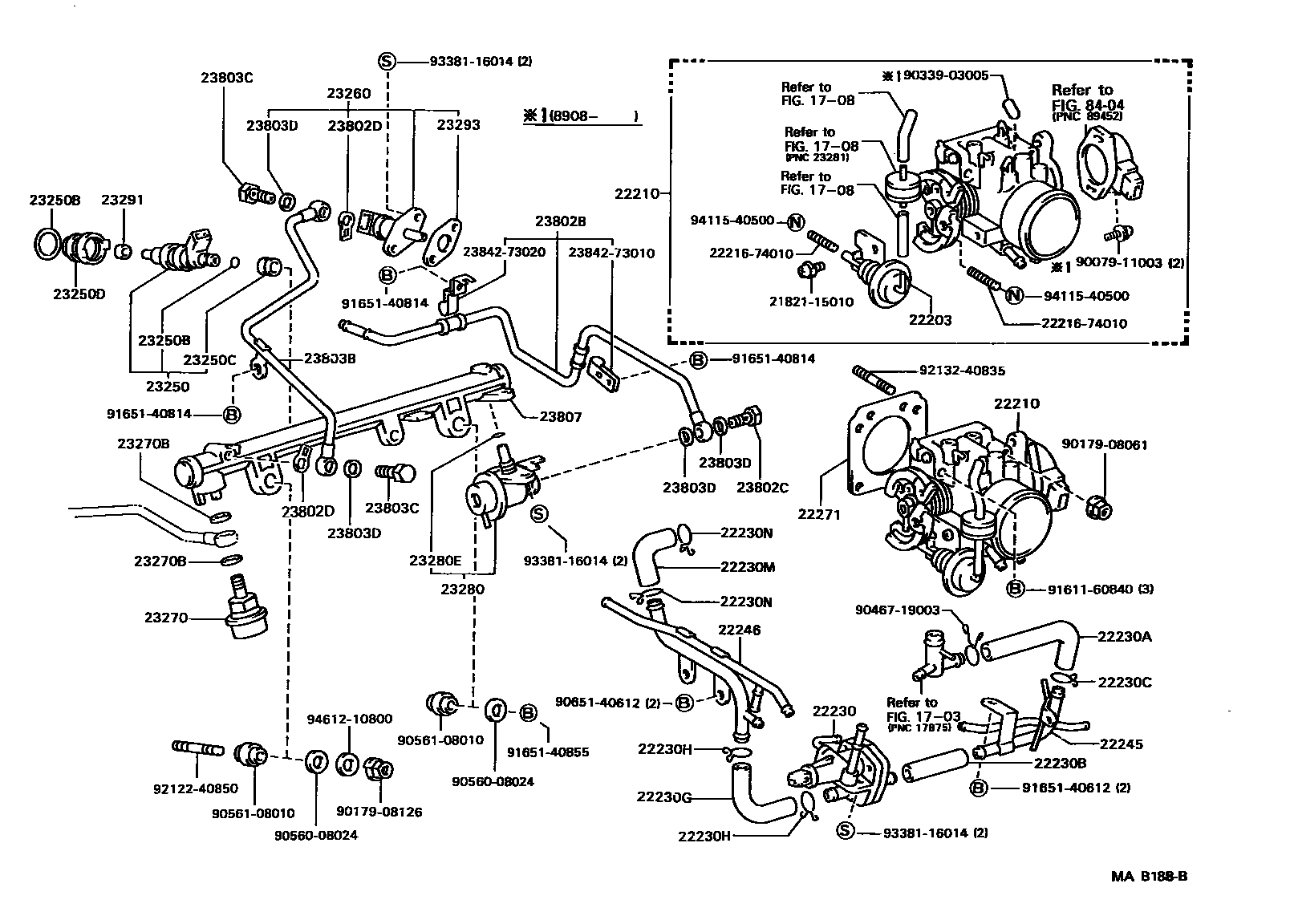

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-73011i3YEU..YR21,3#198808-199201

22210BODY ASSY, THROTTLE

main22210-73040i3YEU..YR21,3#198808-198908

main22210-73041i3YEU..YR21,3#198908-199201

22230VALVE ASSY, AUXILIARY AIR

main22230-73011i3YEU..YR21,3#198808-199201

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main22233-73010i3YEU..YR21,3#198808-199201

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main90445-21008i3YEU..YR21,3#198808-199201

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-19003i3YEU..YR21,3#198808-199201

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main22236-73011i3YEU..YR21,3#198808-199201

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-19003×2i3YEU..YR21,3#198808-199201

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-73010i3YEU..YR21,3#198808-199201

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-19003×2i3YEU..YR21,3#198808-199201

22245PIPE, AUXILIARY AIR, NO.2

main22245-73011i3YEU..YR21,3#198808-199201

22246PIPE, AUXILIARY AIR, NO.3

main22246-73011i3YEU..YR21,3#198808-198908

main22246-73012i3YEU..YR21,3#198908-199201

22271GASKET, THROTTLE BODY

main22271-73010i3YEU..YR21,3#198808-198912

main22271-73011i3YEU..YR21,3#198912-199201

23250INJECTOR ASSY, FUEL

main23209-45011×4i3YEU..YR21,3#198808-199201

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i3YEU..YR21,3#198808-199201

DELIVERY PIPE SIDE

main90301-23004×4i3YEU..YR21,3#198808-199201

MANIFOLD SIDE

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i3YEU..YR21,3#198808-199201

23250DSPACER(FOR FUEL INJECTOR)

main90561-10002×4i3YEU..YR21,3#198808-199201

23260INJECTOR ASSY, COLD START FUEL

main23260-79085i3YEU..YR21,3#198808-199201

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-73010i3YEU..YR21,3#198808-199201

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i3YEU..YR21,3#198808-199201

DAMPER SIDE

main90430-12005i3YEU..YR21,3#198808-199201

PIPE SIDE

23280REGULATOR ASSY, FUEL PRESSURE

main23280-73030i3YEU..YR21,3#198808-199201

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i3YEU..YR21,3#198808-199201

23291INSULATOR, INJECTOR VIBRATION

main23291-73010×4i3YEU..YR21,3#198808-199201

23293GASKET, COLD START INJECTOR

main23293-73010i3YEU..YR21,3#198808-198912

main23293-73011i3YEU..YR21,3#198912-199201

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-73020i3YEU..YR21,3#198808-199201

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i3YEU..YR21,3#198808-199201

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08011×2i3YEU..YR21,3#198808-199201

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-73011i3YEU..YR21,3#198808-199201

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08004×2i3YEU..YR21,3#198808-199201

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08009×4i3YEU..YR21,3#198808-199201

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-73010i3YEU..YR21,3#198808-199201

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2221674010SCREW, DASH POT ADJUSTING

main22216-74010

2384273010CLAMP, FUEL PIPE(HOSE), NO.2

main23842-73010

2384273020CLAMP, FUEL PIPE(HOSE), NO.2

main23842-73020

9007911003

main90079-11003

9017908061

main90179-08061

9017908126

main90179-08126

9033903005

main90339-03005

9046719003

main90467-19003

9056008024

main90560-08024

9056108010

main90561-08010

9065140612

main90651-40612

9161160840

main91611-60840

9165140612

main91651-40612

9165140814

main91651-40814

9165140855

main91651-40855

9212240850

main92122-40850

9213240835

main92132-40835

9338116014

main93381-16014

9411540500

main94115-40500

9461210800

main94612-10800

55 parts on this diagram · 3 diagrams in section
