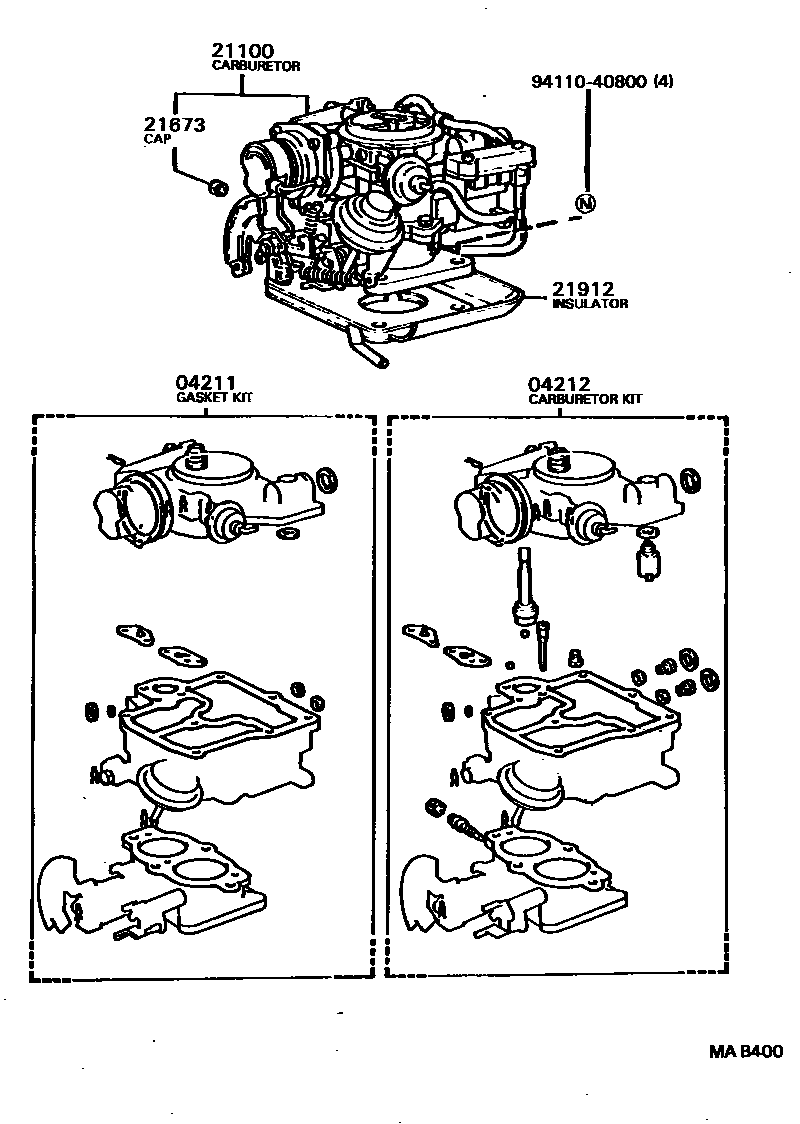

CARBURETOR ASSEMBLY

0001 1 0003 1

04211CARBURETOR KIT

main04211-13270i4KJ..KR26198808-199001

main04211-13271i4KJ..KR26199001-199008

main04211-13490i5KJ..KR27199008-199201

main04211-72210i2YJ..YR25198808-199003

main04211-72211i2YJ..YR25199003-199201

main04211-72220i2YU..YR20,28198808-199003

main04211-72221i2YU..YR20,28199003-199201

04212GASKET KIT, CARBURETOR

main04212-13060i4KJ..KR26198808-199001

main04212-13061i4KJ..KR26199001-199008

main04212-13071i5KJ..KR27199008-199201

main04212-72040i2YJ..YR25198808-199003

main04212-72041i2YJ..YR25199003-199201

main04212-72050i2YU..YR20,28198808-198910

main04212-73100i2YU..YR20,28198910-199003

main04212-73101i2YU..YR20,28199003-199201

21100CARBURETOR ASSY

main21100-13391i4KJ..KR26198808-199008

main21100-13730i5KJ..KR27199008-199201

main21100-72291i2YJ..YR25198808-199201

main21100-72301i2YU..YR20,28198808-199201

21673CAP, IDLE LIMIT

main21673-13280i2Y#..YR20,25,28; 4KJ,5KJ..KR2#198808-199201

21912INSULATOR, CARBURETOR HEAT

main21912-13031i4KJ..KR26198808-198912

main21912-13070i4KJ,5KJ..KR2#198912-199201

main21912-72010i2Y#..YR20,25,28198808-198912

main21912-72011i2Y#..YR20,25,28198912-199201

9411040800

main94110-40800

6 parts on this diagram · 2 diagrams in section
