STARTER

0001 112V 0.6KW 0002 112V 0.8KW 0003 112V 0.8KW 0004 112V 1.0KW 0005 112V 1.0KW 0006 112V 1.4KW 0007 112V 2.0KW 0008 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-13060i4KJ..KR26198808-199008

main28011-15010i4KJ..KR26198808-199008

main28011-26042i5KJ..KR27199008-199201

main28011-26042i2Y#,3YEU..YR2#,3#198808-199201

main28011-64010i2C#..CR2#,30,36..4FC198808-199201

sub28011-67030

main28011-64020i2C#..CR2#,30,36..4FC198808-199201

main28011-70020i5KJ..KR27199008-199201

28100STARTER ASSY

main28100-13010i5KJ..KR27199008-199201

main28100-13020i4KJ..KR26198808-199008

main28100-13061i4KJ..KR26198808-199008

sub28100-13130

main28100-13080i5KJ..KR27199008-199201

main28100-64020i2C#..CR2#,30,36..4FC198808-199201

sub28100-64040

main28100-64040i2C..CR36..4FC;2C#..CR2#,30,37;2C..CR36..5F..D198808-199201

main28100-64100i2C#..CR2#,3#..5F198808-199201

main28100-72010i2Y#,3YEU..YR2#,3#198808-199201

28110HOUSING ASSY, STARTER DRIVE

main28110-13010i5KJ..KR27199008-199201

main28110-13020i4KJ..KR26198808-199008

main28110-13060i4KJ..KR26198808-199008

main28110-13080i5KJ..KR27199008-199201

main28110-64070i2C#..CR2#,3#..5F198808-199201

main28110-72010i2Y#,3YEU..YR2#,3#198808-199201

main28115-64020i2C#..CR2#,30,36..4FC198808-199201

main28115-64040i2C..CR36..4FC;2C#..CR2#,30,37;2C..CR36..5F..D198808-199201

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4KJ..KR26198808-199008

main90099-10158i4KJ..KR26198808-199008

28113LEVER, STARTER PINION DRIVE

main28113-13060i4KJ..KR26198808-199008

main28113-15011i4KJ..KR26198808-199008

main28113-70020i5KJ..KR27199008-199201

28119COVER, STARTER END FRAME

main28119-54070i2C#..CR2#,30,36..4FC198808-199201

main28199-15090i4KJ..KR26198808-199008

main28199-46080i5KJ..KR27199103-199201

main28199-70020i5KJ..KR27199008-199103

sub28199-46080

main28199-72020i2C#..CR2#,3#..5F198808-199101

main28199-74100i2C#..CR2#,3#..5F199101-199201

sub28199-74110

main28199-77090i2C#..CR2#,3#198808-199201

28120YOKE ASSY, STARTER

main28120-13060i4KJ..KR26198808-199008

main28120-13081i5KJ..KR27199008-199201

main28120-15090i2C#..CR2#,3#..5F198808-199201

main28120-26071i2Y#,3YEU..YR2#,3#198808-199201

main28120-26071i5KJ..KR27199008-199201

main28120-26140i4KJ..KR26198808-199008

main28120-64020i2C#..CR2#,30,36..4FC198808-199201

main28120-64040i2C#..CR2#,3#198808-199201

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i5KJ..KR27199008-199201

main28130-13020i4KJ..KR26198808-199008

main28130-13060i4KJ..KR26198808-199008

main28130-13080i5KJ..KR27199008-199201

main28130-64100i2C#..CR2#,3#..5F198808-199101

main28130-64110i2C#..CR2#,3#..5F199101-199201

main28130-72010i2Y#,3YEU..YR2#,3#198808-199201

28131BUSH, COMMUTATOR END FRAME

main90099-10134i4KJ..KR26198808-199008

main90099-10157i4KJ..KR26198808-199008

28142BRUSH, STARTER

main28142-10020i4KJ..KR26198808-199008

main28142-70020i5KJ..KR27199008-199201

28143SPRING, STARTER BRUSH

main28143-10020i4KJ..KR26198808-199008

main28143-70020i5KJ..KR27199008-199201

main90099-17112i5KJ..KR27199008-199201

main90099-17112i2C#..CR2#,3#..5F;2Y#,3YEU..YR2#,3#198808-199201

main90099-17115i2C#..CR2#,30,36..4FC198808-199201

main90099-17115i2C..CR36..5F..D;2C#..CR2#,30,37..5F198808-199201

28146HOLDER, STARTER BRUSH

main28149-10020i4KJ..KR26198808-199008

28149PLATE, STARTER

main28141-10020i4KJ..KR26198808-199008

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4KJ,5KJ..KR2#198808-199103

sub28150-10021

main28150-10021i5KJ..KR27199103-199201

main28150-13011i5KJ..KR27199008-199201

main28150-34080i2Y#,3YEU..YR2#,3#198808-199201

main28150-37010i4KJ..KR26198808-199008

sub28150-37011

main28150-64020i2C#..CR2#,30,36..4FC198808-199201

main28150-64040i2C..CR36..4FC;2C#..CR2#,30,37;2C..CR36..5F..D198808-199201

main28150-64070i2C#..CR2#,3#..5F198808-199010

main28150-64100i2C#..CR2#,3#..5F199010-199101

sub28150-64101

main28150-64101i2C#..CR2#,3#..5F199101-199201

28160ARMATURE ASSY, STARTER

main28160-10020i4KJ..KR26198808-199008

main28160-15010i4KJ..KR26198808-199008

main28160-15090i2C#..CR2#,3#..5F198808-198908

sub28160-15091

main28160-15091i2C#..CR2#,3#..5F198908-199201

main28160-26070i2Y#,3YEU..YR2#,3#198808-198908

sub28160-26071

main28160-26070i5KJ..KR27199008-199201

sub28160-26071

main28160-26071i2Y#,3YEU..YR2#,3#198908-199201

main28160-54070i2C#..CR2#,30,36..4FC198808-199201

sub28160-54071

main28160-64040i2C..CR36..4FC;2C#..CR2#,30,37;2C..CR36..5F..D198808-199201

sub28160-64041

main28160-70021i5KJ..KR27199008-199201

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10020i4KJ..KR26198808-199008

sub28163-10021

main28163-40011i4KJ..KR26198808-199008

main28163-70020i5KJ..KR27199008-199201

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i4KJ..KR26198808-199008

main90099-07124i4KJ,5KJ..KR2#198808-199201

28199COVER, STARTER

main28159-13060i4KJ..KR26198808-199008

main28159-13080i5KJ..KR27199008-199201

main28199-13011i5KJ..KR27199008-199201

main28199-15110i4KJ..KR26198808-199008

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009901524

main90099-01524

9009904332

main90099-04332

9009904343

main90099-04343

9009905118

main90099-05118

9009905178

main90099-05178

9009912405

main90099-12405

9017908146

main90179-08146

9161161035

main91611-61035

9411040800

main94110-40800

9451100800

main94511-00800

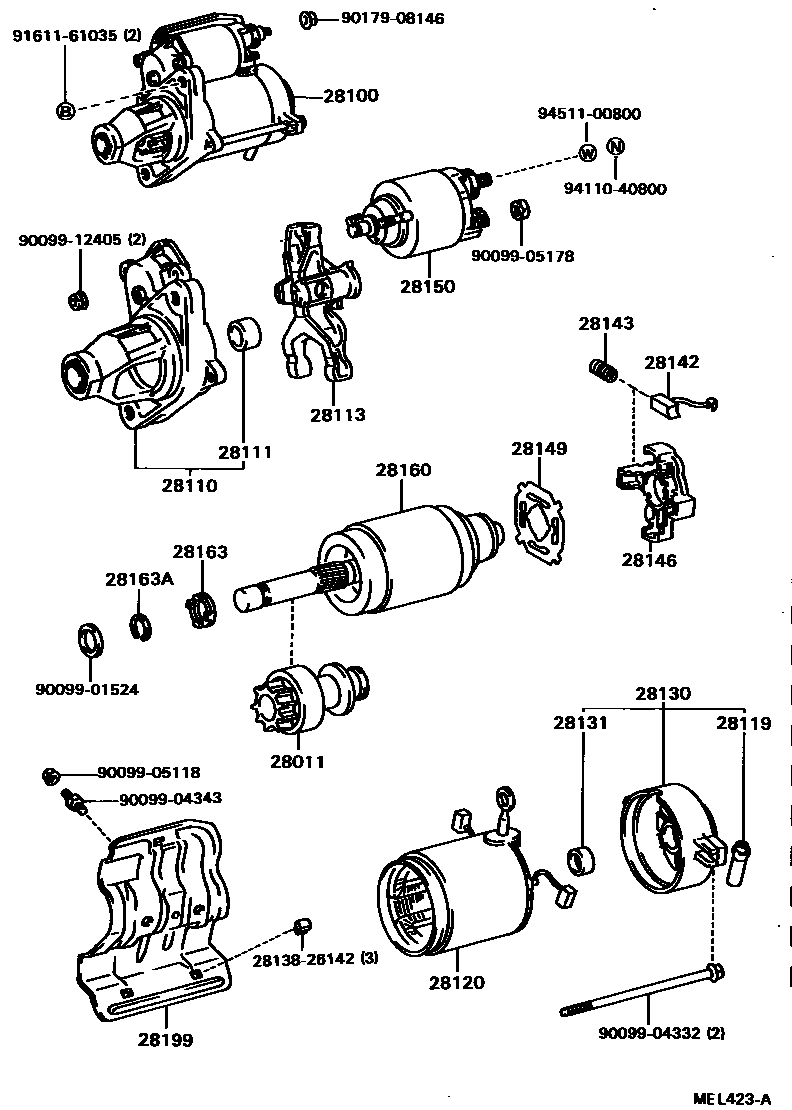

29 parts on this diagram · 8 diagrams in section
