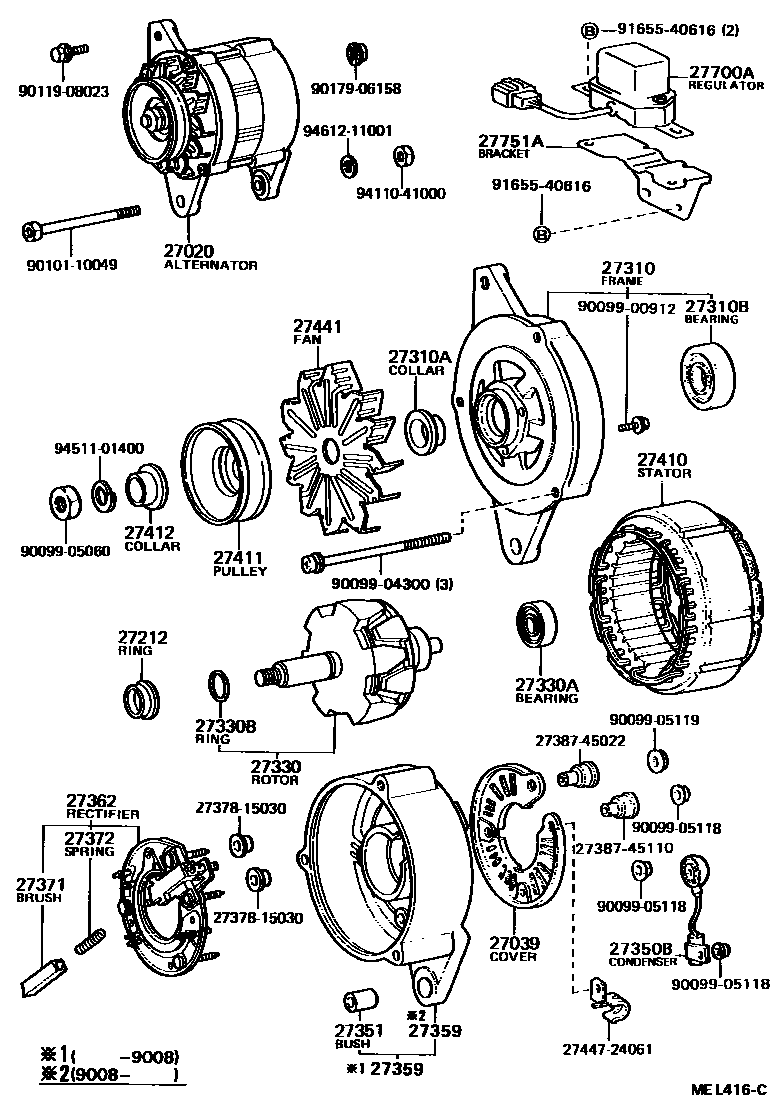

ALTERNATOR

0001 112V 40A,45A 0002 112V 55A,70A 0003 112V 70A 0004 112V 70A 0005 112V 45A 0006 112V 60A,70A 0007 112V 70A

27020ALTERNATOR ASSY

main27020-13060i4KJ..KR26198808-199008

main27020-13070i5KJ..KR27199008-199201

main27020-64191i2CT..CR30..4FC198808-199201

main27020-64200i2CT..CR30..5F;2CT..CR21,28,37198808-199008

main27020-64250i2CT..CR30..5F;2CT..CR21,28,37199008-199201

main27060-64011i2C..CR36..SRF198808-199005

main27060-64021i2C..CR27,36198808-199008

main27060-64030i2C..CR27,36199008-199201

main27060-64040i2C..CR36..SRF..5F199008-199201

main27060-72062i2YU..YR20..5F198808-199201

main27060-72071i2YU..YR20,28..5H198808-199201

main27060-72111i2YJ..YR25198808-199201

main27060-72171i2YU..YR20,28..4FC198808-199201

main27060-72180i3YEU..YR21,3#198808-199201

27039COVER, ALTERNATOR REAR END

main27039-15170i2YU..YR20..5F199109-199201

main27039-18011i4KJ,5KJ..KR2#198808-199201

main27039-42010i3YEU..YR21,3#198808-199201

main27039-64130i2CT..CR30..5F;2CT..CR21,28,37198808-199008

main27039-64150i2CT..CR30..5F;2CT..CR21,28,37198808-199008

main27039-64180i2CT..CR21,28,30,37199008-199201

main27039-64190i2CT..CR30..4FC198808-199008

main27039-72010i2YU..YR20,28..05S,08S198808-199008

main27039-72110i2YU..YR20,28..5H199008-199201

main27039-72150i2YJ..YR25198808-199201

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4KJ,5KJ..KR2#198808-199201

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i4KJ,5KJ..KR2#198808-199201

main27310-43051i2YU..YR20,28..4FC198808-199201

main27310-43100i2YU..YR20..5F198808-199201

main27310-64130i2C..CR36..SRF..5F199005-199008

main27310-64140i2C..CR27,36198808-199008

main27310-64190i2C..CR36..SRF..5F; 2CT..CR30..5F;2CT..CR21,28,37199008-199201

main27310-64191i2CT..CR30..4FC198808-199201

main27310-64230i2C..CR27,36199008-199201

main27310-72110i2YU..YR20,28..5H198808-199201

main27310-72150i2YJ..YR25198808-198910

main27310-72151i2YJ..YR25198910-199201

main27310-72210i3YEU..YR21,3#198808-199201

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i4KJ,5KJ..KR2#198808-199201

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i4KJ,5KJ..KR2#198808-199201

main90099-10159i2YU..YR20,28198808-199201

main90099-10160i3YEU..YR21,3#198808-199201

main90099-10165i2C#..CR2#,3#198808-199201

main90099-10170i2YJ..YR25198808-198910

main90099-10198i2YJ..YR25198910-199201

27330ROTOR ASSY, ALTERNATOR

main27330-10021i2YU..YR20,28..5H198808-199201

main27330-26050i4KJ..KR26198808-199008

main27330-42010i3YEU..YR21,3#198808-199012

main27330-45020i5KJ..KR27199008-199201

main27330-64130i2C..CR36..SRF198808-199005

main27330-64140i2C..CR27,36198808-199008

main27330-64190i2C..CR36..SRF..5F; 2CT..CR21,28,30,37199008-199201

main27330-72101i2YU..YR20,28..05S,08S198808-199201

main27330-72150i2YJ..YR25198808-199201

main27330-76030i3YEU..YR21,3#199012-199201

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i4KJ,5KJ..KR2#198808-199201

main90099-10140i2C#,2YU,3YEU..CR2#,3#,YR20,21,28,3#198808-199201

main90099-10154i2YJ..YR25198808-199201

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i4KJ,5KJ..KR2#198808-199201

27350BCONDENSER, ALTERNATOR

main90099-52065i4KJ,5KJ..KR2#198808-199201

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4KJ,5KJ..KR2#198808-199201

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i4KJ,5KJ..KR2#198808-199201

main27359-16011i2YU..YR20,28..05S,08S198808-199201

main27359-16081i2YU..YR20,28..5H198808-199201

main27359-16270i3YEU..YR21,3#199012-199201

main27359-42010i3YEU..YR21,3#198808-199012

main27359-64130i2C..CR36..SRF198808-199005

main27359-64140i2C..CR27,36198808-199008

main27359-64190i2C..CR36..SRF..5F; 2CT..CR21,28,30,37199008-199201

main27359-72150i2YJ..YR25198808-199201

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i4KJ,5KJ..KR2#198808-199201

27371BRUSH, ALTERNATOR

main27371-31011×2i4KJ,5KJ..KR2#198808-199201

main27371-63020×2i2CT..CR30..5F;2C#,2Y#..CR2#,36,37,YR20,25,28198808-198908

main27371-70300×2i2CT..CR30..5F;2C#..CR2#,36,37198908-199008

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i4KJ,5KJ..KR2#198808-199201

main27372-72100×2i2CT..CR30..5F;2C#,2Y#..CR2#,36,37,YR20,25,28198808-199008

27410STATOR ASSY, ALTERNATOR

main27410-38120i4KJ,5KJ..KR2#198808-199201

27411PULLEY, ALTERNATOR

main27411-16150i2YU..YR20,28..5H198808-199201

main27411-16210i2YU..YR20..5F198808-198812

main27411-16211i2YU..YR20,28..4FC198808-198812

main27411-31042i4KJ,5KJ..KR2#198808-199201

main27411-42030i3YEU..YR21,3#198808-199201

main27411-72120i2YJ..YR25198808-199201

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i4KJ,5KJ..KR2#198808-199201

27441FAN, ALTERNATOR

main27441-34030i4KJ,5KJ..KR2#198808-199201

27700AREGULATOR ASSY, GENERATOR

main27700-10050i2YJ..YR25198808-198812

main27700-10080i2YJ..YR25198812-199201

main27700-11030i2C..CR27,36199008-199201

main27700-63021i2YU..YR28..06S;2C,2YU..CR27,36,YR20..D,N198808-198812

main27700-64060i2CT..CR21,28,30,37198808-199011

main27700-64061i2CT..CR21,28,30,37199011-199201

main27700-70030i2YU,3YEU..YR20,21,28,3#198812-198902

main27700-72010i4KJ,5KJ..KR2#198808-199201

main27700-72040i2YU..YR20..5F198808-198812

27751ABRACKET, GENERATOR REGULATOR

main27751-13020i4KJ,5KJ..KR2#198808-199201

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9165540616

main91655-40616

9411041000

main94110-41000

9451101400

main94511-01400

9461211001

main94612-11001
