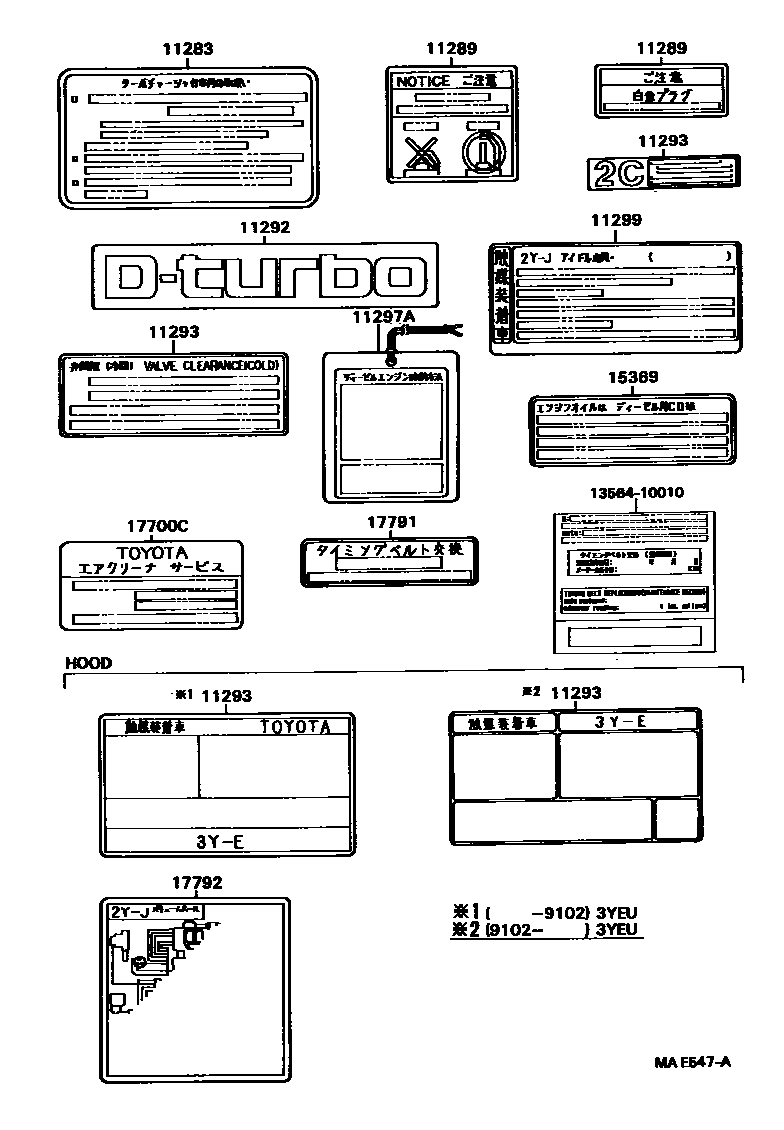

CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11294-55010i2CT..CR21,28,30,37198808-199201

11289PLATE, SPARK PLUG CAUTION

main11289-13050i5KJ..KR27199008-199201

main11289-16010i2YU,3YEU..YR20,21,28,3#198808-199201

11292PLATE, ENGINE NAME, NO.2

main11292-64030i2CT..CR21,28,30,37198808-199201

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-64050i2CT..CR21,28,30,37198808-199201

main11293-64060i2C..CR27,36198808-199201

main11296-73020i3YEU..YR21,3#198808-198902

main11296-73090i3YEU..YR21,3#198902-199102

main11296-73091i3YEU..YR21,3#199102-199201

11297APLATE, ENGINE START CAUTION

main11297-64010i2C#..CR2#,3#198808-199201

11299PLATE, IDLE ADJUSTING CAUTION

main11299-13100i5KJ..KR27199008-199201

main11299-72060i2YJ..YR25198808-199201

main11299-73021i2YU..YR20,28198808-199201

15369PLATE, ENGINE OIL CAUTION

main15369-54010i2C#..CR2#,3#198808-199201

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i2C#..CR2#,3#198808-199201

main90917-07095i2Y#..YR20,25,28198808-199201

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i2C#..CR2#,3#198808-199201

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main11293-13210i4KJ..KR26198808-199008

main17792-13400i5KJ..KR27199008-199201

main17792-13410i5KJ..KR27199008-199201

main17792-72190i2YJ..YR25198808-199201

main17792-73140i2YU..YR20,28198808-199201

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

11 parts on this diagram · 1 diagram in section
