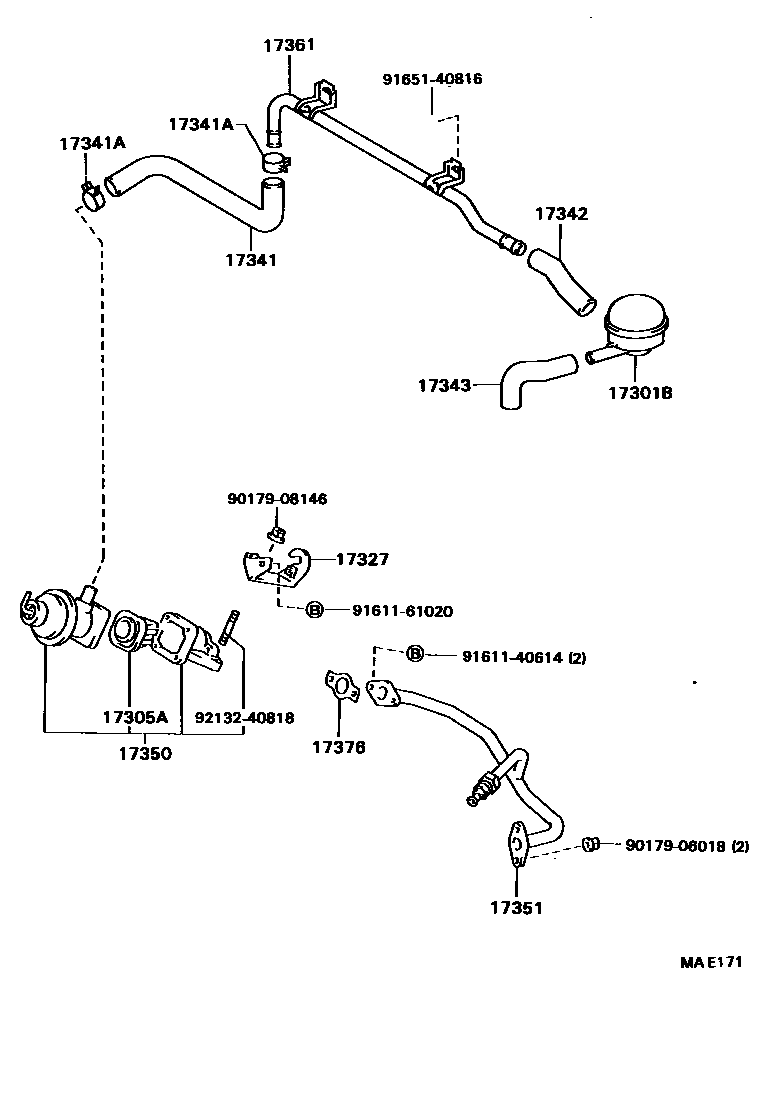

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-13020i5KJ..KR27199008-199201

17305AVALVE SUB-ASSY, REED

main17305-13030i5KJ..KR27199008-199201

main17305-28010×2i2YU..YR20,28198808-199201

main17305-71010×2i2YU..YR20,28198808-199201

17327BRACKET, REED VALVE

main17327-13020i5KJ..KR27199008-199201

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-13080i5KJ..KR27199008-199201

main17341-71010i2Y#..YR20,25,28198808-199201

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26002×2i5KJ..KR27199008-199201

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-13040i5KJ..KR27199008-199201

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-13040i5KJ..KR27199008-199201

17350VALVE ASSY, REED

main17350-13070i5KJ..KR27199008-199201

main17350-73010i2YJ..YR25198808-199201

17351MANIFOLD, AIR INJECTION

main17306-13040i5KJ..KR27199008-199201

main17306-71010i2YU..YR20,28198808-199201

main17306-73011i2YJ..YR25198808-199201

17361TUBE, AIR

main17303-13180i5KJ..KR27199008-199201

17376GASKET, AIR TUBE, NO.1

main17376-13011×2i5KJ..KR27199008-199201

main17376-71010i2Y#..YR20,25,28198808-198912

main17376-71011i2Y#..YR20,25,28198912-199201

9017906018

main90179-06018

9017908146

main90179-08146

9161140614

main91611-40614

9161161020

main91611-61020

9165140816

main91651-40816

9213240818

main92132-40818

17 parts on this diagram · 3 diagrams in section
