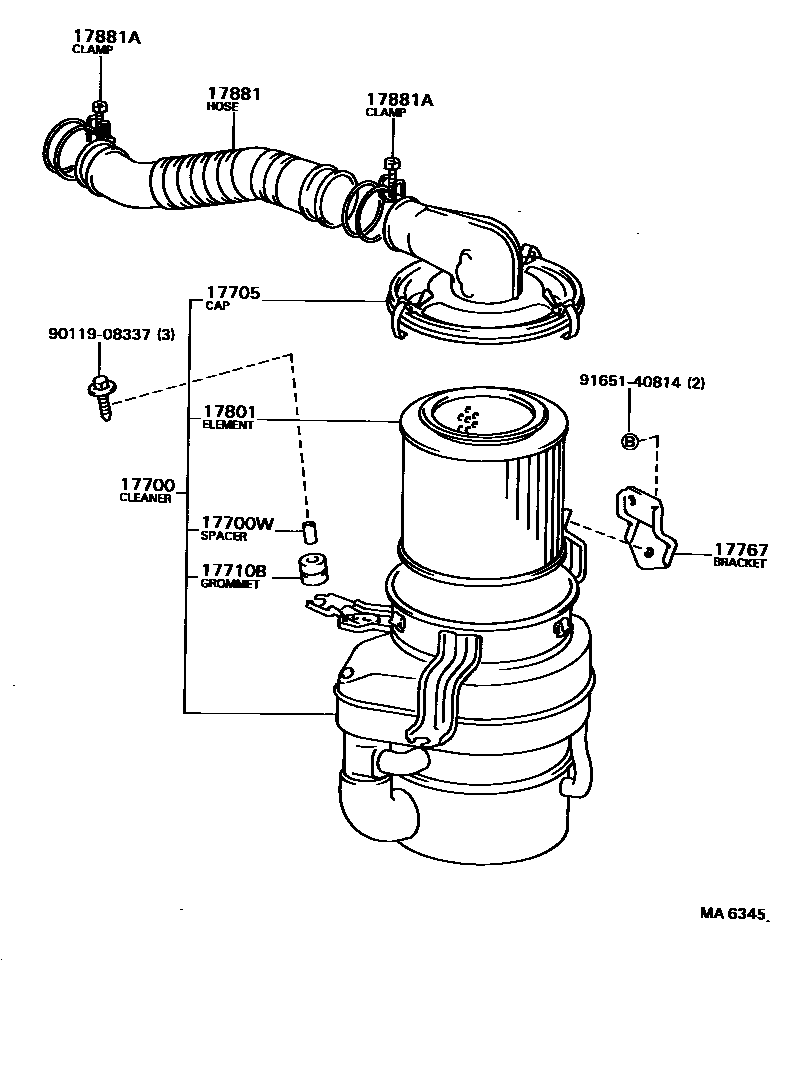

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

17700CLEANER ASSY, AIR

main17700-13550i4KJ..KR26198808-199008

main17700-13730i5KJ..KR27199008-199201

main17700-64150i2CT..CR21,28,30,37198808-199201

sub17700-64160

main17700-64160i2C..CR27,36198808-199201

main17700-72091i2Y#..YR20,25,28198808-199201

main17700-73042i3YEU..YR21,3#198808-199201

sub17700-73043

17700WSPACER(FOR AIR CLEANER)

main90560-08038i2C#..CR2#,3#198808-199201

17705CAP SUB-ASSY, AIR CLEANER

main17705-13120i4KJ..KR26198808-199008

main17705-13180i5KJ..KR27199008-199201

main17705-64020i2C#..CR2#,3#198808-199201

main17705-72030i2Y#..YR20,25,28198808-199201

main17705-73011i3YEU..YR21,3#198808-199201

17710BGROMMET

main90480-12010i2C#..CR2#,3#198808-199201

17767BRACKET, AIR CLEANER

main17771-28010i2C#..CR2#,3#198808-199201

main17771-28020i4KJ,5KJ..KR2#198808-199201

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16010i2Y#..YR20,25,28198808-199201

main17801-54050i2C#..CR2#,3#198808-199201

main17801-70010i3YEU..YR21,3#198808-199201

17881HOSE, AIR CLEANER, NO.1

main17880-64090i2C..CR27,36198808-199201

main17881-13130i4KJ,5KJ..KR2#198808-199201

main17881-71060i2Y#..YR20,25,28198808-199201

main17881-73020i3YEU..YR21,3#198808-199201

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70001i2CT..CR21,28,30,37198808-199201

CONNECTOR TO CONNECTOR

sub90467-56001

main90460-73003i2C..CR27,36198808-199201

MANIFOLD SIDE

sub90460-73011

main90460-73004i2CT..CR21,28,30,37198808-199201

MANIFOLD SIDE

sub90460-73011

main90460-77003i2C#..CR2#,3#198808-199201

AIR CLEANER SIDE

main90460-80001i2Y#..YR20,25,28198808-199201

sub90460-80006

main96111-10710i3YEU..YR21,3#198808-199201

THROTTLE BODY SIDE

main96111-10800i3YEU..YR21,3#198808-199201

AIR FLOW METER SIDE

9011908337

main90119-08337

9165140814

main91651-40814

10 parts on this diagram · 8 diagrams in section
