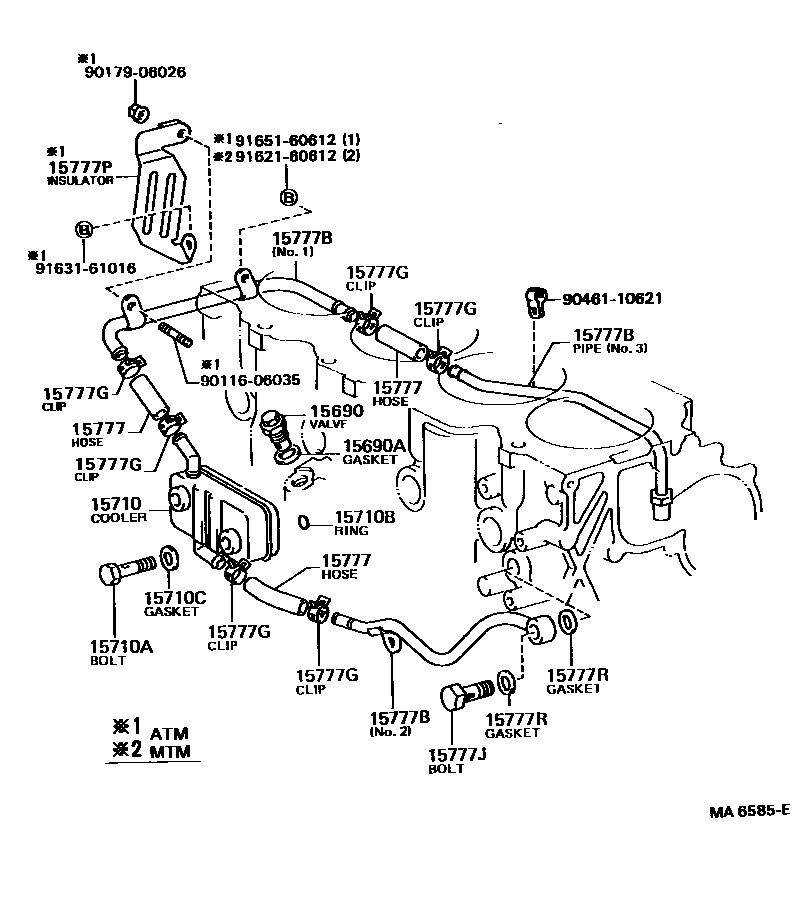

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-55020i2CT..CR21,28,30,37198808-199008

main15690-64010i2C..CR27,36198808-199201

sub15690-64011

main15690-64030i2CT..CR30,37199008-199201

main15690-64040i2CT..CR21,28199008-199201

15690AGASKET(FOR OIL COOLER RELIEF VALVE)

main90430-22003i2C..CR27,36198808-199201

15710COOLER ASSY, OIL

main15710-64010i2C..CR27,36198808-199201

main15710-64040i2CT..CR21,28,30,37198808-199008

main15710-64060i2CT..CR30,37199008-199201

main15710-64070i2CT..CR21,28199008-199201

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18009i2C..CR27,36198808-199201

15710BRING, O(FOR OIL COOLER)

main90301-22004i2C..CR27,36198808-199201

main90301-24006i2CT..CR21,28,30,37199008-199201

15710CGASKET(FOR OIL COOLER)

main90301-61003i2CT..CR21,28,30,37198808-199201

main90430-18012i2C..CR27,36198808-198811

main90430-18021i2C..CR27,36198811-199201

15777HOSE, OIL COOLER

main90445-21006i2C..CR27,36198808-199201

15777BPIPE, OIL COOLER

main15767-64010i2C..CR27,36198808-199106

sub15767-64011

main15767-64011i2C..CR27,36199106-199201

NO.1

main15767-64030i2CT..CR21,28,30,37198808-199106

sub15767-64031

main15767-64031i2CT..CR21,28,30,37199106-199201

NO.1

main15768-64020i2C..CR27,36198808-199106

sub15768-64021

main15768-64021i2C..CR27,36199106-199201

NO.2

main15768-64050i2CT..CR21,28,30,37198808-199008

main15768-64080i2CT..CR21,28,30,37199008-199106

sub15768-64081

main15768-64081i2CT..CR21,28,30,37199106-199201

NO.2

sub15768-64082

main15769-64010i2C..CR27,36198808-199008

NO.3

sub15769-64011

main15769-64010i2CT..CR21,28,30,37198908-199106

sub15769-64011

main15769-64011i2C#..CR2#,3#199106-199201

15777GCLAMP OR CRIP, HOSE

main90467-20005i2C#..CR2#,3#198808-199201

sub96134-41900

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i2C#..CR2#,3#198808-199201

main90401-20010i2CT..CR21,28,30,37199008-199201

15777PPROTECTOR, HOSE HEAT

main17168-64030i2C..CR27,36..4FC198808-199201

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20004i2C#..CR2#,3#198808-199201

9011606035

main90116-06035

9017906026

main90179-06026

9046110621

main90461-10621

9162160612

main91621-60612

9163161016

main91631-61016

9165160612

main91651-60612

18 parts on this diagram · 3 diagrams in section
