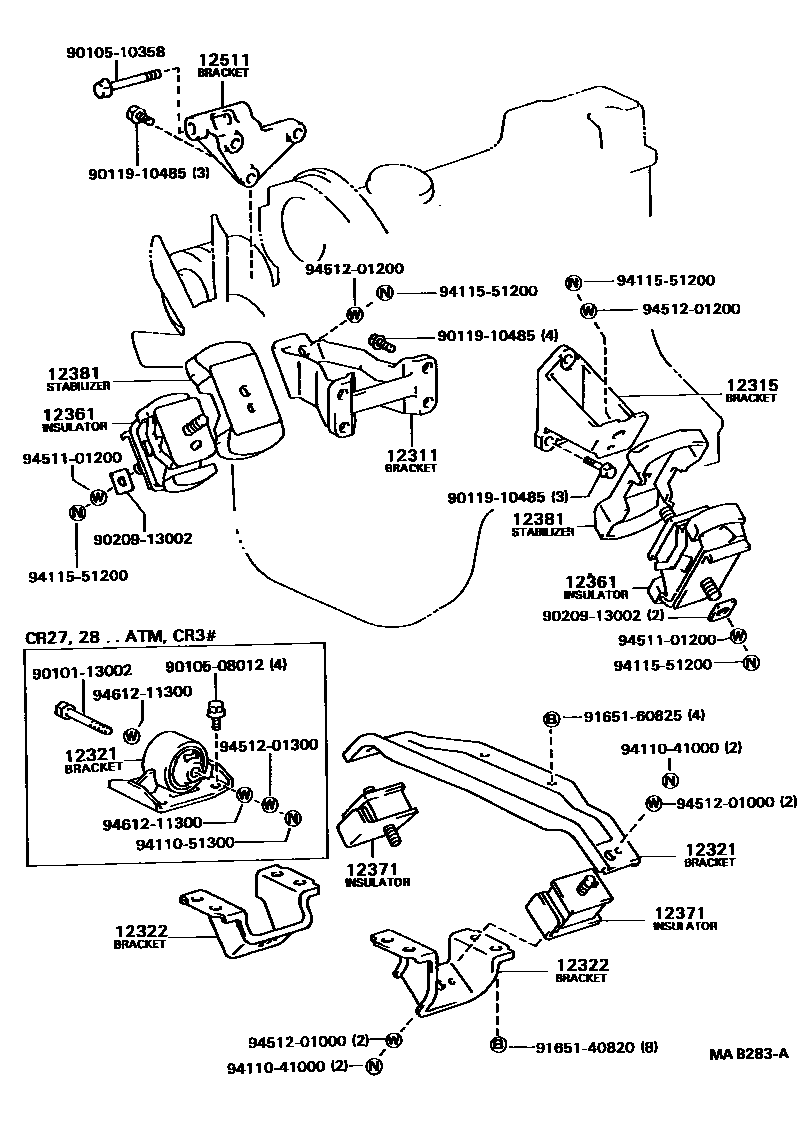

MOUNTING

0001 1 0002 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13090i4KJ..KR26198808-199008

main12301-13150i5KJ..KR27199008-199201

main12311-64060i2C#..CR2#,3#198808-199201

main12311-71010i2Y#,3YEU..YR2#,3#198808-199201

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13091i4KJ,5KJ..KR2#198808-199201

main12315-64020i2C#..CR2#,3#198808-199201

main12315-71010i2Y#,3YEU..YR2#,3#198808-199201

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-54010i2C#..CR3#; 3YEU..YR3#198808-199201

main12303-71010i2C#..CR2#..4FC; 2Y#,3YEU..YR2#..4FC198808-199201

main12321-13030i4KJ..KR26198808-199008

main12321-13060i5KJ..KR27199008-199201

main12321-64010i2C#..CR2#..5F198808-199201

main12321-71020i2Y#,3YEU..YR2#..MTM198808-199201

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-13030i2C#..CR2#..5F; 2Y#,3YEU..YR2#..MTM; 4KJ,5KJ..KR2#198808-199201

main12326-13010i2C#..CR2#..5F; 2Y#,3YEU..YR2#..MTM; 4KJ,5KJ..KR2#198808-199201

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64022×2i2C#..CR2#,3#198808-199201

main12361-71020×2i2Y#,3YEU..YR2#,3#198808-199201

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13051×2i2C#..CR2#..5F; 2Y#,3YEU..YR2#..MTM; 4KJ,5KJ..KR2#198808-199201

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i2C#..CR2#,3#198808-199201

main12381-71030×2i2Y#,3YEU..YR2#,3#198808-199201

12511BRACKET, ALTERNATOR, NO.1

main12501-73011i2Y#,3YEU..YR2#,3#198808-199201

main12511-24011i4KJ,5KJ..KR2#198808-199201

main12511-64030i2C#..CR2#,3#198808-199201

9010113002

main90101-13002

9010508012

main90105-08012

9010510358

main90105-10358

9011910485

main90119-10485

9020913002

main90209-13002

9165140820

main91651-40820

9165160825

main91651-60825

9411041000

main94110-41000

9411051300

main94110-51300

9411551200

main94115-51200

9451101200

main94511-01200

9451201000

main94512-01000

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

23 parts on this diagram · 3 diagrams in section
