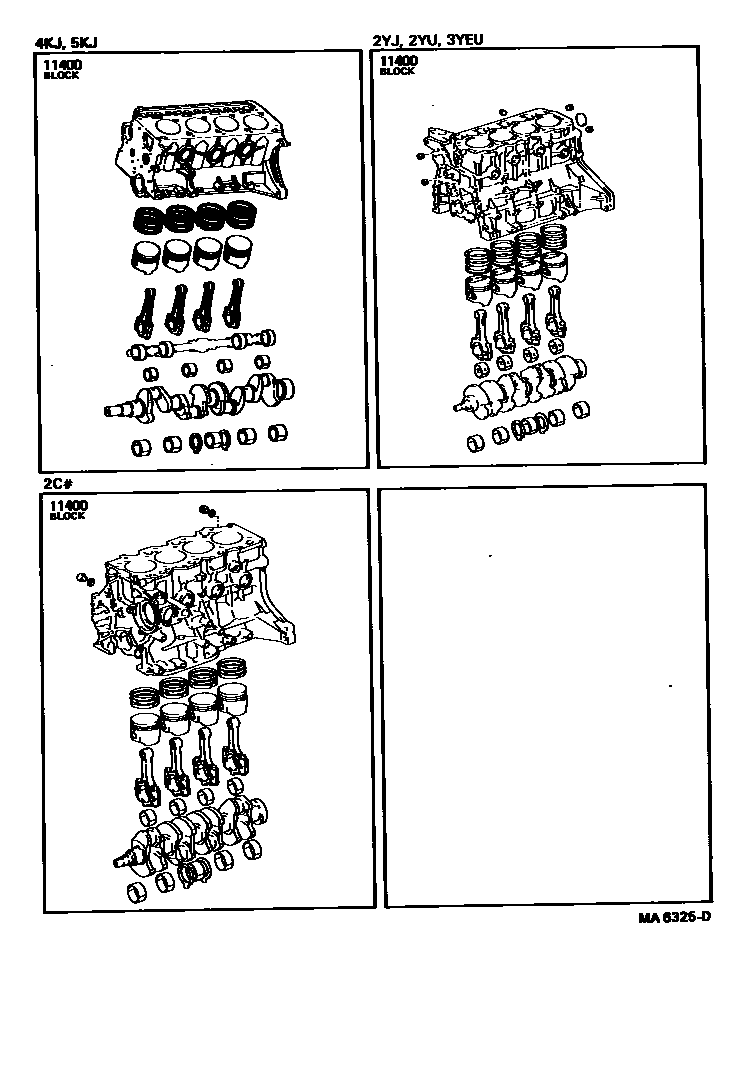

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-13011i4KJ..KR26198808-199008

main11400-13060i5KJ..KR27199008-199201

main11400-64260i2CT..CR21,28,30,37198808-199006

main11400-64270i2C..CR27,36198808-199110

main11400-64271i2C..CR27,36199110-199201

main11400-64360i2CT..CR21,28,30,37199006-199110

main11400-64361i2CT..CR21,28,30,37199110-199201

main11400-72021i2YU..YR20,28;2YJ..YR25..4FC,4H,5F198808-199201

main11400-73011i3YEU..YR21,3#198808-198908

main11400-73012i3YEU..YR21,3#198908-199201

1 parts on this diagram · 1 diagram in section
