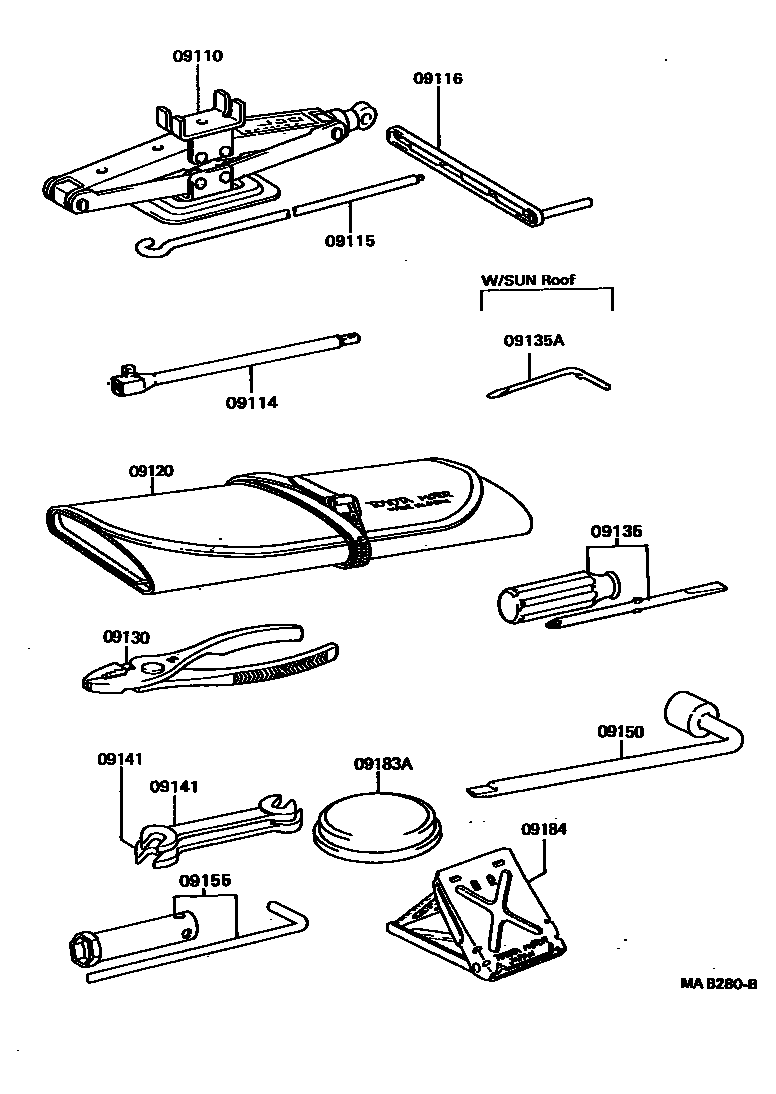

STANDARD TOOL

09110JACK ASSY

main09110-28070iCR2#,3#,KR2#,YR2#,3#198808-199201

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60050iCR2#,3#,KR2#,YR2#,3#198904-199201

09115ROD SUB-ASSY, JACK HANDLE

main09115-27040iCR2#,3#,KR26,YR2#,3#198808-198904

main09115-28030iCR2#,3#,KR2#,YR2#,3#198904-199201

09116LEVER, JACK HANDLE

main09116-35040iCR2#,3#,KR26,YR2#,3#198808-198810

main09116-35041iCR2#,3#,KR2#,YR2#,3#198810-199201

09120BAG, TOOL

main09120-26021iCR2#,KR2#,YR2#198808-199201

main09120-28010iCR3#,YR3#198808-199201

09130PLIERS

main99913-11500iCR2#,3#,KR2#,YR2#,3#198808-199201

09135DRIVER, SCREW

main99915-10700iCR2#,3#,KR2#,YR2#,3#198808-199201

09135ABIT, SCREW DRIVER

main09135-00012iCR30..E;CR21,YR20,21..HRF..(E,Q)198808-199201

09141SPANNER

main99914-10810iCR2#,3#,KR2#,YR2#,3#198808-199201

main99914-11214iCR2#,3#,KR2#,YR2#,3#198808-199201

09150WRENCH, HUB NUT BOX

main09150-35020iCR2#,3#,KR2#,YR2#,3#198808-199201

09155WRENCH, SPARK PLUG

main09155-41010iYR25198808-199201

main09155-44010iKR2#198808-199201

09183AREPLACER, WHEEL CAP

main09183-28010iCR3#,YR3#198808-199201

09184STOPPER, WHEEL

main09184-00010iCR2#,3#,KR2#,YR2#,3#198808-199201

13 parts on this diagram · 1 diagram in section
