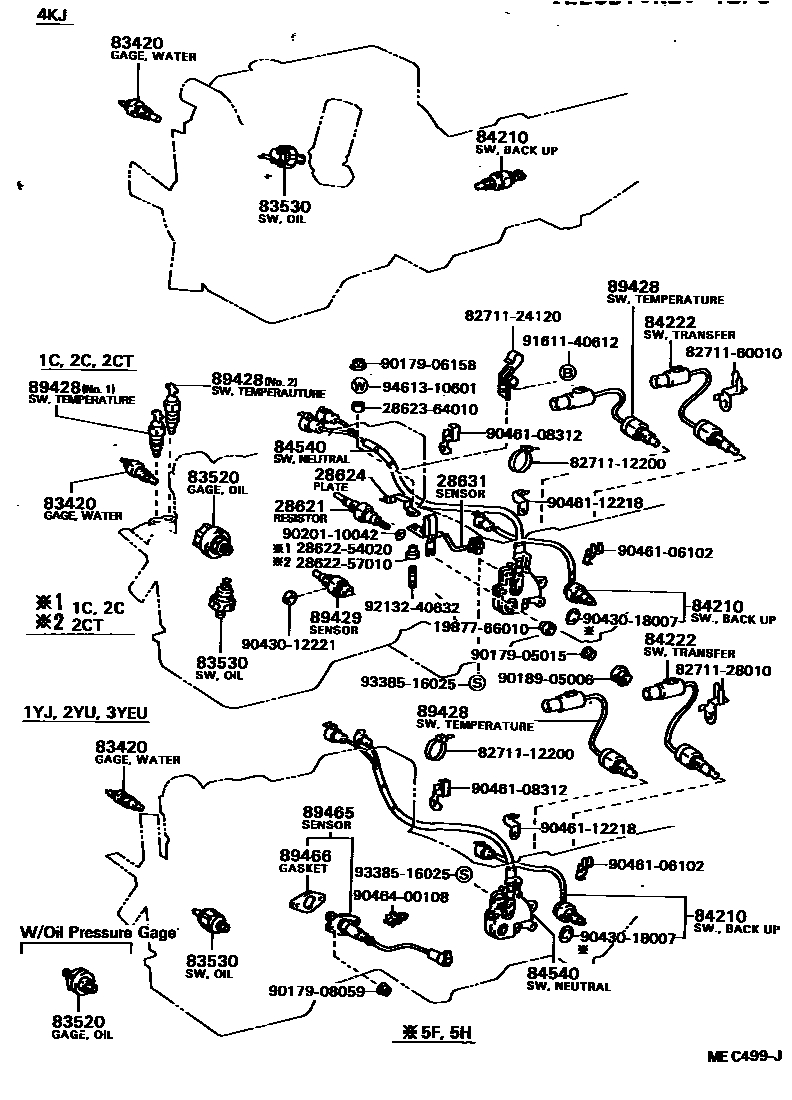

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28621RESISTOR, GLOW PLUG

main28621-64011i1C..CR26198211-198808

main28621-64020i2C..CR21198304-198405

28624PLATE, CURRENT SENSOR

main28624-64010i2C..CR21..E198304-198508

main28624-64030i2CT..CR21,28,30,37198508-198808

28631SENSOR, GLOW PLUG CURRENT

main28631-64021i1C,2C..CR2#,36198211-198708

main28631-64050i2CT..CR21,30198508-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCR2#,3#,KR26,YR2#,3#198211-198808

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iYR20..MRF..5F..G198310-198311

WHITE WAGON

main83520-14022iCR21,YR21..E,G,X; YR20,26..E,N,X198407-198408

W/TACHOMETER

main83520-14023iYR20,21..E,Q; YR3#198705-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKR26,YR20,26..D,G,N,Q,R198211-198403

main83530-12040iKR26198403-198501

main83530-14030iYR26,28;YR20..MRF..(D,G);YR20..HRF..5F..G198508-198808

main83530-14040iKR26198501-198511

main83530-30042iCR2#..D,G,N198409-198503

main83530-30060iCR2#,3#198508-198808

main83530-30080iKR26198511-198808

main83530-36011iCR2#..D,G,N198211-198409

84210SWITCH ASSY, BACK-UP LAMP

main84210-26010iKR26,YR26..4H198211-198508

main84210-26030iKR26,YR26..4H198508-198808

main84210-60021iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iCR3#,YR3#198510-198808

84540SWITCH ASSY, NEUTRAL START

main84540-14100iYR2#..4FC198211-198508

main84540-14110iCR21,27..4FC198408-198508

main84540-35010iYR20..MRF..4FC;YR2#,3#..(HRF,SRF)..4FC..(B,E,N,Q)198508-198808

main84540-35020iCR21,27,28,30..4FC198508-198808

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-27010iCR37198708-198808

W/SINGLE AIR CONDITIONER,NO.1

main89428-28030iYR21,30198508-198808

W/*ODAC OR W/*AAC

main89428-28040iCR30,YR3#..4FC198510-198808

TRANSMISSION

main89428-28060iCR30..4FC198805-198808

W/SUB RADIATOR,NO.2

89429SENSOR, OIL TEMPERATURE

main89422-30020iCR2#,3#198211-198808

89465SENSOR, OXYGEN

main89465-19065iYR20,21,28,3#198211-198808

89466GASKET, OXYGEN SENSOR

main89466-30010iYR20,21,28,3#198211-198808

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

8271128010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28010

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

9017905015

main90179-05015

9017906158

main90179-06158

9017908059

main90179-08059

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018007

main90430-18007

9046106102

main90461-06102

9046108312

main90461-08312

9046112218

main90461-12218

9046400108

main90464-00108

9161140612

main91611-40612

9213240632

main92132-40632

9338516025

main93385-16025

9461310601

main94613-10601

36 parts on this diagram · 7 diagrams in section
