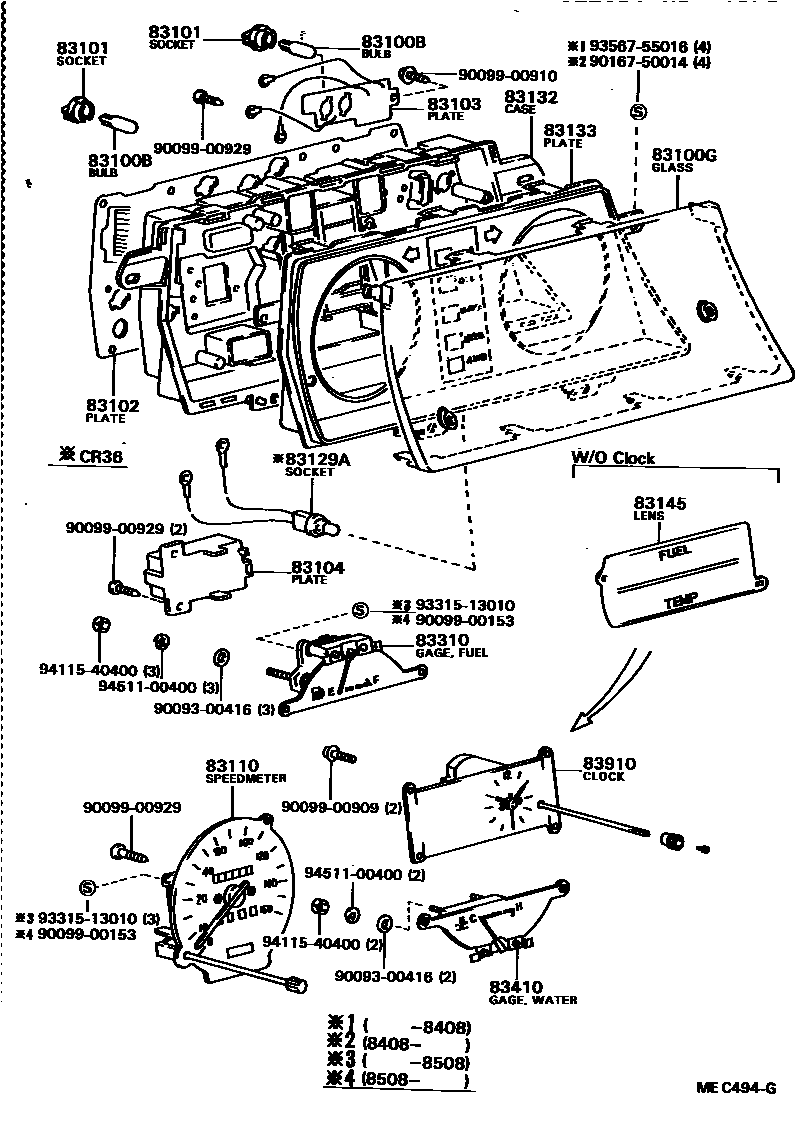

METER

0001 1 0002 1 0005 1 0006 1 0008 1

83100BBULB, COMBINATION METER, NO.1

main83109-28010×4iCR2#,3#,KR26,YR2#,3#198211-198808

main83109-87001iYR20,21..Q198211-198508

12V 1.4W,W/GREEN CAP

main90981-11018iCR21,28..B,D,G; CR21,YR20,21..E,Q; CR26,27..N198508-198808

main99132-12034×10iCR2#,3#,KR26,YR2#,3#198408-198808

83100GGLASS, COMBINATION METER

main83138-87003iCR26,YR26..D198608-198808

W/CLOCK

main83138-87005iCR21,26,28,36,KR26,YR20,26,28..B,D,R198211-198808

main83138-87007iCR21,YR20..E,Q,X; YR21198408-198508

W/TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×10iCR2#,KR26,YR2#198211-198408

12V 3.4W

main83101-14040×13iCR21,28..B,D,G; CR21,YR20,21..E,Q; CR26,27..N198508-198808

12V 1.4W

main83101-28010×4iCR2#,KR26,YR2#198211-198508

12V 3.4W,W/GREEN CAP

main83101-87001iYR20,21..Q198211-198508

12V 1.4W,W/GREEN CAP

main83101-87002iYR20,21..Q198211-198508

12V 3.4W,W/GREEN CAP (LONG)

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-87001iYR20..MRF..5F..G198310-198311

WHITE WAGON

main83247-87005iCR21..E198408-198508

main83247-87007iKR26,YR20,26..D,G,N,R198211-198508

main83247-87011iCR26198211-198408

main83247-87015iYR20,21..Q198211-198508

W/*DS

main83247-87027iCR2#..D,G,N198408-198508

main83247-87031iYR20..E,Q198508-198808

main83247-87033iYR21198508-198808

main83247-87035iCR21..HRF198508-198808

main83247-87043iKR26,YR26..4H198508-198808

main83247-87045iYR26..N198508-198808

main83247-87047iCR26,36..D198508-198808

main83247-87049iCR21,28..B,D,G; CR26,27..N198508-198808

main83247-87057iYR28;YR20..MRF..(D,G);YR20..HRF..5F..G198508-198808

main83247-95D01iYR3#..5F198510-198808

main83247-95D03iYR3#..4FC198510-198808

main83247-95D05iCR30,37..5F198510-198808

main83247-95D07iCR30..4FC198510-198808

main83247-95D15iCR36..N198510-198808

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-28290iCR30,YR3#..4FC198510-198808

main83247-28770iYR20..E,Q198508-198808

main83247-87002iCR21,28..B,D,G198708-198808

main83247-95D13iCR30,37,YR3#..5F198510-198808

83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

main83247-87004iCR21,28..B,D,G198708-198808

main83247-87059iCR21..HRF198508-198808

83110SPEEDOMETER ASSY

main83110-22880iYR20,21..Q198211-198408

W/*DS

main83110-87007iKR26,YR20,26..D,G,N,R198211-198408

main83110-87008iCR26198211-198408

main83110-87013iCR21,YR20,26..E,N,X198211-198408

W/TACHOMETER

main83110-87018iYR21..G,X198305-198408

main83110-87026iCR21,26,28..B,D,G198708-198808

main83110-87027iYR20..E,Q,X198408-198808

main83110-87028iYR21,3#198408-198808

main83110-87029iCR37198708-198808

main83110-87030iCR2#..B,D,G,N198408-198708

main83110-87031iYR20,21..Q198408-198508

W/*DS

83129ABULB AND SOCKET

main83129-95D01iCR36198510-198808

83132CASE, COMBINATION METER

main83132-28090iCR30,YR3#..4FC198510-198808

main83132-87003iCR21,28..B,D,G198708-198808

main83132-87013iYR26..N198211-198408

W/TACHOMETER

main83132-87015iYR20..E,X198211-198408

main83132-87017iCR21..E198304-198508

main83132-87019iYR21198408-198508

main83132-87021iKR26,YR26198508-198607

main83132-87023iYR20..D,G; YR26..N198211-198508

main83132-87025iCR26..D198211-198808

main83132-87027iCR21..D,G; CR26,27..N198408-198508

main83132-87029iYR20,21..Q198211-198508

W/*DS

main83132-87035iCR26,27..N198508-198808

main83132-87041iYR28;YR20..MRF..(D,G);YR20..HRF..5F..G198508-198808

main83132-95D05iCR36..D198510-198808

main83132-95D07iCR36..N198510-198808

83133PLATE, COMBINATION METER, NO.1

main83133-87019iCR21,YR20,26..E,N,X198211-198408

W/TACHOMETER

main83133-87021iYR20,28..B,D,G198211-198808

main83133-87023iCR21,28..B,D,G198408-198708

main83133-87029iYR21..Q198305-198408

W/*DS

main83133-87031iYR20..Q198211-198408

W/*DS

main83133-87037iYR21..Q198408-198508

W/*DS

main83133-87039iYR20..Q198408-198508

W/*DS

main83133-87042iCR21,28..B,D,G198708-198808

main83133-95D01iCR36198510-198808

83145LENS, METER, NO.1

main83145-87001iKR26,YR26..4H198508-198808

main83145-87003iCR26198211-198408

main83145-87007iCR26,36..D198508-198808

main83145-87019iCR21,28..B,D198508-198808

main83145-87023iYR20,28..B,D198508-198808

83310GAGE ASSY, FUEL RECEIVER

main83243-87001iCR21,YR20,21..E,Q198508-198808

W/TACHOMETER

main83243-87003iCR26,36,KR26,YR26..D,R198211-198808

main83243-87005iCR21,28..B,D,G; CR26,27,36..N198408-198808

main83243-95D01iCR30,37,YR3#..5F198510-198808

main83243-95D03iCR30,YR3#..4FC198510-198808

main83310-87005iYR20,21..Q198211-198403

W/*DS

main83310-87006iYR20,21..Q198403-198503

W/*DS

main83310-87007iYR20,21..Q198503-198508

W/*DS

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-87001iYR26..N198305-198408

W/TACHOMETER

main83244-87003iCR2#,36,KR26,YR20,26,28..B,D,G,N,R198211-198609

main83244-87005iCR21..E198304-198508

main83244-87006iYR20..E,Q,X; YR21198408-198508

main83244-87007iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,36,KR26,YR26,28..B,D,G,N198609-198808

main83244-87011iCR30198510-198609

main83244-87013iCR21..HRF; CR30,37198609-198808

main83244-95D01iYR20,21,3#..B,E,G,Q198709-198808

83910CLOCK ASSY

main83910-87004iYR20..D,G; YR26..N198211-198408

ANALOGUE

main83910-87005iYR20..MRF..5F..G198310-198311

WHITE WAGON,DIGITAL

main83910-87007iYR20,26..D,G,N198408-198508

ANALOGUE

main83910-87008iCR36..N198510-198808

ANALOGUE

main83910-87015iYR20..MRF..(D,G);YR20..HRF..5F..G;KR26,YR26,28..B,D,N198508-198808

main83910-87016iCR21,28,36..B,D,G; CR26,27198508-198808

ANALOGUE

main83910-87019iYR20..E,Q;CR21,30,YR21,30..HRF198508-198808

DIGITAL

main87910-87008iCR26..N198408-198508

ANALOGUE

9009300416

main90093-00416

9009900153

main90099-00153

9009900909

main90099-00909

9009900910

main90099-00910

9009900929

main90099-00929

9016750014

main90167-50014

9331513010

main93315-13010

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

24 parts on this diagram · 5 diagrams in section
