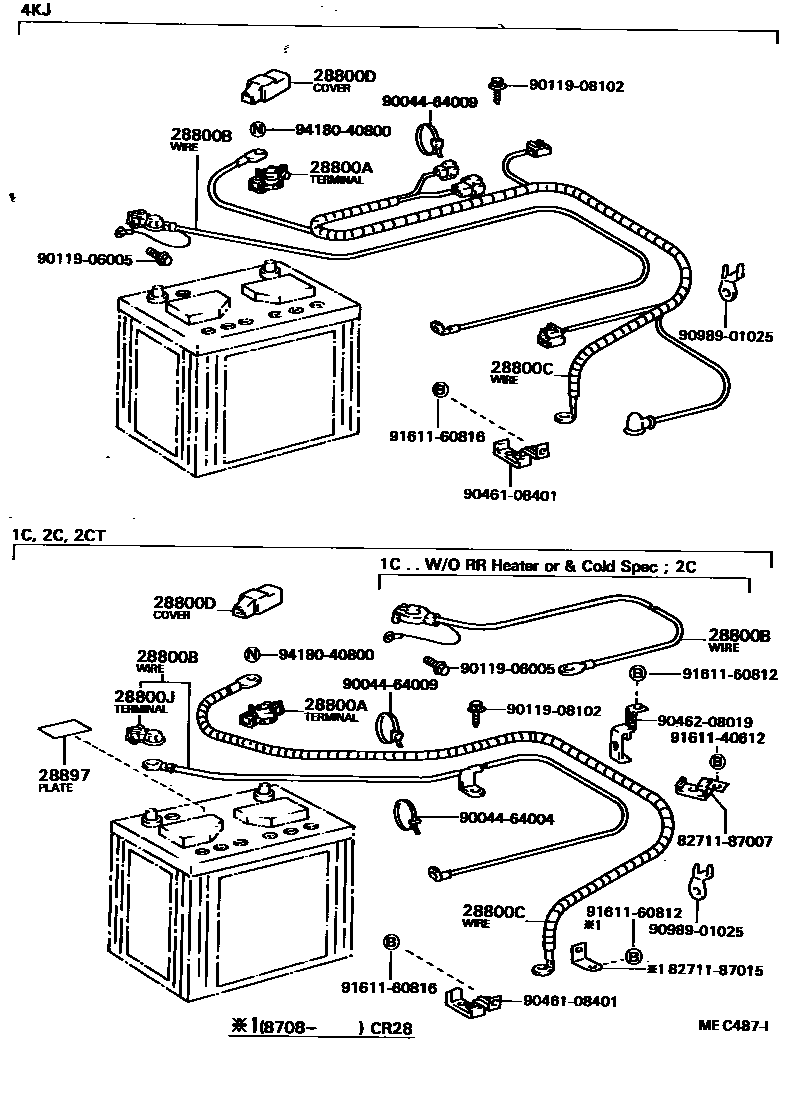

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05027i1YJ..YR26..V4D..N198211-198508

W/RR HEATER

main90982-05028i4KJ,1YJ,2YU..KR26,YR2#198211-198305

main90982-05030i1C,2C#..CR2#,3#198211-198808

28800BCABLE, BATTERY TO GROUND

main82123-87001i1YJ..YR26..V4D..N; 2YU,3YEU..YR20,21,28198211-198808

W/RR HEATER

main82123-87002i1C..CR26..V4D..05S198211-198408

W/RR HEATER OR COLD SPEC

main82123-87003i4KJ,1YJ,2YU..KR26,YR26,28198211-198808

W/O RR HEATER

main82123-87004i1C..CR26..SRF..02S198708-198808

W/COOLING FAN

main82123-87007i2CT..CR28198708-198808

main82123-87008i1C..CR26..SRF..02S198408-198701

W/COOLING FAN

main82123-87009i2C..CR28; 2CT..CR21..HRF..4FC198508-198808

W/RR HEATER OR COLD SPEC

main82123-87011i2CT..CR21..HRF..5F198508-198808

main82123-95D00i3YEU..YR36198608-198808

W/RR HEATER

main82123-95D01i2CT..CR30..4FC198510-198808

main82123-95D02i2C..CR36198510-198808

main82123-95D03i2C..CR36..V4D198510-198808

W/RR HEATER OR COLD SPEC

main82123-95D06i2CT..CR37198708-198808

W/RR HEATER OR COLD SPEC

main82123-95D07i3YEU..YR36198608-198808

main82123-95D08i2CT..CR37198708-198808

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-87001i1YJ..YR26..V4D..N; 2YU,3YEU..YR20,21198211-198808

W/RR HEATER

main82122-87002i1C..CR26..V4D..05S198211-198408

W/RR HEATER OR COLD SPEC

main82122-87004i1YJ,2YU..YR26,28198211-198808

main82122-87005i1C,2C..CR26,27198211-198508

main82122-87006i4KJ..KR26198211-198808

main82122-87008i2CT..CR28198708-198808

main82122-87009i1C..CR26..SRF..02S198408-198701

W/COOLING FAN

main82122-87010i1C,2C..CR26,27..V4D198508-198808

W/RR HEATER OR COLD SPEC

main82122-87011i2C..CR21,27..4FC198408-198508

COLD SPEC

main82122-87013i2CT..CR21; 2CT..CR28198708-198808

W/RR HEATER OR COLD SPEC

main82122-87014i2CT..CR21..4FC198508-198708

COLD SPEC

main82122-87015i1C,2C..CR26,27,28198508-198808

main82122-87016i2C..CR27..V5D198608-198708

COLD SPEC

main82122-95D00i3YEU..YR30198510-198808

main82122-95D01i2CT..CR37198708-198808

W/RR HEATER OR COLD SPEC

main82122-95D02i2CT..CR30..4FC198510-198708

COLD SPEC

main82122-95D03i2C..CR36198510-198808

main82122-95D04i2C..CR36..V4D198510-198808

W/RR HEATER OR COLD SPEC

main82122-95D06i3YEU..YR36198608-198808

main82122-95D08i2CT..CR37198708-198808

main82122-95D09i2CT..CR30..4FC198708-198808

COLD SPEC

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i1C,2C#,4KJ,1YJ,2YU,3YEU..CR2#,3#,KR26,YR2#,30198211-198603

main82821-95D00i2C#,3YEU..CR3#,YR3#198603-198808

28800JTERMINAL, BATTERY NEGATIVE

28897PLATE, BATTERY CAUTION

main28897-43010i1C..CR26198211-198304

8271187007WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-87007

8271187015WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-87015

9004464004

main90044-64004

9004464009

main90044-64009

9011906005

main90119-06005

9011908102

main90119-08102

9046108401

main90461-08401

9046208019

main90462-08019

9098901025

main90989-01025

9161140612

main91611-40612

9161160812

main91611-60812

9161160816

main91611-60816

9418040800

main94180-40800

19 parts on this diagram · 2 diagrams in section
