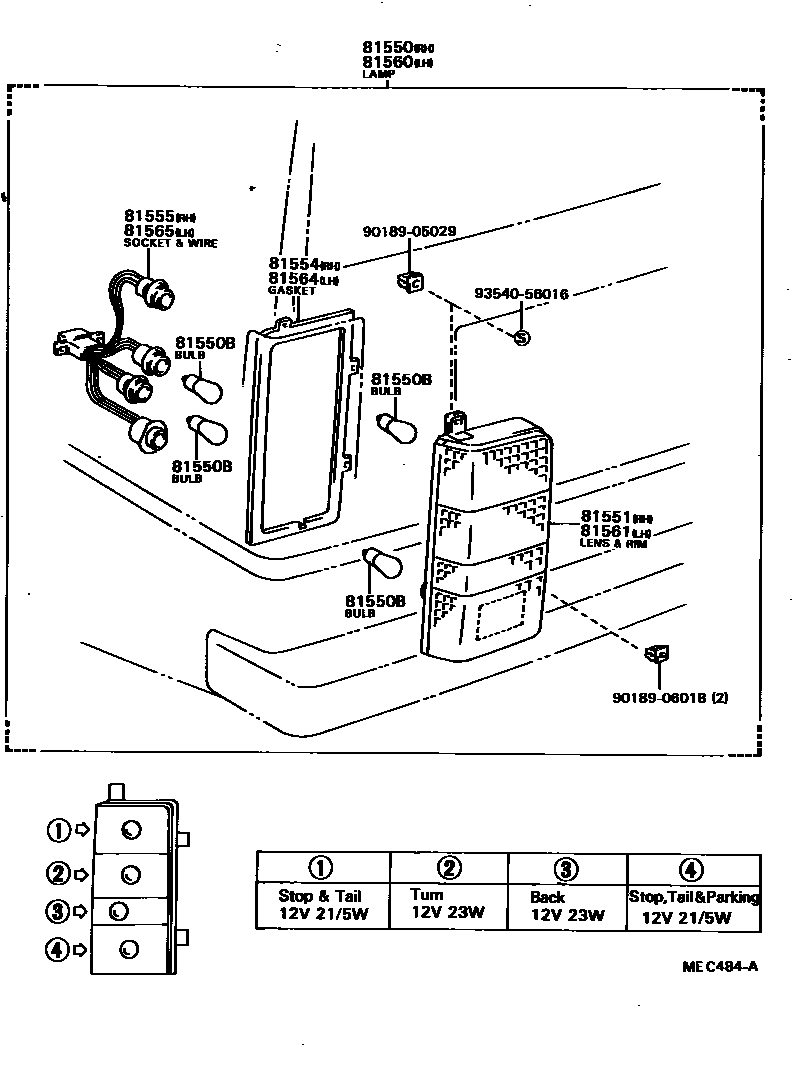

REAR COMBINATION LAMP

0001 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80149iCR2#,KR26,YR2#198211-198408

main81550-80243iCR2#,KR26,YR2#198408-198508

main81550-87006iCR2#,36,37,KR26,YR20,26,28,36..B,D,N198608-198808

main81550-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iCR2#,3#,KR26,YR2#,3#198211-198808

main99132-21210×4iCR2#,3#,KR26,YR2#,3#198211-198808

81551LENS, REAR COMBINATION LAMP, RH

main81551-87003iCR2#,KR26,YR2#198211-198408

main81551-87006iCR2#,KR26,YR2#198408-198508

main81551-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-87003iCR2#,KR26,YR2#198211-198508

main81554-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-87003iCR2#,KR26,YR2#198211-198508

main81555-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80154iCR2#,KR26,YR2#198211-198408

main81560-80251iCR2#,KR26,YR2#198408-198508

main81560-87006iCR2#,36,37,KR26,YR20,26,28,36..B,D,N198608-198808

main81560-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-87003iCR2#,KR26,YR2#198211-198408

main81561-87006iCR2#,36,37,KR26,YR20,26,28,36..B,D,N,R198508-198808

main81561-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-87003iCR2#,KR26,YR2#198211-198508

main81564-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-87003iCR2#,KR26,YR2#198211-198508

main81555-87007iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..E,G,Q198508-198808

9018905029

main90189-05029

9018906018

main90189-06018

9354056016

main93540-56016

12 parts on this diagram · 2 diagrams in section
