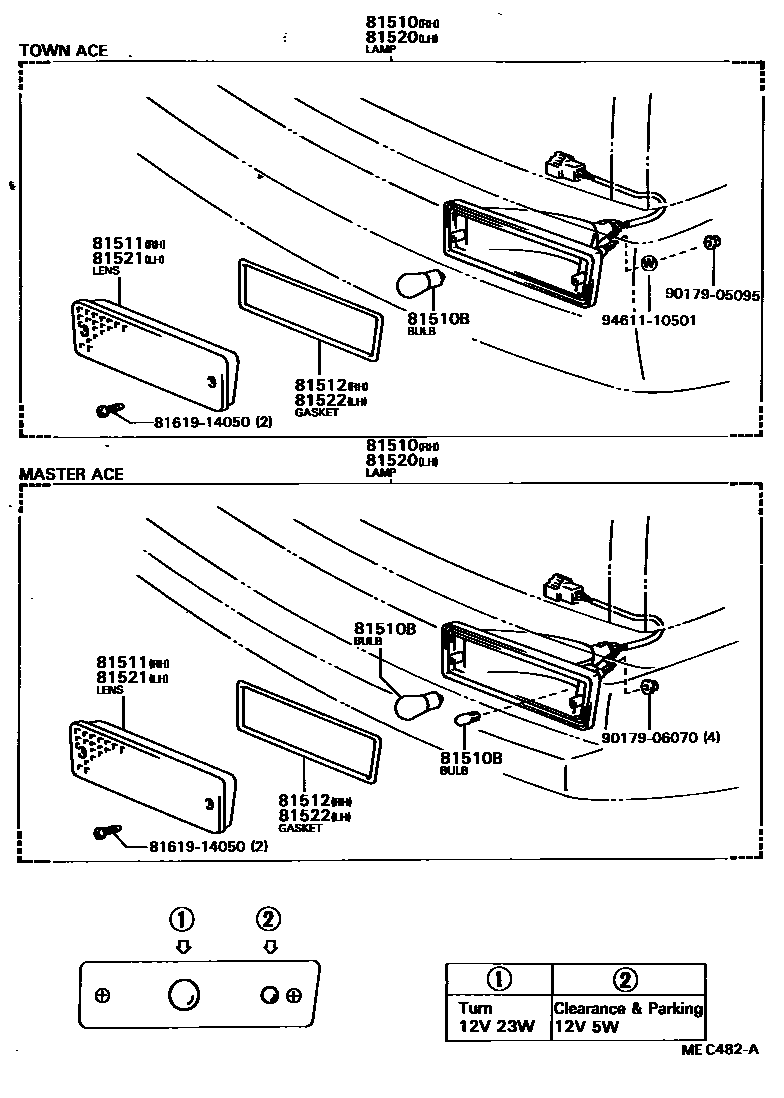

FRONT TURN SIGNAL LAMP

0001 1 0002 1 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29805iCR2#,KR26,YR2#198211-198508

TOWN ACE

main81510-29825iCR21,YR20,21198211-198508

MASTER ACE

main81510-29865iCR21..E; YR20,21..Q198408-198508

TOWN ACE,URETHANE BUMPER

main81510-80031iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81510-80032iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iCR2#,3#,KR26,YR2#,3#198211-198808

main99132-12050×2iCR21,YR20,21198211-198508

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-87004iCR2#,KR26,YR2#198211-198508

main81511-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81511-87010iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-87004iCR2#,KR26,YR2#198211-198508

main81512-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29795iCR2#,KR26,YR2#198211-198508

TOWN ACE

main81520-29815iCR21,YR20,21198211-198508

MASTER ACE

main81520-29855iCR21..E; YR20,21..Q198408-198508

TOWN ACE,URETHANE BUMPER

main81520-80031iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81520-80032iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-87003iCR2#,KR26,YR2#198211-198508

main81521-87008iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81521-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-87004iCR2#,KR26,YR2#198211-198508

main81512-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

8161914050

main81619-14050

9017905095

main90179-05095

9017906070

main90179-06070

9461110501

main94611-10501

11 parts on this diagram · 3 diagrams in section
