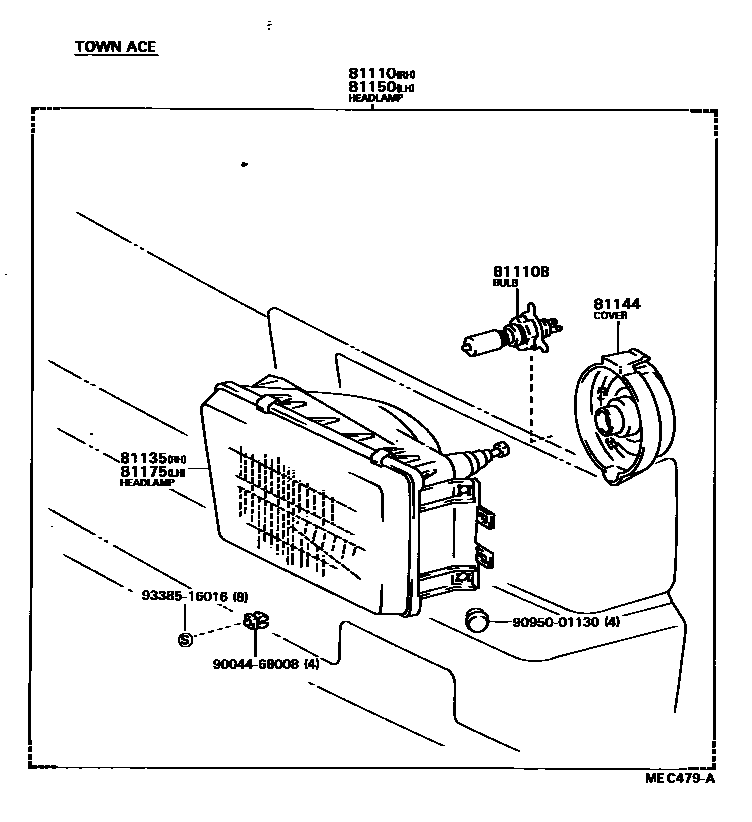

HEADLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

81110HEADLAMP ASSY, RH

main81110-80277iCR21,YR20..08S,09S198211-198508

TOWN ACE

main81110-80278iYR20..HRF..E198404-198405

WHITE EXTRA

main81110-80281iCR21,YR20..08S,09S198211-198508

MASTER ACE

main81110-80282iYR21;YR20..07S198211-198508

MASTER ACE,HALOGEN

main81110-80283iCR26,27,36,KR26,YR26198211-198808

main81110-87013iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

TOWN ACE

main81110-87014iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE HALOGEN

main81110-87015iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

MASTER ACE

main81110-87016iCR21,30,YR20,21,30..E,Q198508-198808

MASTER ACE,HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iCR21,YR20..HRF..E198504-198508

main90981-13017×2iYR21;YR20..07S198211-198508

main90981-13022×2iCR21,YR20..08S,09S198211-198508

81135UNIT ASSY, HEADLAMP, RH

main81130-87013iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

TOWN ACE

main81130-87014iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE HALOGEN

main81135-87006iCR21,YR20..08S,09S198211-198508

main81135-87007iCR21,YR20..HRF..E198504-198508

WHITE EXTRA

81144COVER, HEADLAMP, NO.1

main81139-20730×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

main81139-95714×2iCR21,YR20,21198211-198508

81150HEADLAMP ASSY, LH

main81150-80274iCR21,YR20..08S,09S198211-198508

TOWN ACE

main81150-80275iYR20..HRF..E198404-198405

WHITE EXTRA

main81150-80278iCR21,YR20..08S,09S198211-198508

MASTER ACE

main81150-80279iCR21,YR20..HRF..E198501-198502

SURF SPECIAL

main81150-80280iCR26,27,36,KR26,YR26198211-198808

main81150-87013iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

TOWN ACE

main81150-87014iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE,HALOGEN

main81150-87015iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

MASTER ACE

main81150-87016iCR21,30,YR20,21,30..E,Q198508-198808

MASTER ACE,HALOGEN

81175UNIT ASSY, HEADLAMP, LH

main81170-87013iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

TOWN ACE

main81170-87014iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE HALOGEN

main81175-87006iCR21,YR20..08S,09S198211-198508

main81175-87007iYR21;YR20..07S198211-198508

HALOGEN

9004468008

main90044-68008

9095001130

main90950-01130

9338516016

main93385-16016

9 parts on this diagram · 5 diagrams in section
