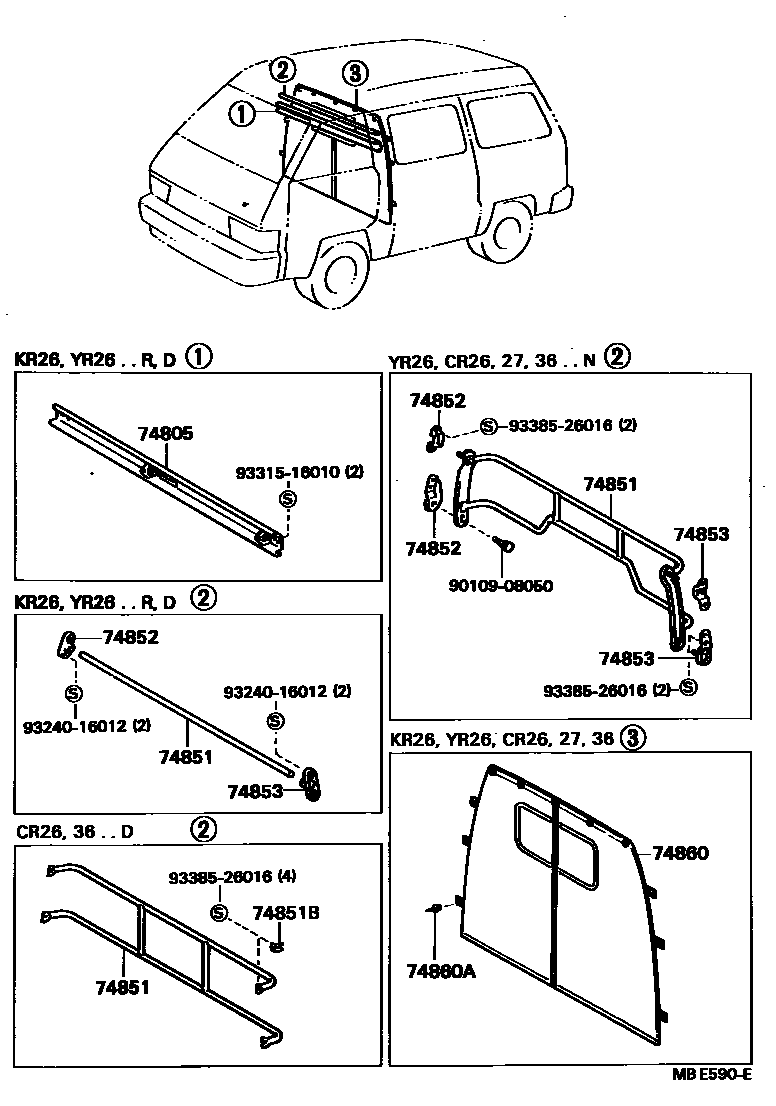

SEPARATOR & SEPARATOR CURTAIN

74805SEPARATOR SUB-ASSY

main74805-87003iKR26,YR26..4H198211-198808

74851BAR, SEPARATOR

main74850-87003iCR26,36..D198211-198808

main74850-87004iCR26,27,36,YR26..N198211-198808

main74855-87004iKR26,YR26..4H198211-198808

74851BSHIM, SEPARATOR BAR

main90565-07005iCR26,36..D198211-198808

74852BRACKET, SEPARATOR, RH

main74851-87003iCR26,27,36,YR26..N198211-198808

UPR

main74853-87001iCR26,27,36,YR26..N198211-198808

LWR

main74855-95700iKR26,YR26..4H198211-198808

74853BRACKET, SEPARATOR, LH

main74852-87002iCR26,27,36,YR26..N198211-198808

UPR

main74854-87002iCR26,27,36,YR26..N198211-198808

LWR

main74855-95700iKR26,YR26..4H198211-198808

74860CURTAIN ASSY, SEPARATE

main74870-87003iCR26,27,36,KR26,YR26..SRF198305-198808

main74870-87007iCR26,27,36,KR26,YR26..HRF198305-198808

74860AHOOK, MALE (FOR SEPARATE CURTAIN SET HOOK)

main58521-87202×11iCR26,27,36,KR26,YR26..HRF; CR26,27,36,KR26,YR26..SRF198305-198808

9010908050

main90109-08050

9324016012

main93240-16012

9331516010

main93315-16010

9338526016

main93385-26016

11 parts on this diagram · 1 diagram in section
