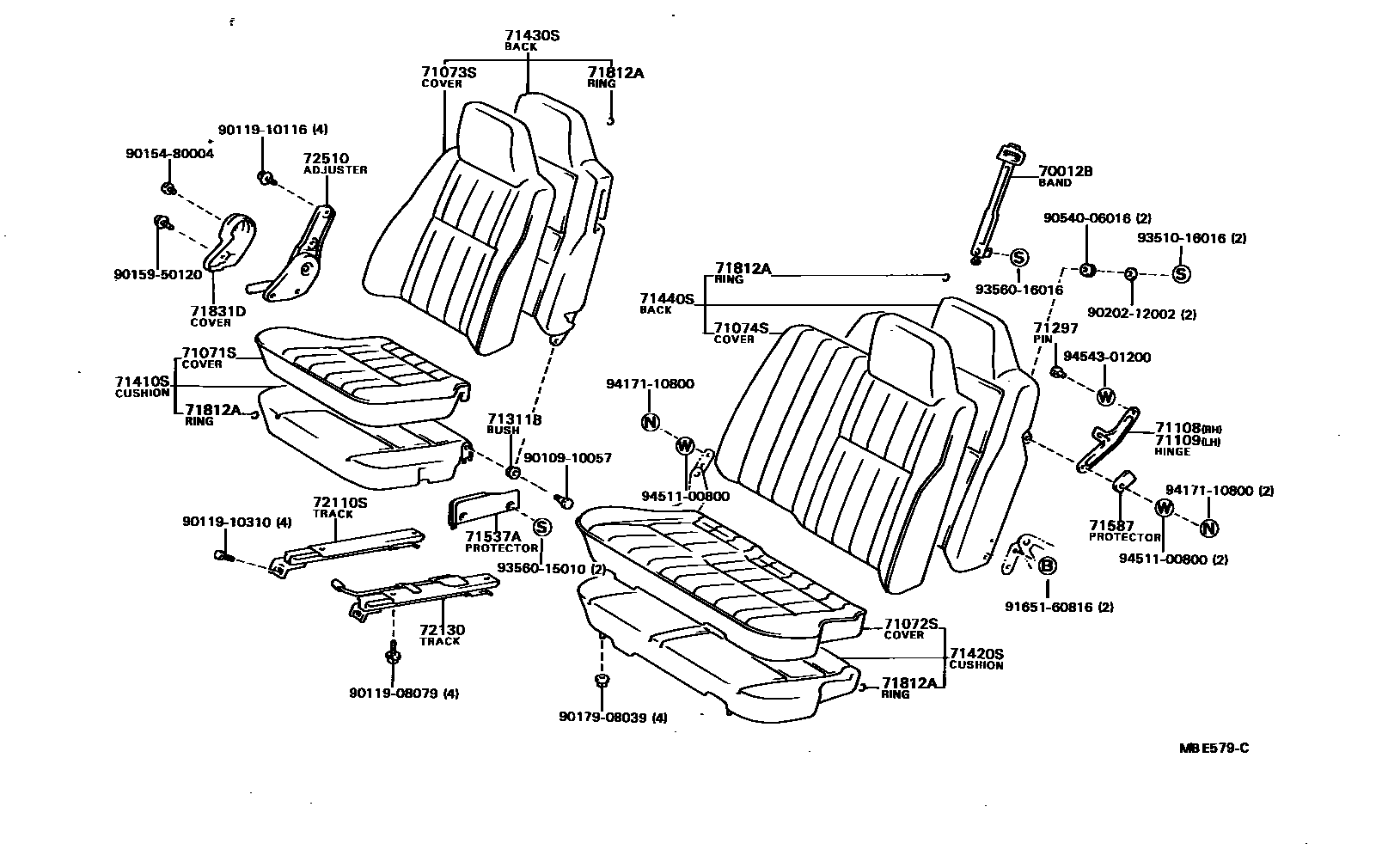

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1

70012BACK ASSY, NO.1 SEAT

main71480-87010-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198608-198808

FB,BROWN,BROWN,TRIM4#

main71480-87017-02iYR20..G198211-198308

W/*SS,FB,WINE,RED/MAROON,TRIM4#

main71480-87017-12iYR20..G198308-198408

W/*SS,FB,WINE,RED/MAROON,TRIM4#

main71480-87018-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71480-87018-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71480-87018-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71480-87018-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71480-87019-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71480-87019-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71480-87019-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71480-87019-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71480-87022-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71480-87022-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71480-87022-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71480-87022-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71480-87024iYR21..G198305-198408

FB

main71480-87024-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71480-87026-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71480-87026-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198608

FB,BROWN,BROWN,TRIM4#

main71480-87027-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71480-87027-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71480-87028-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71480-87028-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71480-87029-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71480-87029-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main79140-87001-04iCR21,30,YR20,21,30..E198508-198608

FB,BLUE,BLUE,TRIM8#

main79140-87001-06iCR21,30,YR20,21,30..E198508-198608

FB,BROWN,BROWN,TRIM4#

main79140-87002-04iCR21,30,YR20,21..Q198508-198608

FB,BLUE,BLUE,TRIM8#

main79140-87002-06iCR21,30,YR20,21..Q198508-198608

FB,BROWN,BROWN,TRIM4#

main79140-87010-04iCR21,30,YR20,21,30..E198608-198808

FB,BLUE,BLUE,TRIM8#

main79140-87010-06iCR21,30,YR20,21,30..E198608-198808

FB,BROWN,BROWN,TRIM4#

main79140-87018-04iCR21,30,YR21,30..Q198608-198801

FB,BLUE,BLUE,TRIM8#

main79140-87018-06iCR21,30,YR21,30..Q198608-198801

FB,BROWN,BROWN,TRIM4#

main79140-87029-04iCR21,30,YR21,30..Q198801-198808

FB,BLUE,BLUE,TRIM8#

main79140-87029-06iCR21,30,YR21,30..Q198801-198808

FB,BROWN,BROWN,TRIM4#

main79150-87005-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main79150-87005-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58936-87001iKR26,YR26..4H198211-198808

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-87037iKR26198211-198408

VL

main71071-87037-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71071-87037-06iKR26198508-198808

VL,BROWN,BROWN,TRIM4#

main71071-87038iCR26,YR20,26..D198211-198408

PF

main71071-87038-02iCR21,26,YR20,26..D198408-198508

PF,WINE,WINE,TRIM4#

main71071-87038-06iCR21,26,28,36,37,YR20,26,28,36..B,D198508-198808

PF,BROWN,BROWN,TRIM4#

main71071-87039-02iYR20..G198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71071-87039-12iYR20..G198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71071-87040-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71071-87040-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71071-87040-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71071-87040-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71071-87040-24iYR20..HRF..E198404-198405

WHITE EXTRA,SURF SPECIAL,BLUE,BLUE,TRIM1#

main71071-87042-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71071-87042-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71071-87042-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71071-87042-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71071-87043-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71071-87043-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71071-87043-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71071-87043-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71071-87045-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71071-87045-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71071-87048iYR21..G198305-198408

FB

main71071-87048-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71071-87052iYR20..MRF..5F..G198310-198311

WHITE WAGON

main71071-87053-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71071-87053-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71071-87054-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71071-87054-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71071-87054-12iCR21,YR20..HRF..E198501-198502

SURF SPECIAL,MAROON,MAROON

main71071-87055-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71071-87055-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71071-87056-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71071-87056-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71071-87058-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71071-87058-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71071-87060-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71071-87060-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71071-87062-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM8#

main71071-87062-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71071-87065-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,WINE,WINE,TRIM4#

main71071-87065-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,BLUE,BLUE,TRIM1#

main71071-87065-06iCR21,30,YR20,21,30..HRF..E198612-198709

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71071-87065-14iCR21,YR20,21..HRF..E198604-198608

WHITE EXTRA,BLUE,BLUE,TRIM8#

main71071-87066-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71071-87066-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71071-87074-04iCR21,30,YR21,30..Q198706-198808

FB,BLUE,BLUE,TRIM8#

main71071-87074-06iCR21,30,YR21,30..Q198706-198808

FB,BROWN,BROWN,TRIM4#

main71071-87075-04iCR21,30,YR20,21,30..HRF..E198709-198808

WHITE EXTRA,BLUE,BLUE,TRIM8#

main71071-87075-06iCR21,30,YR21,30..E198709-198808

SURF SPECIAL,BROWN,BROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-87037iYR20..D198211-198408

PF

main71072-87037-02iYR20..D198408-198508

PF,WINE,WINE,TRIM4#

main71072-87037-06iYR20,28..5H198508-198608

PF,BROWN,BROWN,TRIM4#

main71072-87038-02iYR20..G198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71072-87038-12iYR20..G198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71072-87039-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71072-87039-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71072-87039-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71072-87039-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71072-87039-24iYR20..HRF..E198404-198405

WHITE EXTRA,SURF SPECIAL,BLUE,BLUE,TRIM1#

main71072-87041-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71072-87041-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71072-87041-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71072-87041-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71072-87042-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71072-87042-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71072-87042-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71072-87042-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71072-87044iKR26198211-198408

VL

main71072-87044-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71072-87044-06iKR26198508-198608

VL,BROWN,BROWN,TRIM4#

main71072-87045iYR26..D198211-198408

PF

main71072-87045-02iYR26..D198408-198508

PF,WINE,WINE,TRIM4#

main71072-87045-06iYR26..D198508-198608

PF,BROWN,BROWN,TRIM4#

main71072-87046iCR26198211-198408

PF

main71072-87046-02iCR21,26..D198408-198508

PF,WINE,WINE,TRIM4#

main71072-87046-06iCR21,26,28,36,37,YR28,36..(4FC,5F)..(B,D)198508-198808

PF,BROWN,BROWN,TRIM4#

main71072-87047-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71072-87047-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71072-87050iYR21..G198305-198408

FB

main71072-87050-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71072-87054iYR20..MRF..5F..G198310-198311

WHITE WAGON

main71072-87055-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71072-87055-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71072-87056-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71072-87056-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71072-87056-12iCR21,YR20..HRF..E198501-198502

SURF SPECIAL,MAROON,MAROON

main71072-87057-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71072-87057-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71072-87058-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71072-87058-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71072-87060-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71072-87060-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71072-87062-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71072-87062-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71072-87064-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM8#

main71072-87064-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71072-87067-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,WINE,WINE,TRIM4#

main71072-87067-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,BLUE,BLUE,TRIM1#

main71072-87067-06iCR21,30,YR20,21,30..HRF..E198612-198709

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71072-87067-14iCR21,YR20,21..HRF..E198604-198608

WHITE EXTRA,BLUE,BLUE,TRIM8#

main71072-87068-06iYR20,28..5H198608-198808

PF,BROWN,BROWN,TRIM4#

main71072-87069-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71072-87069-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71072-87070-06iKR26198608-198808

VL,BROWN,BROWN,TRIM4#

main71072-87071-06iYR26..D198608-198808

PF,BROWN,BROWN,TRIM4#

main71072-87079-04iCR21,30,YR21,30..Q198706-198808

FB,BLUE,BLUE,TRIM8#

main71072-87079-06iCR21,30,YR21,30..Q198706-198808

FB,BROWN,BROWN,TRIM4#

main71072-87G01-04iCR21,30,YR20,21,30..HRF..E198709-198808

WHITE EXTRA,BLUE,BLUE,TRIM8#

main71072-87G01-06iCR21,30,YR21,30..E198709-198808

SURF SPECIAL,BROWN,BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-87044iKR26198211-198408

VL

main71073-87044-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71073-87044-06iKR26198508-198808

VL,BROWN,BROWN,TRIM4#

main71073-87045iCR26,YR20,26..D198211-198408

PF

main71073-87045-02iCR21,26,YR20,26..D198408-198508

PF,WINE,WINE,TRIM4#

main71073-87045-06iCR21,26,28,36,37,YR20,26,28,36..B,D198508-198808

PF,BROWN,BROWN,TRIM4#

main71073-87046-02iYR20..G198211-198308

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71073-87046-12iYR20..G198308-198408

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71073-87047-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71073-87047-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71073-87047-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71073-87047-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71073-87047-24iYR20..HRF..E198404-198405

WHITE EXTRA,BLUE,BLUE,TRIM1#

main71073-87047-34iYR20..HRF..E198404-198405

SURF SPECIAL,BLUE,BLUE,TRIM1#

main71073-87050-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71073-87050-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71073-87050-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71073-87050-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71073-87053-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71073-87053-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71073-87054iYR21..G198305-198408

FB

main71073-87055-02iYR20..G198211-198308

*LBS OR CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71073-87055-12iYR20..G198308-198408

*LBS OR CAMPER,FB,WINE,WINE,TRIM4#

main71073-87057-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71073-87057-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71073-87057-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71073-87057-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71073-87059iYR20..MRF..5F..G198310-198311

WHITE WAGON

main71073-87060-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71073-87060-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71073-87061-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71073-87061-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71073-87061-12iCR21,YR20..HRF..E198501-198502

SURF SPECIAL,MAROON,MAROON

main71073-87062-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71073-87062-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71073-87063-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71073-87063-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71073-87066-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71073-87066-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71073-87068-02iYR21..G198408-198508

PF,WINE,WINE,TRIM4#

main71073-87070-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71073-87070-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71073-87072-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM8#

main71073-87072-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71073-87076-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,WINE,WINE,TRIM4#

main71073-87076-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,BLUE,BLUE,TRIM1#

main71073-87G01-04iCR21,30,YR20,21,30..HRF..E198610-198611

LIMITED EDITION,BLUE,BLUE,TRIM8#

main71073-87G02-06iCR21,YR20,21..HRF..E198604-198608

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71073-87G03-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71073-87G03-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71073-87G04-06iCR21,30,YR20,21,30..HRF..E198612-198709

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71073-87G08-04iCR21,30,YR21,30..Q198706-198801

FB,BLUE,BLUE,TRIM8#

main71073-87G08-06iCR21,30,YR21,30..Q198706-198801

FB,BROWN,BROWN,TRIM4#

main71073-87G09-04iCR21,30,YR20,21,30..HRF..E198709-198808

WHITE EXTRA,BLUE,BLUE,TRIM8#

main71073-87G09-06iCR21,30,YR21,30..E198801-198808

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71073-87G10-06iCR21,30,YR21,30..E198709-198801

SURF SPECIAL,BROWN,BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-87021iCR26,YR20..D198211-198408

PF

main71074-87021-02iCR21,26,YR20..D198408-198508

PF,WINE,WINE,TRIM4#

main71074-87021-06iCR21,26,28,36,37,YR20,28,36..B,D198508-198808

PF,BROWN,BROWN,TRIM4#

main71074-87022-02iYR20..G198211-198308

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71074-87022-12iYR20..G198308-198408

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71074-87023-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71074-87023-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM8#

main71074-87023-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71074-87023-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71074-87023-24iYR20..HRF..E198404-198405

WHITE EXTRA,BLUE,BLUE,TRIM1#

main71074-87023-34iYR20..HRF..E198404-198405

SURF SPECIAL,BLUE,BLUE,TRIM1#

main71074-87026-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71074-87026-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71074-87026-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71074-87026-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71074-87028iKR26198211-198408

VL

main71074-87028-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71074-87028-06iKR26198508-198808

VL,BROWN,BROWN,TRIM4#

main71074-87029iYR26..D198211-198408

PF

main71074-87029-02iYR26..D198408-198508

PF,WINE,WINE,TRIM4#

main71074-87029-06iYR26..D198508-198808

PF,BROWN,BROWN,TRIM4#

main71074-87030-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71074-87030-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71074-87031iYR21..G198305-198408

FB

main71074-87032-02iYR20..G198211-198308

*LBS OR CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71074-87032-12iYR20..G198308-198408

*LBS OR CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71074-87034-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71074-87034-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71074-87034-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71074-87034-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71074-87036iYR20..MRF..5F..G198310-198311

WHITE WAGON

main71074-87037-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71074-87037-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71074-87038-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71074-87038-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71074-87038-12iCR21,YR20..HRF..E198501-198502

SURF SPECIAL,MAROON,MAROON

main71074-87039-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71074-87039-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71074-87040-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71074-87040-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71074-87043-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71074-87043-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71074-87045-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71074-87048-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71074-87048-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71074-87050-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM8#

main71074-87050-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71074-87053-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,WINE,WINE,TRIM4#

main71074-87053-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,BLUE,BLUE,TRIM1#

main71074-87057-04iCR21,30,YR20,21,30..HRF..E198610-198611

LIMITED EDITION,BLUE,BLUE,TRIM8#

main71074-87058-06iCR21,30,YR20,21,30..HRF..E198610-198611

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71074-87059-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71074-87059-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71074-87060-06iCR21,30,YR20,21,30..HRF..E198612-198709

SURF SPECIAL,BROWN,BROWN,TRIM4#

main71074-87063-04iCR21,30,YR21,30..Q198706-198801

FB,BLUE,BLUE,TRIM8#

main71074-87063-06iCR21,30,YR21,30..Q198801-198808

FB,BROWN,BROWN,TRIM4#

main71074-87064-04iCR21,30,YR20,21,30..HRF..E198709-198808

WHITE EXTRA,BLUE,BLUE,TRIM8#

main71074-87065-06iCR21,30,YR21,30..E198709-198808

SURF SPECIAL,BROWN,BROWN,TRIM4#

71108HINGE SUB-ASSY, FRONT SEATBACK, UPPER RH

main71283-87002iKR26,YR26..4H198211-198808

71109HINGE SUB-ASSY, FRONT SEATBACK, UPPER LH

main71282-87003iKR26,YR26..4H198211-198808

71297PIN, PASSENGER SEATBACK SUPPORT

main71297-87401×2iKR26,YR26..4H198211-198808

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12018×2iCR2#,3#,YR2#,3#..4FC,5F; KR26,YR20,26,28..4H,5H198211-198808

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-87043-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71410-87043-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71410-87046iKR26198211-198408

VL

main71410-87046-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71410-87046-06iKR26198508-198808

VL,BROWN,BROWN,TRIM4#

main71410-87047iCR26,YR20,26..D198211-198408

PF

main71410-87047-02iCR21,26,YR20,26..D198408-198508

PF,WINE,WINE,TRIM4#

main71410-87047-06iCR21,26,28,36,37,YR20,26,28,36..B,D198508-198808

PF,BROWN,BROWN,TRIM4#

main71410-87048-02iYR20..G198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71410-87048-12iYR20..G198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71410-87050-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71410-87050-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71410-87050-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71410-87050-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71410-87053-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71410-87053-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71410-87053-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71410-87053-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71410-87054-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71410-87054-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71410-87054-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71410-87054-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71410-87056-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71410-87056-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71410-87058iYR21..G198305-198408

FB

main71410-87058-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71410-87062-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71410-87062-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71410-87063-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71410-87063-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71410-87064-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71410-87064-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71410-87065-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71410-87065-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71410-87067-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71410-87067-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71410-87071-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71410-87071-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71410-87074-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM8#

main71410-87074-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71410-87G13-04iCR21,30,YR21,30..Q198706-198808

FB,BLUE,BLUE,TRIM8#

main71410-87G13-06iCR21,30,YR21,30..Q198706-198808

FB,BROWN,BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-87033-06iYR20,28..5H198608-198808

PF,BROWN,BROWN,TRIM4#

main71420-87034-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71420-87034-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71420-87036iYR20..D198211-198408

PF

main71420-87036-02iYR20..D198408-198508

PF,WINE,WINE,TRIM4#

main71420-87036-06iYR20,28..5H198508-198608

PF,BROWN,BROWN,TRIM4#

main71420-87037-02iYR20..G198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71420-87037-12iYR20..G198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71420-87038-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71420-87038-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71420-87038-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71420-87038-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71420-87041-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71420-87041-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71420-87041-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71420-87041-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71420-87042-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71420-87042-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71420-87042-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71420-87042-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71420-87044iKR26198211-198408

VL

main71420-87044-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71420-87044-06iKR26198508-198608

VL,BROWN,BROWN,TRIM4#

main71420-87045iYR26..D198211-198408

PF

main71420-87045-02iYR26..D198408-198508

PF,WINE,WINE,TRIM4#

main71420-87045-06iYR26..D198508-198608

PF,BROWN,BROWN,TRIM4#

main71420-87046iCR26198211-198408

PF

main71420-87046-02iCR21,26..D198408-198508

PF,WINE,WINE,TRIM4#

main71420-87046-06iCR21,26,28,36,37,YR28,36..(4FC,5F)..(B,D)198508-198808

PF,BROWN,BROWN,TRIM4#

main71420-87047-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71420-87047-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71420-87049iYR21..G198305-198408

FB

main71420-87049-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71420-87052-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71420-87052-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71420-87053-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71420-87053-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71420-87054-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71420-87054-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71420-87055-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71420-87055-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71420-87057-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71420-87057-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71420-87061-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71420-87061-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71420-87063-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM8#

main71420-87063-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71420-87067-06iKR26198608-198808

VL,BROWN,BROWN,TRIM4#

main71420-87068-06iYR26..D198608-198808

PF,BROWN,BROWN,TRIM4#

main71420-87G05-04iCR21,30,YR21,30..Q198706-198808

FB,BLUE,BLUE,TRIM8#

main71420-87G05-06iCR21,30,YR21,30..Q198706-198808

FB,BROWN,BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-87046-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71430-87046-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71430-87051iKR26198211-198408

VL

main71430-87051-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71430-87051-06iKR26198508-198808

VL,BROWN,BROWN,TRIM4#

main71430-87052iCR26,YR20,26..D198211-198408

PF

main71430-87052-02iCR21,26,YR20,26..D198408-198508

PF,WINE,WINE,TRIM4#

main71430-87052-06iCR21,26,28,36,37,YR20,26,28,36..B,D198508-198808

PF,BROWN,BROWN,TRIM4#

main71430-87053-02iYR20..G198211-198308

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71430-87053-12iYR20..G198308-198408

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71430-87054-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71430-87054-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71430-87054-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71430-87054-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71430-87055-02iYR20..HRF..G198211-198308

CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71430-87055-12iYR20..HRF..G198308-198408

CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71430-87058-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71430-87058-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71430-87058-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71430-87058-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71430-87061-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71430-87061-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71430-87062iYR21..G198305-198408

FB

main71430-87063-02iYR20..G198211-198308

*LBS,FB,WINE,RED/MAROON,TRIM4#

main71430-87063-12iYR20..G198308-198408

*LBS,FB,WINE,RED/MAROON,TRIM4#

main71430-87065-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71430-87065-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71430-87065-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71430-87065-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71430-87067-02iCR21,YR20..G198408-198508

FB,WINE,WINE,TRIM4#

main71430-87067-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71430-87068-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71430-87068-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71430-87069-02iCR21,YR20..HRF..E198408-198508

CAMPER,FB,WINE,WINE,TRIM4#

main71430-87069-04iCR21,YR20..HRF..E198408-198508

CAMPER,FB,BLUE,BLUE,TRIM1#

main71430-87071-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71430-87071-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71430-87072-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71430-87072-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71430-87075-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71430-87075-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71430-87077-02iYR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71430-87079-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71430-87079-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71430-87G03-04iCR21,30,YR20,21,30..Q198508-198706

FB,BLUE,BLUE,TRIM1#

main71430-87G03-06iCR21,30,YR20,21,30..Q198508-198706

FB,BROWN,BROWN,TRIM4#

main71430-87G29-04iCR21,30,YR21,30..Q198801-198808

FB,BLUE,BLUE,TRIM8#

main71430-87G29-06iCR21,30,YR21,30..Q198706-198801

FB,BROWN,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-87037-04iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BLUE,BLUE,TRIM8#

main71440-87037-06iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,FB,BROWN,BROWN,TRIM4#

main71440-87044iCR26,YR20..D198211-198408

PF

main71440-87044-02iCR21,26,YR20..D198408-198508

PF,WINE,WINE,TRIM4#

main71440-87044-06iCR21,26,28,36,37,YR36..B,D; YR28..05S198701-198808

PF,BROWN,BROWN,TRIM4#

main71440-87045-02iYR20..G198211-198308

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71440-87045-12iYR20..G198308-198408

*HBS,FB,WINE,RED/MAROON,TRIM4#

main71440-87046-02iCR21,YR20..E198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71440-87046-04iCR21,YR20..E198211-198308

FB,BLUE,BLUE,TRIM1#

main71440-87046-12iCR21,YR20..E198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71440-87046-14iCR21,YR20..E198308-198408

FB,BLUE,BLUE,TRIM1#

main71440-87049-02iYR20,21..X198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71440-87049-04iYR20,21..X198211-198308

FB,BLUE,BLUE,TRIM1#

main71440-87049-12iYR20,21..X198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71440-87049-14iYR20,21..X198308-198408

FB,BLUE,BLUE,TRIM1#

main71440-87051iKR26198211-198408

VL

main71440-87051-02iKR26198408-198508

VL,WINE,WINE,TRIM4#

main71440-87051-06iKR26198508-198808

VL,BROWN,BROWN,TRIM4#

main71440-87052iYR26..D198211-198408

PF

main71440-87052-02iYR26..D198408-198508

PF,WINE,WINE,TRIM4#

main71440-87052-06iYR26..D198508-198808

PF,BROWN,BROWN,TRIM4#

main71440-87054-02iYR26..N198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71440-87054-12iYR26..N198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71440-87055iYR21..G198305-198408

FB

main71440-87056-02iYR20..HRF..G198211-198308

CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71440-87056-12iYR20..HRF..G198308-198408

CAMPER,FB,WINE,RED/MAROON,TRIM4#

main71440-87057-02iYR20..G198211-198308

*LBS,FB,WINE,RED/MAROON,TRIM4#

main71440-87057-12iYR20..G198308-198408

*LBS,FB,WINE,RED/MAROON,TRIM4#

main71440-87059-02iYR20,21..Q198211-198308

FB,WINE,RED/MAROON,TRIM4#

main71440-87059-04iYR20,21..Q198211-198308

FB,BLUE,BLUE,TRIM1#

main71440-87059-12iYR20,21..Q198308-198408

FB,WINE,RED/MAROON,TRIM4#

main71440-87059-14iYR20,21..Q198308-198408

FB,BLUE,BLUE,TRIM1#

main71440-87061-06iYR20..MRF..G;CR21,30,YR30..G;YR20..HRF..5F..G198508-198808

FB,BROWN,BROWN,TRIM4#

main71440-87062-02iCR21,YR20..E198408-198508

FB,WINE,WINE,TRIM4#

main71440-87062-04iCR21,YR20..E198408-198508

FB,BLUE,BLUE,TRIM1#

main71440-87063-02iCR21,YR20..HRF..E198408-198508

CAMPER,FB,WINE,WINE,TRIM4#

main71440-87063-04iCR21,YR20..HRF..E198408-198508

CAMPER,FB,BLUE,BLUE,TRIM1#

main71440-87065-02iYR20,21..Q198408-198508

FB,WINE,WINE,TRIM4#

main71440-87065-04iYR20,21..Q198408-198508

FB,BLUE,BLUE,TRIM1#

main71440-87066-02iYR20,21..X198408-198508

FB,WINE,WINE,TRIM4#

main71440-87066-04iYR20,21..X198408-198508

FB,BLUE,BLUE,TRIM1#

main71440-87069-02iCR26,27,YR26..N198408-198508

FB,WINE,WINE,TRIM4#

main71440-87069-06iCR26,27,36,YR26..N198508-198808

FB,BROWN,BROWN,TRIM4#

main71440-87072-02iCR21,YR20..G; YR21..G198408-198508

FB,WINE,WINE,TRIM4#

main71440-87075-04iCR21,30,YR20,21,30..E198508-198808

FB,BLUE,BLUE,TRIM8#

main71440-87075-06iCR21,30,YR20,21,30..E198508-198808

FB,BROWN,BROWN,TRIM4#

main71440-87078-04iCR21,30,YR20,21,30..Q198508-198801

FB,BLUE,BLUE,TRIM8#

main71440-87078-06iCR21,30,YR20,21,30..Q198508-198801

FB,BROWN,BROWN,TRIM4#

main71440-87G07-06iYR28..06S198701-198808

PF,BROWN,BROWN,TRIM4#

main71440-87G08-06iYR20..D198701-198808

PF,BROWN,BROWN,TRIM4#

main71440-87G25-04iCR21,30,YR21,30..Q198801-198808

FB,BLUE,BLUE,TRIM8#

main71440-87G25-06iCR21,30,YR21,30..Q198801-198808

FB,BROWN,TRIM4#

71537APROTECTOR, FRONT SEAT CUSHION

main71537-87001-02iCR2#,KR26,YR2#198211-198508

WINE,RED/MAROON,TRIM4#

main71537-87001-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE,BLUE,TRIM1#

main71537-87001-06iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

BROWN,BROWN,TRIM4#

main71537-87001-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-87001iKR26,YR26..4H198211-198808

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main71812-87401iCR2#,3#,KR26,YR2#,3#198211-198808

71831DCOVER, FRONT SEAT HINGE, RH

main71831-87001-02iCR2#,KR26,YR2#198211-198508

WINE,RED/MAROON,TRIM4#

main71831-87001-04iCR21,YR20,21..E,Q,X198211-198508

BLUE,BLUE,TRIM1#

main71831-87001-06iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

BROWN,BROWN,TRIM4#

main71831-87001-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-87004iCR2#,3#,KR26,YR2#,3#198211-198808

72130TRACK ASSY, RH SEAT, INNER

main72130-87001iCR2#,KR26,YR2#198211-198408

main72130-87003iCR2#,3#,KR26,YR2#,3#198408-198808

main72130-87004iCR26,27,36..V5D198608-198808

COLD SPEC

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72010-28020-04iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main72010-28020-06iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

BROWN,BROWN,TRIM4#

main72010-87001-02iCR2#,KR26,YR2#198211-198508

WINE,RED/MAROON,TRIM4#

main72010-87001-04iCR21,YR20,21..E,Q,X198211-198508

BLUE,BLUE,TRIM1#

9010910057

main90109-10057

9011908079

main90119-08079

9011910116

main90119-10116

9011910310

main90119-10310

9015480004

main90154-80004

9015950120

main90159-50120

9017908039

main90179-08039

9020212002

main90202-12002

9054006016

main90540-06016

9165160816

main91651-60816

9351016016

main93510-16016

9356015010

main93560-15010

9356016016

main93560-16016

9417110800

main94171-10800

9451100800

main94511-00800

9454301200

main94543-01200

37 parts on this diagram · 28 diagrams in section
