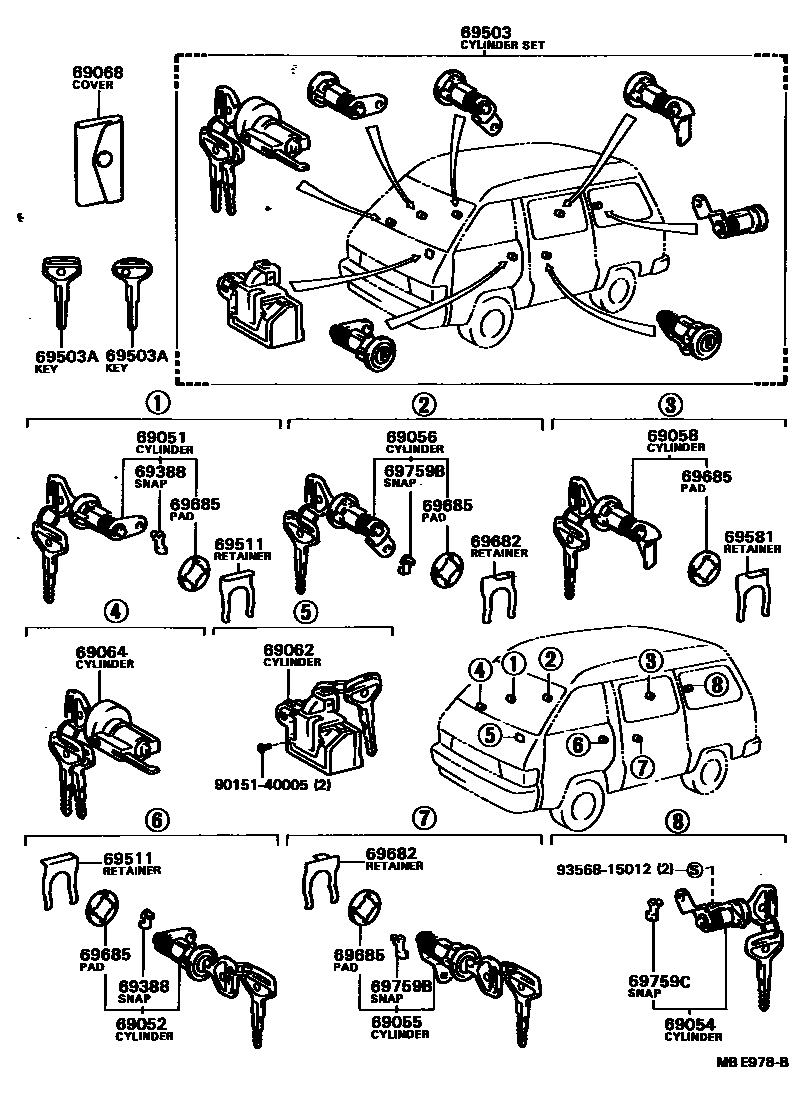

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-87003iCR2#,KR26,YR2#198211-198408

sub69051-28020

main69051-87005iCR2#,3#,KR26,YR2#,3#198408-198708

sub69051-28021

main69051-87007iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198708-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-87003iCR2#,KR26,YR2#198211-198408

sub69052-28020

main69052-87005iCR2#,3#,KR26,YR2#,3#198408-198708

sub69052-28021

main69052-87007iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198708-198808

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-87005iCR2#,KR26,YR2#198211-198408

sub69055-28020

main69055-87007iCR2#,3#,KR26,YR2#,3#198408-198708

sub69055-28021

main69055-87009iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198708-198808

sub69055-28012

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-87001iCR2#,KR26,YR2#198211-198408

sub69054-87003

main69054-87003iCR2#,3#,KR26,YR2#,3#198408-198708

main69054-87005iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198708-198808

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-87003iCR26,KR26,YR26..V5D198211-198408

sub69053-28020

main69053-87005iCR26,27,36,KR26,YR26..V5D198408-198708

sub69053-28021

main69053-87007iCR26,27,36,KR26,YR26..V5D198708-198808

sub69053-28012

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-87005iCR2#,KR26,YR2#198211-198608

sub69058-28020

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-87001-02iYR20,21..07S198408-198508

WINE,RED/MAROON,TRIM4#

main69056-87001-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main69056-87001-04iYR20,21..07S198408-198508

BLUE,BLUE,TRIM1#

main69056-87001-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

main69056-87001-06iCR21,30,YR20,21,30..Q198508-198808

BROWN,BROWN,TRIM4#

main69056-87001-14iCR21,30,YR20,21,30..Q198508-198808

BLUE,BLUE,TRIM8#

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-87001iCR2#,3#,KR26,YR2#,3#198211-198708

sub69057-28020

main69057-87003iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198708-198808

69068COVER SUB-ASSY, KEY

main69555-20010iCR21,30,37,YR20,21,30198211-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iCR2#,3#,KR26,YR2#,3#198408-198708

LH

main69759-20090iCR2#,3#,KR26,YR2#,3#198408-198708

RH

main69759-24080iCR2#,KR26,YR2#198211-198408

RH

main69759-24090iCR2#,KR26,YR2#198211-198408

LH

main69759-30040iCR2#,3#,KR26,YR2#,3#198708-198808

LH

main69759-30050iCR2#,3#,KR26,YR2#,3#198708-198808

RH

69503CYLINDER SET, LOCK

main69005-87021-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main69005-87021-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

main69005-87022iCR26,KR26,YR26..V4D;CR21,YR20,21..08S,09S198211-198408

main69005-87023iCR26,KR26,YR26..V5D198211-198408

main69005-87024-04iCR21,30,YR21,30..Q198708-198808

BLUE,BLUE,TRIM8#

sub69005-87041

main69005-87024-06iCR21,30,YR21,30..Q198708-198808

BROWN,BROWN,TRIM4#

sub69005-87041

main69005-87028-02iYR20,21..07S198408-198508

WINE,WINE,TRIM4#

sub69005-87028

main69005-87028-04iYR20,21..07S198408-198508

BLUE,BLUE,TRIM1#

sub69005-87028

main69005-87028-06iCR21,30,YR20,21,30..Q198508-198708

BROWN,BROWN,TRIM4#

sub69005-87028

main69005-87028-14iCR21,30,YR20,21,30..Q198508-198708

BLUE,BLUE,TRIM8#

sub69005-87028

main69005-87029iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,36,KR26,YR26..V4D;CR21,28,30,YR21,28,3#..05S,06S,08S198408-198708

main69005-87030iCR26,36,KR26,YR26..V4D;CR21,27,28,30,YR20,21,28,30..B,D,G,N198408-198608

main69005-87031iCR26,36,KR26,YR26..V5D198408-198608

main69005-87037iCR26,27,36,KR26,YR26..V5D198608-198708

main69005-87039iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR21,28,3#..05S,06S,08S198708-198808

main69005-87040iCR26,27,36,KR26,YR26..V5D198708-198808

69503AKEY, BLANK

main90999-00067iCR2#,3#,KR26,YR2#,3#198211-198808

main90999-00071iCR21,30,YR20,21,30..07S198211-198808

main90999-00124iCR2#,3#,KR26,YR2#,3#198608-198808

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iCR2#,3#,KR26,YR2#,3#198211-198808

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iCR2#,KR26,YR2#198211-198808

69682RETAINER, LOCK CYLINDER

main69512-87001iCR21,28,30,YR20,21,28,3#;CR26,27,36,KR26,YR26..V4D198211-198808

69685PAD, LOCK CYLINDER

main69513-87001iCR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR20,21,28,3#198211-198808

sub69513-32010

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-20090iCR26,27,36,KR26,YR26..V5D198408-198708

RH

main69759-20090iCR2#,3#,KR26,YR2#,3#198408-198708

LH

main69759-24080iCR26,KR26,YR26..V5D198211-198408

RH

main69759-24090iCR2#,KR26,YR2#198211-198408

LH

main69759-30050iCR2#,3#,KR26,YR2#,3#198708-198808

LH

main69759-30050iCR2#,3#,KR26,YR2#,3#198708-198808

RH

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iCR2#,3#,KR26,YR2#,3#198408-198708

main69759-24090iCR2#,KR26,YR2#198211-198408

main69759-30050iCR2#,3#,KR26,YR2#,3#198708-198808

9015140005

main90151-40005

9356815012

main93568-15012

20 parts on this diagram · 1 diagram in section
