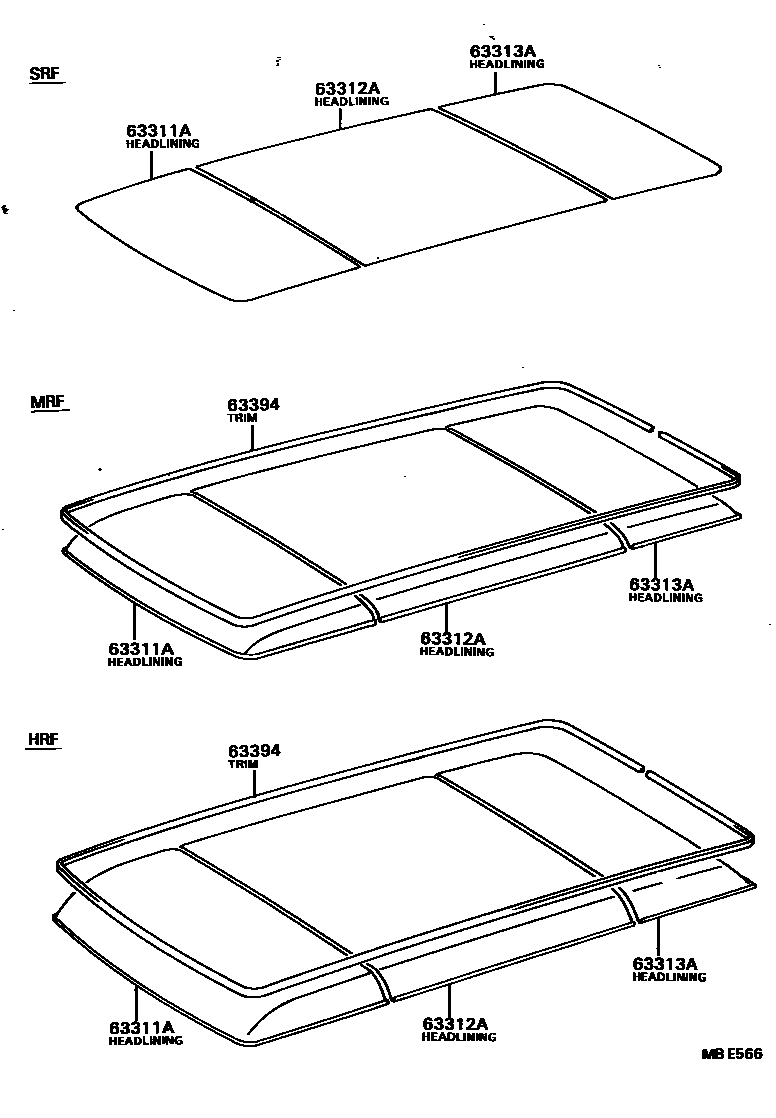

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0004 1 0005 1WHITE WAGON 0007 1 0009 1

63311AHEADLINING, ROOF NO.1

main63311-87006iCR26,KR26,YR26..SRF198211-198408

main63311-87006-15iCR26,27,KR26,YR26..SRF198408-198508

BEIGE,BEIGE,TRIM4#

main63311-87006-25iCR26,27,28,36,KR26,YR26,28..SRF198508-198808

BEIGE,BEIGE,TRIM4#

main63311-87007iYR20..D198211-198408

BEIGE

main63311-87007-15iCR21,YR20..D198408-198508

BEIGE,BEIGE,TRIM4#

main63311-87007-25iCR21,YR20..D198508-198808

BEIGE,BEIGE,TRIM4#

main63311-87008iCR26,YR26..HRF198211-198408

main63311-87008-15iCR26,27,KR26,YR26..HRF198408-198508

BEIGE,BEIGE,TRIM4#

main63311-87008-25iCR26,27,28,36,37,KR26,YR26,28,36..HRF198508-198808

BEIGE,BEIGE,TRIM4#

main63311-87012-03iCR21,YR20,21..MRF..(E,X)198211-198408

W/SUN ROOF,GRAY,GRAY,TRIM1#

main63311-87012-05iCR21,YR20,21..MRF..(E,X)198211-198408

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main63311-87018iYR21..G198305-198408

BEIGE

main63311-87019-03iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF,GRAY,GRAY,TRIM8#

main63311-87019-05iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF,BEIGE,BEIGE,TRIM4#

main63311-87020-03iCR21,YR20,21..HRF..(E,Q,X)198211-198408

W/SUN ROOF,GRAY,GRAY,TRIM1#

main63311-87020-05iCR21,YR20,21..HRF198211-198408

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main63311-87025iYR20..MRF..5F..G198310-198311

WHITE WAGON

main63311-87026-03iCR21,YR20..MRF..E198408-198508

W/SUN ROOF,GRAY,GRAY,TRIM1#

main63311-87026-05iCR21,YR20..MRF..E198408-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main63311-87027-05iYR21..G198408-198508

BEIGE,BEIGE,TRIM4#

main63311-87028-03iCR21,YR20,21..HRF..(E,Q,X)198408-198508

W/SUN ROOF,GRAY,GRAY,TRIM1#

main63311-87028-05iCR21,YR20,21..HRF198408-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main63311-87033-03iCR21,YR20,21..HRF..(E,Q)198508-198808

W/SUN ROOF,GRAY,GRAY,TRIM8#

main63311-87033-05iCR21,YR20,21..HRF..(E,Q)198508-198808

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

63312AHEADLINING, ROOF, NO.2

main63312-87003iCR26,KR26,YR26..SRF198211-198408

main63312-87003-15iCR26,27,KR26,YR26..SRF198408-198508

BEIGE,BEIGE,TRIM4#

main63312-87003-25iCR26,27,28,36,KR26,YR26,28..SRF198508-198808

BEIGE,BEIGE,TRIM4#

main63312-87004iYR20..D198211-198408

BEIGE

main63312-87004-15iCR21,YR20..D198408-198508

BEIGE,BEIGE,TRIM4#

main63312-87004-25iCR21,YR20..D198508-198808

BEIGE,BEIGE,TRIM4#

main63312-87005iCR26,YR26..HRF198211-198408

main63312-87005-15iCR26,27,KR26,YR26..HRF198408-198508

BEIGE,BEIGE,TRIM4#

main63312-87005-25iCR26,27,28,36,37,KR26,YR26,28,36..HRF198508-198808

BEIGE,BEIGE,TRIM4#

main63312-87006-03iCR21,YR20,21..MRF..(E,X)198211-198408

W/*SNR,GRAY,GRAY,TRIM1#

main63312-87006-05iCR21,YR20,21..MRF..(E,X)198211-198408

W/*SNR,BEIGE,BEIGE,TRIM4#

main63312-87007-03iCR21,30,YR21,30..Q198608-198808

W/*SKR,*PC,GRAY,GRAY,TRIM8#

main63312-87007-05iCR21,30,YR21,30..Q198608-198808

W/*SKR,*PC,BEIGE,BEIGE,TRIM4#

main63312-87008-03iYR20,21..Q198211-198408

W/*SNR,*PC,GRAY,GRAY,TRIM1#

main63312-87008-05iYR20,21..Q198211-198408

W/*SNR,*PC,BEIGE,BEIGE,TRIM4#

main63312-87009-03iCR21,YR20,21..HRF..(E,Q,X)198211-198408

W/*SNR,GRAY,GRAY,TRIM1#

main63312-87009-05iCR21,YR20,21..HRF..(E,Q,X)198211-198408

W/*SNR,BEIGE,BEIGE,TRIM4#

main63312-87010-03iCR21,YR21..Q198608-198808

W/*SNR,*PC,GRAY,GRAY,TRIM8#

main63312-87010-05iCR21,YR21..Q198608-198808

W/*SNR,*PC,BEIGE,BEIGE,TRIM4#

main63312-87019iYR20..HRF..G198211-198408

CAMPER

main63312-87020-03iYR20,21..Q198211-198408

W/*SNR,*PC,RR ROOM LAMP,GRAY,GRAY,TRIM1#

main63312-87020-05iYR20,21..Q198211-198408

W/*SNR *PC,RR ROOM LAMP,BEIGE,BEIGE,TRIM4#

main63312-87021-03iYR20,21..Q198211-198408

W/*SNR,RR ROOM LAMP,GRAY,GRAY,TRIM1#

main63312-87021-05iYR20,21..Q198211-198408

W/*SNR,RR ROOM LAMP,BEIGE,BEIGE,TRIM4#

main63312-87022-03iCR21,YR20..MRF..E198408-198508

W/*SNR,GRAY,GRAY,TRIM1#

main63312-87022-05iCR21,YR20..MRF..E198408-198508

W/*SNR,BEIGE,BEIGE,TRIM4#

main63312-87023-03iCR21,YR20,21..HRF..(E,X)198408-198508

W/*SNR,GRAY,GRAY,TRIM1#

main63312-87023-05iCR21,YR20,21..HRF..(E,X)198408-198508

W/*SNR,BEIGE,BEIGE,TRIM4#

main63312-87024-03iYR20,21..Q198408-198508

GRAY,GRAY,TRIM1#

main63312-87024-05iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main63312-87025-03iCR21,YR20..HRF..E198408-198508

CAMPER,GRAY,GRAY,TRIM1#

main63312-87025-05iCR21,YR20..HRF..E198408-198508

CAMPER,BEIGE,BEIGE,TRIM4#

main63312-87026-03iYR20,21..Q198408-198508

W/*PC,GRAY,GRAY,TRIM1#

main63312-87026-05iYR20,21..Q198408-198508

W/*PC,BEIGE,BEIGE,TRIM4#

main63312-87027-03iCR21,30,YR20,21,30..Q198508-198808

W/*SKR,GRAY,GRAY,TRIM8#

main63312-87027-05iCR21,30,YR20,21,30..HRF..E198610-198808

SURF SPECIAL,W/*SKR,BEIGE,BEIGE,TRIM4#

main63312-87028-03iCR21,30,YR20,21,30..HRF..E198508-198808

W/*SKR,GRAY,GRAY,TRIM8#

main63312-87028-05iCR21,30,YR20,21,30..HRF..E198508-198808

W/*SKR,BEIGE,BEIGE,TRIM4#

main63312-87029-03iCR21,30,YR20,21..Q198508-198608

W/*SKR,*PC,GRAY,GRAY,TRIM8#

main63312-87029-05iCR21,30,YR20,21..Q198508-198608

W/*SKR,*PC,BEIGE,BEIGE,TRIM4#

main63312-87033-03iCR21,YR20,21..HRF..E198508-198808

W/*SNR,GRAY,GRAY,TRIM8#

main63312-87033-05iCR21,YR20,21..HRF..E198508-198808

W/*SNR,BEIGE,BEIGE,TRIM4#

main63312-87034-03iCR21,YR20,21..Q198508-198808

W/*SNR,GRAY,GRAY,TRIM8#

main63312-87034-05iCR21,YR20,21..Q198508-198808

W/*SNR,BEIGE,BEIGE,TRIM4#

main63312-87036-03iCR21,YR20,21..Q198508-198608

W/*SNR,*PC,GRAY,GRAY,TRIM8#

main63312-87036-05iCR21,YR20,21..Q198508-198608

W/*SNR,*PC,BEIGE,BEIGE,TRIM4#

63313AHEADLINING, ROOF, NO.3

main63313-87001iCR26,KR26,YR26..SRF198211-198408

main63313-87001-15iCR26,27,KR26,YR26..SRF198408-198508

BEIGE,BEIGE,TRIM4#

main63313-87001-25iCR26,27,28,36,KR26,YR26,28..SRF198508-198808

BEIGE,BEIGE,TRIM4#

main63313-87002iYR20..D198211-198408

BEIGE

main63313-87002-15iCR21,YR20..D198408-198508

BEIGE,BEIGE,TRIM4#

main63313-87002-25iCR21,YR20..D198508-198808

BEIGE,BEIGE,TRIM4#

main63313-87003iCR26,YR26..HRF198211-198408

main63313-87003-15iCR26,27,KR26,YR26..HRF198408-198508

BEIGE,BEIGE,TRIM4#

main63313-87003-25iCR26,27,28,36,37,KR26,YR26,28,36..HRF198508-198808

BEIGE,BEIGE,TRIM4#

63394TRIM, ROOF HEADLINING

main63393-87004iYR20..D198211-198408

BEIGE

main63393-87004-15iCR21,YR20..D198408-198808

BEIGE,BEIGE,TRIM4#

main63393-87005iCR26,YR26..HRF198211-198408

BEIGE

main63393-87005-15iCR26,27,28,36,37,KR26,YR26,28,36..HRF198408-198808

BEIGE,BEIGE,TRIM4#

4 parts on this diagram · 6 diagrams in section
