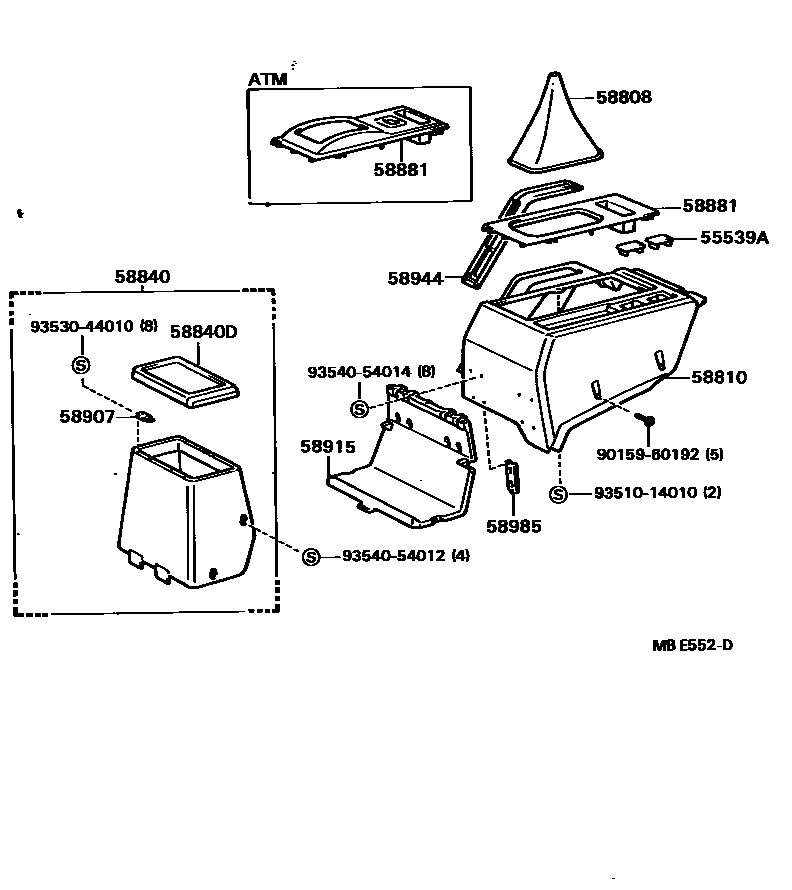

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-87001-02×2iCR2#,YR2#..4FC,5F198408-198508

WINE,WINE,TRIM4#

main55539-87001-03×2iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

main55539-87001-04×2iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE,BLUE,TRIM1#

main55539-87001-05×2iCR2#,YR2#..4FC,5F198211-198408

BEIGE,BEIGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-87001-02iCR21,26,YR2#..5F198408-198508

WINE,WINE,TRIM4#

main58808-87001-03iCR21,YR20,21..5F..(E,Q,X)198211-198408

GRAY,GRAY,TRIM1#

main58808-87001-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE,BLUE,TRIM1#

main58808-87001-05iCR2#,YR2#..5F198211-198408

BEIGE,BEIGE,TRIM4#

main58808-87002-04iCR21,30,YR20,21,30..5F..(E,Q)198508-198808

BLUE,BLUE,TRIM8#

main58808-87002-06iCR21,26,28,3#,YR20,21,26,3#..5F..(B,D,E,G,N,Q)198508-198808

BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58811-87005-02iCR2#,YR2#..4FC,5F198408-198508

WINE,WINE,TRIM4#

main58811-87005-03iCR21,YR20..E198211-198408

GRAY,GRAY,TRIM1#

main58811-87005-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE,BLUE,TRIM1#

main58811-87005-05iCR2#,YR2#..02S,05S,08S198211-198408

BEIGE,BEIGE,TRIM4#

main58811-87007-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main58811-87007-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

main58811-87011-04iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main58811-87011-06iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,3#,YR21,26,28,3#..4FC,5F198508-198808

BROWN,BROWN,TRIM4#

main58811-87013-04iCR21,30,YR20,21..Q198508-198808

W/*PC,BLUE,BLUE,TRIM8#

main58811-87013-06iCR21,30,YR20,21..Q198508-198808

W/*PC,BROWN,BROWN,TRIM4#

58840BOX ASSY, CONSOLE COMPARTMENT

main58820-87003-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main58820-87003-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

58840DDOOR, CONSOLE COMPARTMENT BOX

main58951-87003-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main58951-87003-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

58881COVER, SHIFTING HOLE

main58848-87002-02iCR21,26,YR2#..5F198408-198508

WINE,WINE,TRIM4#

main58848-87002-03iCR21,YR20,21..5F..(E,Q,X)198211-198408

GRAY,GRAY,TRIM1#

main58848-87002-04iCR21,YR20,21..5F..(E,Q,X)198408-198508

BLUE,BLUE,TRIM1#

main58848-87002-05iCR2#,YR2#..5F198211-198408

BEIGE,BEIGE,TRIM4#

main58848-87003-02iCR21,27,YR2#..4FC198408-198508

WINE,WINE,TRIM4#

main58848-87003-03iYR20,21..4FC..(E,Q,X)198211-198408

GRAY,GRAY,TRIM1#

main58848-87003-04iCR21,YR20,21..4FC..(E,Q,X)198408-198508

BLUE,BLUE,TRIM1#

main58848-87003-05iYR2#..4FC198211-198408

BEIGE,BEIGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-87003×2iYR20,21..07S198211-198408

58915PANEL, BOX BOTTOM

main58915-87001-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main58915-87001-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

58944COVER, PARKING BRAKE HOLE

main58941-87005-01iCR21,26,YR2#..4FC,5F198211-198508

BLACK

main58941-87010-01iYR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,3#,YR21,26,28,3#..4FC,5F198508-198808

BLACK

58985RETAINER, CONSOLE BOX

main58985-87001×4iYR20,21..07S198211-198408

9015960192

main90159-60192

9351014010

main93510-14010

9353044010

main93530-44010

9354054012

main93540-54012

9354054014

main93540-54014

15 parts on this diagram · 2 diagrams in section
