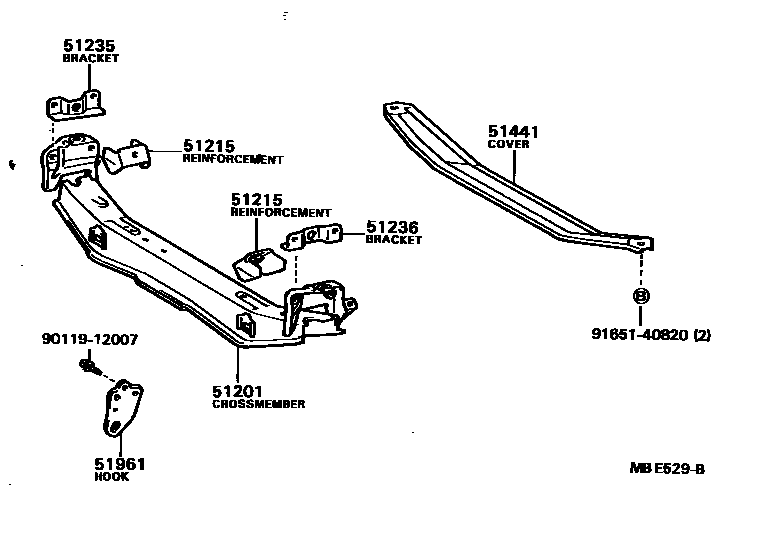

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-95D00iCR3#,YR3#198510-198808

FR

main51203-87001iCR2#,KR26,YR2#198211-198508

main51203-87002iCR2#,YR21,26,28;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

W/PS

main51203-87004iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,KR26,YR26,28..02S,03S,05S,06S,08S198508-198808

main51203-95D00iCR3#,YR3#198510-198708

RR

main51203-95D01iCR3#,YR3#198708-198808

RR

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-87001iCR2#,KR26,YR2#198211-198508

RH

main51215-87004iCR2#,KR26,YR2#198211-198508

LH

main51215-87007iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

RH

main51218-87002iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

LH

51235BRACKET, FRONT SUSPENSION CROSSMEMBER, RH

main51225-87001iCR2#,KR26,YR2#198211-198808

51236BRACKET, FRONT SUSPENSION CROSSMEMBER, LH

main51226-87001iCR2#,KR26,YR2#198211-198808

51441COVER, ENGINE UNDER, NO.1

main51441-87001iCR2#,KR26,YR2#198211-198406

STEEL

main51441-87002iCR2#,KR26,YR2#198406-198808

PLASTIC

main51441-95D00iCR3#,YR3#198510-198808

51961HOOK, NO.1

main51970-87001iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

RH

main51970-95D00iCR3#,YR3#198510-198808

RH

main51980-87001iYR20..HRF..5F..G;YR20..MRF..(08S,09S);KR26,YR2#..(HRF,SRF)..(B,D,E,N,Q,R)198508-198808

LH

main51980-87002iCR2#198508-198808

LH

main51980-95D00iYR30198510-198608

LH

main51980-95D01iCR3#198510-198608

LH

9011912007

main90119-12007

9165140820

main91651-40820

8 parts on this diagram · 2 diagrams in section
