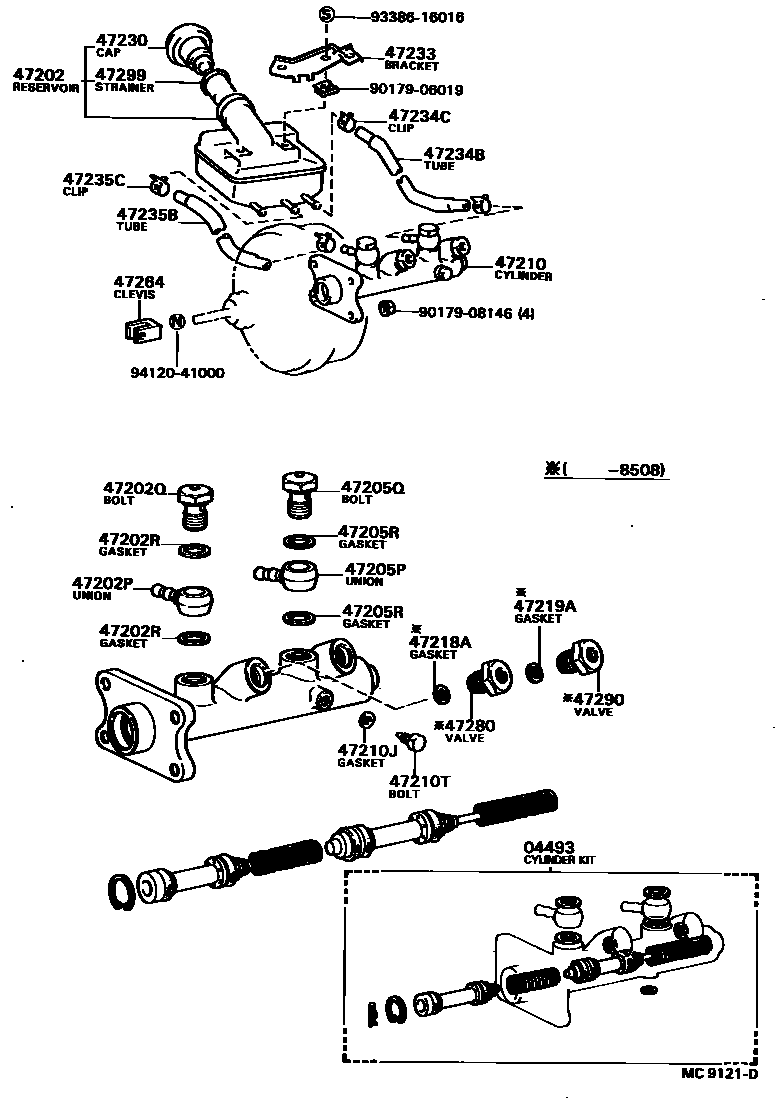

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-27060iCR26,KR26,YR26..D,R198211-198508

FR DRUM BRAKE

main04493-27070iCR2#,KR26,YR2#198211-198508

FR DISC BRAKE

main04493-28060iCR21,3#,YR21,3#;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

main04493-28070iCR26,27,28,KR26,YR26,28198508-198808

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28040iCR26,YR2#..MTM198211-198301

main47220-28041iCR21,26,YR2#..MTM198301-198508

main47220-28050iYR26..4FC;KR26,YR20..4FC,4H198211-198301

main47220-28051iYR26..4FC;CR21,27,KR26,YR20,21..4FC,4H198301-198508

main47220-28100iCR21,26,28,3#,YR2#,3#..MTM..(B,D,E,G,N,Q)198508-198808

main47220-28110iYR20..MRF..4FC;YR20,26..(HRF,SRF)..4FC..(E,N,Q);CR21,27,28,30,KR26,YR21,28,3#..4FC,4H198508-198808

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10003iCR2#,3#,KR26,YR2#,3#198211-198808

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iCR2#,3#,KR26,YR2#,3#198211-198808

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242×2iCR2#,3#,KR26,YR2#,3#198211-198808

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-10003iCR2#,3#,KR26,YR2#,3#198211-198808

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iCR2#,3#,KR26,YR2#,3#198211-198808

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242×2iCR2#,3#,KR26,YR20,21,28,3#198211-198808

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-28040iCR2#,KR26,YR2#198211-198508

FR DISC BRAKE

main47201-28050iCR26,KR26,YR26..D,R198211-198508

FR DRUM BRAKE

main47201-28080iCR21,30,36,YR20,21,3#198508-198808

main47201-28120iCR26,27,28,KR26,YR26,28198508-198808

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCR2#,3#,KR26,YR2#,3#198211-198808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iCR2#,3#,KR26,YR2#,3#198211-198808

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iCR2#,KR26,YR2#198211-198508

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iCR2#,KR26,YR2#198211-198508

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCR2#,3#,KR26,YR2#,3#198211-198808

47233BRACKET, RESERVOIR

main47233-28020iCR2#,KR26,YR2#198211-198508

main47233-28040iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

47234BTUBE, RESERVOIR, NO.1

main47234-28030iCR26,27,28,KR26,YR26,28198508-198808

main47234-28060iCR21,3#,YR21,3#;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90467-16002×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

main90467-16141×2iCR2#,KR26,YR2#198211-198508

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-28030iCR26,27,28,KR26,YR26,28198508-198808

main47235-28060iCR21,3#,YR21,3#;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main90467-16002×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

main90467-16141×2iCR2#,KR26,YR2#198211-198508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCR2#,3#,KR26,YR2#,3#198211-198808

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-26030iCR2#,KR26,YR2#198211-198508

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-26030iCR2#,KR26,YR2#198211-198508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCR2#,3#,KR26,YR2#,3#198211-198808

9017906019

main90179-06019

9017908146

main90179-08146

9338616016

main93386-16016

9412041000

main94120-41000

27 parts on this diagram · 1 diagram in section
