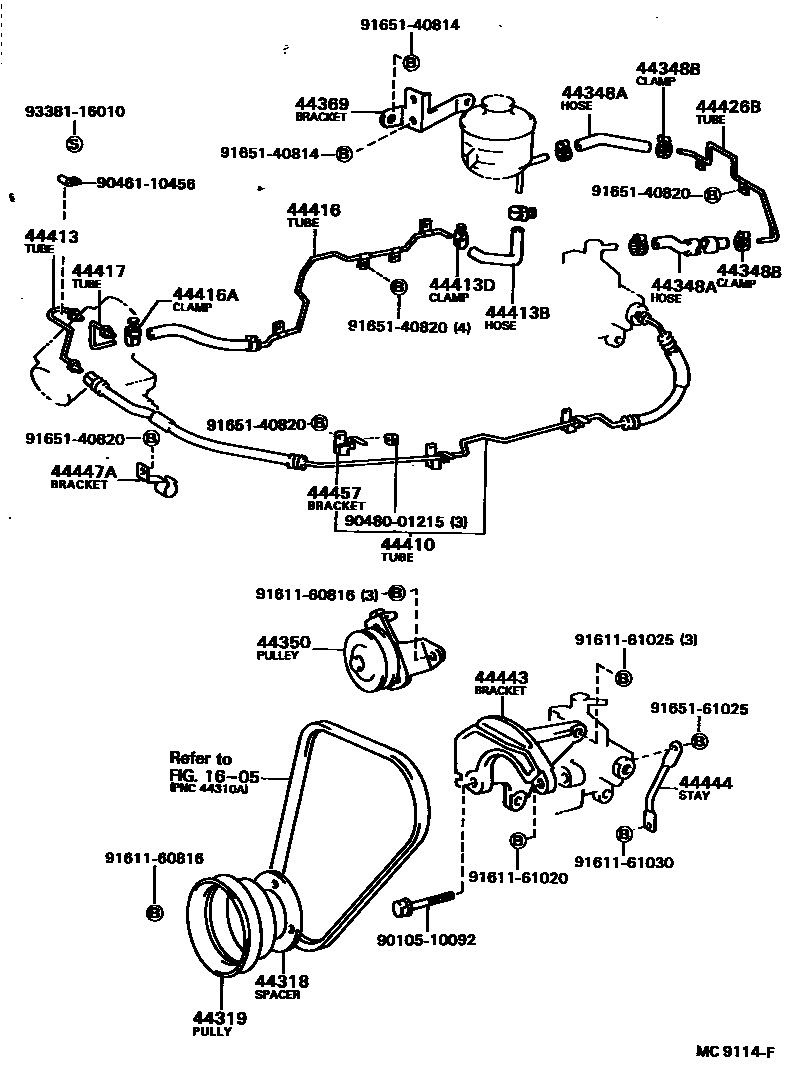

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYR21,26,28,3#;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

44319PULLEY, VANE PUMP DRIVE

main44319-27010iCR2#,3#198508-198808

main44319-28013iYR21,26,28,3#;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28010iYR20,26..4FC,5F198211-198508

RESERVOIR SIDE

main44348-28020iYR20,26..4FC,5F198211-198408

PUMP SIDE

main44348-28021iYR20..HRF..5F..G;YR20..MRF..(08S,09S);YR20,26,28..(HRF,SRF)..(B,D,E,N,Q)198508-198808

PUMP SIDE

main44348-28030iCR21,27;CR26..N198304-198508

main44348-28040iYR21,3#198305-198808

main44348-28050iCR2#198508-198808

RESERVOIR SIDE

main44348-28060iCR2#198508-198808

PUMP SIDE

main44348-28070iCR3#198510-198808

RESERVOIR SIDE

main44348-28080iCR3#198510-198808

PUMP SIDE

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×4iCR26..N;CR21,27,YR2#..4FC,5F198211-198508

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYR2#..4FC,5F198211-198508

44369BRACKET, OIL RESERVOIR, NO.1

main44369-28011iYR2#..4FC,5F198211-198508

main44369-28020iCR2#,3#198508-198808

44410TUBE ASSY, PRESSURE FEED

main44410-28012iYR2#..4FC,5F198211-198508

main44410-28030iCR21,27;CR26..N198304-198508

main44410-28062iCR2#198508-198606

main44410-28063iCR2#198606-198808

main44410-28072iYR20..MRF..08S;YR20..HRF..5F..G;YR2#..(HRF,SRF)..(4FC,5F)..(B,E,N,Q)198508-198608

main44410-28073iYR20..MRF..08S;YR20..HRF..5F..G;YR2#..(HRF,SRF)..(4FC,5F)..(B,E,N,Q)198608-198808

main44410-28082iYR20,26,28..MTM..(B,D)198508-198608

main44410-28083iYR20,26,28..MTM..(B,D)198608-198808

main44410-28090iYR30198510-198608

main44410-28091iYR3#198608-198708

main44410-28092iYR3#198708-198808

main44410-28100iCR3#198510-198808

44413TUBE, PRESSURE FEED, NO.1

main44413-28010iYR2#..4FC,5F198211-198508

main44413-28050iCR21,27;CR26..N198304-198508

44413BHOSE(FOR RESERVOIR TANK INLET)

main44412-28010iYR20,26..4FC,5F198211-198508

main44412-28040iYR21198305-198508

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iCR26..N;CR21,27,YR2#..4FC,5F198211-198508

main90460-26001×4iCR2#,3#,YR26,28;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S); YR21,3#198508-198706

main90467-21005×2iYR20..HRF..E;CR2#,3#,YR26,28;YR20..HRF..5F..G;YR20..MRF..(08S,09S); YR21,3#198706-198808

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28011iYR2#..4FC,5F198211-198508

main44416-28041iCR2#198508-198808

main44416-28051iYR20..MRF..08S;YR20..HRF..5F..G;YR2#..(HRF,SRF)..(4FC,5F)..(B,E,N,Q)198508-198808

main44416-28071iYR20,26,28..MTM..(B,D)198508-198808

main44416-28090iYR3#198510-198808

main44416-28100iCR3#198510-198808

44416ACLAMP(FOR RETURN HOSE)

main90460-01001iCR26..N;CR21,27,YR2#..4FC,5F198211-198508

44417TUBE, RETURN, NO.2

main44417-28010iYR2#..4FC,5F198211-198310

main44417-28011iYR2#..4FC,5F198310-198508

main44417-28030iCR21,27;CR26..N198304-198508

main44417-28040iCR2#198508-198808

main44417-28050iYR20..MRF..08S;YR20..HRF..5F..G;YR2#..(HRF,SRF)..(4FC,5F)..(B,E,N,Q)198508-198808

main44417-28070iYR20,26,28..MTM..(B,D)198508-198808

main44417-28090iYR3#198510-198808

main44417-28100iCR3#198510-198808

44426BTUBE, OIL RESERVOIR TO PUMP

main44426-28011iYR20,26..4FC,5F198211-198508

main44426-28021iCR2#198508-198808

main44426-28030iCR3#198510-198808

44443BRACKET, PUMP

main44443-14030iCR2#,30,36198508-198808

main44443-28011iYR20,26..4FC,5F198211-198508

main44443-28021iYR21,3#198305-198808

44444STAY, PUMP, REAR

main44444-27010iYR2#..4FC,5F198211-198508

main44444-27030iYR21,26,28,3#;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198511-198808

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-28010iYR2#..4FC,5F198211-198508

MENBER SIDE

main44447-28020iYR21,3#198305-198808

ENGINE SIDE

44457BRACKET, TUBE SUPPORT, NO.1

main44457-28020×3iYR2#..4FC,5F198211-198508

main44457-28030iYR3#198510-198808

9010510092

main90105-10092

9046110456

main90461-10456

9048001215

main90480-01215

9161160816

main91611-60816

9161161020

main91611-61020

9161161025

main91611-61025

9161161030

main91611-61030

9165140814

main91651-40814

9165140820

main91651-40820

9165161025

main91651-61025

9338116010

main93381-16010
