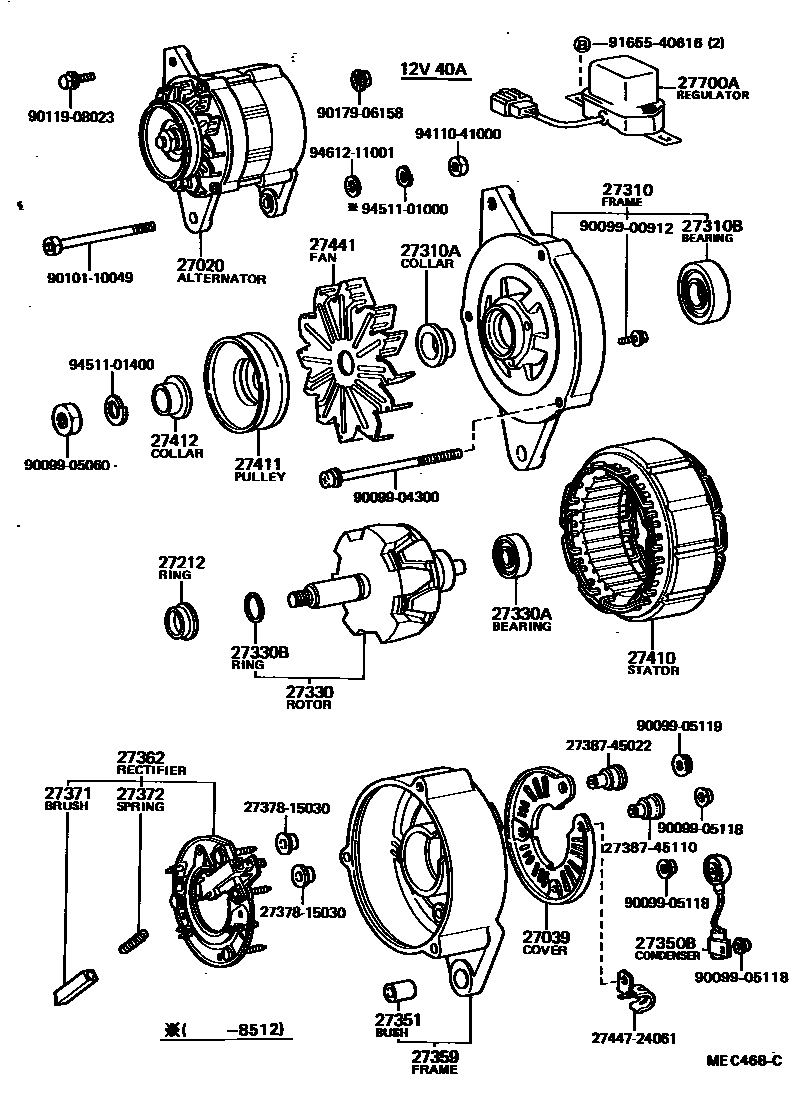

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

27020ALTERNATOR ASSY

main27020-13060i4KJ..KR26198211-198808

main27020-64040i2C..CR21..5F198304-198508

12V 55A

main27020-64090i1C..CR26198211-198508

12V 45A

main27020-64110i2C..CR21..4FC198408-198508

12V 55A

main27020-64120i2C..CR27198409-198508

12V 45A

main27020-64150i2CT..CR21,30198508-198608

main27020-64151i2CT..CR21,28,30,37198608-198808

main27020-72010i2YU..YR20198211-198508

main27020-72030i1YJ..YR26198211-198508

main27060-64010i2C..CR21198508-198608

main27060-64011i2C..CR36..SRF198608-198808

sub27060-64220

main27060-64020i1C,2C..CR26,27,28,36198508-198608

main27060-64021i1C,2C..CR26,27,28,36198608-198808

sub27060-64030

main27060-72010i3YEU..YR21198305-198405

12V 60A

sub27060-72050

main27060-72040i2YU..YR20198211-198508

main27060-72050i3YEU..YR21198405-198408

12V 60A

sub27060-72060

main27060-72060i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(4FC,5F)..(B,E,Q)198408-198608

sub27060-72090

main27060-72061i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(05S,08S)..(B,E)198608-198808

sub27060-75090

main27060-72070i2YU..YR20,28..5H198508-198608

main27060-72071i2YU..YR20,28..5H198608-198808

main27060-72100i3YEU..YR21,30198508-198608

12V 70A

main27060-72101i3YEU..YR21,3#198608-198710

sub27060-72170

main27060-72110i1YJ..YR26198508-198608

main27060-72111i1YJ..YR26198608-198808

main27060-72170i3YEU..YR21,3#198710-198808

27039COVER, ALTERNATOR REAR END

main27039-18011i4KJ..KR26198211-198808

12V 40A

main27039-64150i2CT..CR21,28,30,37198508-198808

12V 70A,NO.2

main27039-72010i2YU..YR20..MRF..08S;2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU,3YEU..YR21,28,3#..4FC,5F198508-198808

12V 70A,NO.1

sub27039-15170

main27039-72010i2C#..CR21,28,30,37198508-198808

12V 60A,70A

sub27039-15170

main27039-72010i3YEU..YR21198305-198508

12V 60A

sub27039-15170

main27039-72010i2C..CR36..SRF198703-198808

12V 70A

sub27039-15170

main27039-72110i2YU..YR20,28..5H198508-198808

12V 55A

main27039-72110i2YU..YR20,28..5H198508-198808

12V 60A

main27039-72150i1YJ..YR26198508-198808

12V 45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4KJ,1YJ..KR26,YR26198211-198808

12V 40A

main27333-57060i1C,2C..CR2#198211-198508

12V 45A,55A

main27412-45070i2YU..YR20198211-198508

12V 55A,65A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i4KJ..KR26198211-198808

12V 40A

main27310-15030i1YJ..YR26198211-198311

12V 40A

main27310-43051i3YEU..YR21,30198508-198808

12V 60A

sub27310-72140

main27310-43100i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(4FC,5F)..(B,E,Q)198508-198808

12V 60A

sub27310-72101

main27310-45110i2YU..YR20198211-198311

12V 55A,65A

main27310-64030i2C..CR21198304-198508

12V 55A

main27310-64050i1C,2C..CR26,27198211-198508

12V 45A

main27310-64130i2C..CR36..SRF198508-198808

12V 70A

main27310-64140i1C,2C..CR26,27,28,36198508-198808

12V 55A

main27310-72010i3YEU..YR21198305-198309

12V 60A

sub27310-72050

main27310-72030i1YJ..YR26198311-198508

12V 40A

main27310-72040i2YU..YR20198311-198401

12V 55A,65A

sub27310-72041

sub27412-16030

main27310-72041i2YU..YR20198401-198508

12V 55A,65A

main27310-72050i3YEU..YR21198309-198406

12V 60A

main27310-72090i3YEU..YR21198406-198408

12V 60A

sub27310-72050

main27310-72100i3YEU..YR21198408-198508

12V 60A

sub27310-43100

main27310-72110i2YU..YR20,28..5H198508-198808

12V 60A

main27310-72150i1YJ..YR26198508-198808

12V 45A

sub27310-72151

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i1YJ,2YU..YR20,26198401-198508

12V 55A,65A

main27412-31040i4KJ..KR26198211-198808

12V 40A

main27412-31040i1YJ,2YU..YR20,26198211-198311

12V 55A,65A

main27412-57060i1C,2C..CR2#198211-198508

12V 45A,55A

main27412-63030i1YJ,2YU..YR20,26198311-198401

12V 55A,65A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i2YU..YR20198211-198311

12V 55A,65A

main90099-10125i4KJ..KR26198211-198808

12V 40A

main90099-10126i1YJ..YR26198211-198508

12V 40A

sub90099-10125

main90099-10137i1C,2C..CR2#198211-198508

12V 45A,55A

main90099-10141i3YEU..YR21198305-198309

12V 60A

main90099-10142i2YU..YR20198311-198508

12V 55A,65A

sub90099-10223

main90099-10152i3YEU..YR21198309-198406

12V 60A

main90099-10156i3YEU..YR21198406-198408

12V 60A

sub90099-10152

main90099-10159i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(4FC,5F)..(B,E,Q)198508-198808

12V 70A

main90099-10159i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(4FC,5F)..(B,E,Q)198508-198808

12V 60A

main90099-10161i3YEU..YR21198408-198508

12V 60A

sub90099-10159

main90099-10165i1C,2C#..CR2#,3#198508-198808

12V 55A,70A

main90099-10170i1YJ..YR26198508-198808

12V 45A

sub90099-10198

27330ROTOR ASSY, ALTERNATOR

main27330-10020i2YU..YR20,28..5H198508-198708

12V 60A

main27330-10021i2YU..YR20,28..5H198708-198808

12V 60A

main27330-26050i4KJ..KR26198211-198808

12V 40A

main27330-43040i2YU..YR20198211-198508

12V 65A

main27330-54200i1C,2C..CR26,27198211-198508

12V 45A

main27330-63010i2YU..YR20198211-198508

12V 55A

main27330-63021i3YEU..YR21198305-198408

12V 60A

sub27330-72100

main27330-64010i2C..CR21198304-198508

12V 55A

main27330-64130i2C..CR36..SRF198508-198808

12V 70A

main27330-64140i1C,2C..CR26,27,28,36198508-198808

12V 55A

main27330-72100i3YEU..YR21198408-198508

12V 60A

sub27330-72101

main27330-72101i2YU..YR20..MRF..08S;2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU,3YEU..YR21,28,3#..4FC,5F198508-198808

12V 60A,70A

main27330-72150i1YJ..YR26198508-198808

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i4KJ,1YJ..KR26,YR26198211-198508

12V 40A

sub90099-10116

main90099-10116i4KJ..KR26198508-198808

12V 40A

main90099-10116i2YU..YR20198211-198508

12V 55A,65A

main90099-10140i3YEU..YR21198305-198508

12V 60A

main90099-10140i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1C,2C#,2YU,3YEU..CR2#,3#,YR21,28,3#198508-198808

12V 55A,60A,70A

main90099-10154i1YJ..YR26198508-198808

12V 45A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i4KJ,1YJ..KR26,YR26198211-198808

12V 40A

main90099-07103i1C,2C..CR2#198211-198508

12 45A,55A

27350FRAME ASSY, RECTIFIER END

main27350-64030i2C..CR21198304-198508

12V 55A

main27350-64050i1C,2C..CR26,27198211-198508

12V 45A

27350BCONDENSER, ALTERNATOR

main90099-52065i4KJ,1YJ,2YU..KR26,YR20,26198211-198508

12V 40A,55A,65A

sub90099-52034

main90099-52065i4KJ..KR26198508-198808

12V 40A

sub90099-52034

main90099-52066i1C,2C..CR2#198211-198508

12V 45A,55A

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4KJ..KR26198508-198808

12V 40A

main27351-38051i4KJ,1YJ,2YU..KR26,YR20,26198211-198508

12V 40A,55A,65A

main27351-64010i1C,2C..CR2#198211-198508

12V 45A.55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i4KJ..KR26198211-198808

12V 40A

main27359-16010i3YEU..YR21198305-198406

12V 60A

sub27359-16011

sub27370-16011

main27359-16011i2YU..YR20..MRF..08S;2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU,3YEU..YR21,28,30..4FC,5F198406-198808

12V 60A

sub27359-16012

sub27384-16380

main27359-16081i2YU..YR20,28..5H198508-198808

12V 60A

main27359-64130i2C#..CR21,28,30,37198508-198808

12V 70A

main27359-64140i1C,2C..CR26,27,28,36198508-198808

12V 55A

main27359-72010i2YU..YR20198211-198508

12V 55A

main27359-72030i1YJ..YR26198211-198508

12V 40A

main27359-72040i2YU..YR20198211-198508

12V 65A

main27359-72150i1YJ..YR26198508-198808

12V 45A

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i4KJ..KR26198211-198808

12V 40A

main27362-63011i2YU..YR20198211-198508

12V 55A

main27362-72080i2YU..YR20198211-198508

12V 65A

27371BRUSH, ALTERNATOR

main27371-31011i4KJ..KR26198508-198808

12V 40A

main27371-31011i4KJ,1YJ,2YU..KR26,YR20,26198211-198508

12V 40A,55A,65A

main27371-56070i1C,2C..CR2#198211-198508

12V 45A,55A

sub27371-54412

main27371-63020i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

12V 55A,70A

sub27371-70300

main27371-63020i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

12V 60A,70A

sub27371-70300

main27371-63020i2C..CR36..SRF198703-198808

12V 70A

sub27371-70300

main27371-63020i3YEU..YR21198305-198508

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i4KJ..KR26198508-198808

12V 40A

main27372-31011i4KJ,1YJ,2YU..KR26,YR20,26198211-198508

12V 40A,55A,65A

main27372-56070i1C,2C..CR2#198211-198508

12V 45A,55A

main27372-72100i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1C,2C#,1YJ,2YU,3YEU..CR2#,3#,YR21,26,28,3#198508-198808

12V 45A,55A,60A,70A

sub27372-63020

main27372-72100i3YEU..YR21198305-198508

12V 60A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-38120i4KJ..KR26198211-198808

12V 40A

main27410-43040i2YU..YR20198211-198508

12V 55A,65A

main27410-43040i2C..CR21198307-198508

12V 55A

main27410-54200i1C,2C..CR26,27198211-198508

12V 45A

main27410-64010i2C..CR21198304-198307

12V 55A

27411PULLEY, ALTERNATOR

main27411-16150i2YU..YR20,28..5H198708-198808

12V 60A

main27411-16180i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(05S,08S)..(B,E)198708-198808

12V 70A

main27411-16180i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(05S,08S)..(B,E)198708-198808

12V 60A

main27411-31042i4KJ..KR26198211-198808

12V 40A

main27411-63081i3YEU..YR21,3#198501-198708

12V 70A

sub27411-16180

main27411-63081i2YU..YR20..MRF..08S;2YU..YR20..HRF..5F..G;2YU..YR20,28..HRF..(05S,08S)..(B,E)198608-198808

12V 60A

sub27411-16180

main27411-64040i1C,2C..CR2#198211-198508

12V 45A,55A

main27411-64110i2C..CR21..4FC198408-198508

12V 55A

main27411-72010i3YEU..YR21198305-198408

12V 60A

sub27411-63080

main27411-72040i1YJ,2YU..YR20,26198211-198508

12V 40A,55A,65A

main27411-72100i3YEU..YR21198408-198608

12V 60A

sub27411-63081

main27411-72110i2YU..YR20,28..5H198508-198708

12V 60A

main27411-72120i1YJ..YR26198508-198808

12V 45A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i4KJ..KR26198211-198808

12V 40A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i4KJ,1YJ..KR26,YR26198211-198808

12V 40A

main27441-34111i2YU..YR20198211-198508

12V 65A

main27441-56090i1C,2C..CR2#198211-198508

12V 45A,55A

main27441-63030i2YU..YR20198211-198508

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-10050i1YJ..YR26198508-198808

12V 45A

sub27700-10080

main27700-63021i2C..CR36..SRF198508-198808

12V 70A

sub27700-70030

main27700-63021i3YEU..YR21198305-198808

12V 60A

sub27700-70030

main27700-63021i1C,2C..CR26,27,28,36198508-198808

12V 55A

sub27700-70030

main27700-63030i2YU..YR20198211-198508

12V 65A

main27700-64021i2CT..CR21,28,30,37198508-198808

12V 70A

main27700-70030i3YEU..YR21,3#198710-198808

12V 70A

main27700-72010i1C,2C,4KJ,1YJ,2YU..CR2#,KR26,YR20,26198211-198508

12V 40A,45A,55A

main27700-72010i4KJ..KR26198508-198808

12V 40A

main27700-72020i2YU..YR20..07S;2YU..YR20..MRF..5F..G198307-198508

12V55A,COLD SPEC

main27700-72040i3YEU..YR21198405-198808

12V 60A

sub27700-70030

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9165540616

main91655-40616

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461211001

main94612-11001

38 parts on this diagram · 9 diagrams in section
