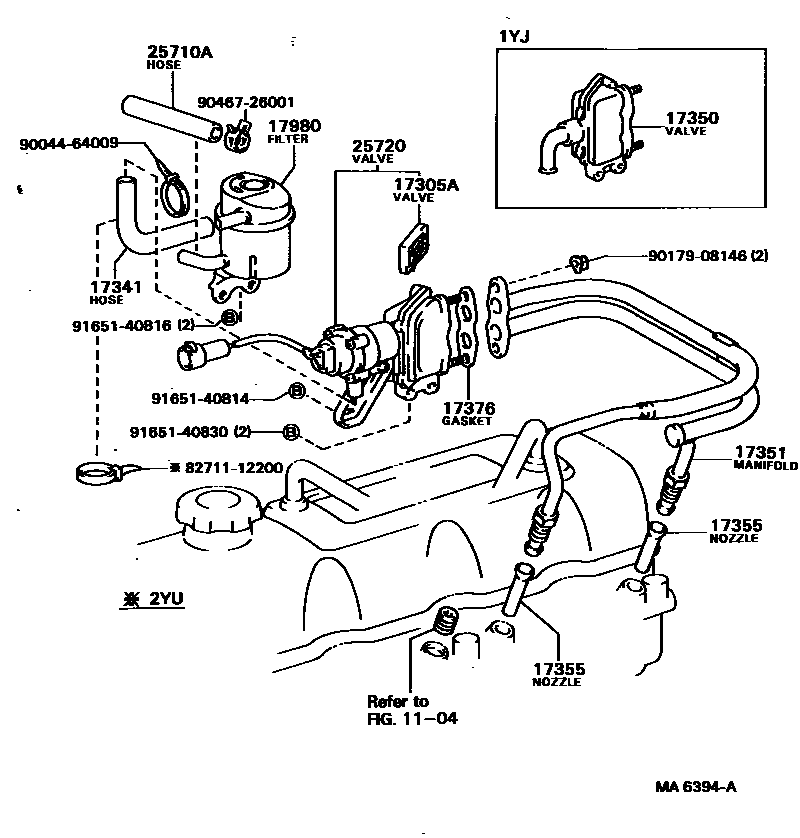

MANIFOLD AIR INJECTION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

17305AVALVE SUB-ASSY, REED

main17305-28010×2i2YU..YR20,28198211-198808

DENSO

main17305-71010×2i2YU..YR20,28198211-198808

NOK

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71010i1YJ,2YU..YR20,26,28198211-198808

17350VALVE ASSY, REED

main17350-71010i1YJ..YR26198211-198808

17351MANIFOLD, AIR INJECTION

main17306-71010i1YJ,2YU..YR20,26,28198211-198808

17355NOZZLE, AIR INJECTION

main17355-71010×2i1YJ,2YU..YR20,26,28198211-198808

17376GASKET, AIR TUBE, NO.1

main17376-71010i1YJ,2YU..YR20,26,28198211-198808

17980FILTER ASSY, AIR SUCTION

main17980-71011i1YJ,2YU..YR2#198211-198303

main17980-71012i2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);2YU..YR20,28..(HRF,SRF)..(B,E)198608-198808

main17980-71030i1YJ..YR26198303-198608

main17980-71031i1YJ..YR26198608-198808

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90445-29003i1YJ,2YU..YR20,26,28198211-198808

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-71010i2YU..YR20,28198211-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9004464009

main90044-64009

9017908146

main90179-08146

9046726001

main90467-26001

9165140814

main91651-40814

9165140816

main91651-40816

9165140830

main91651-40830

17 parts on this diagram · 1 diagram in section
