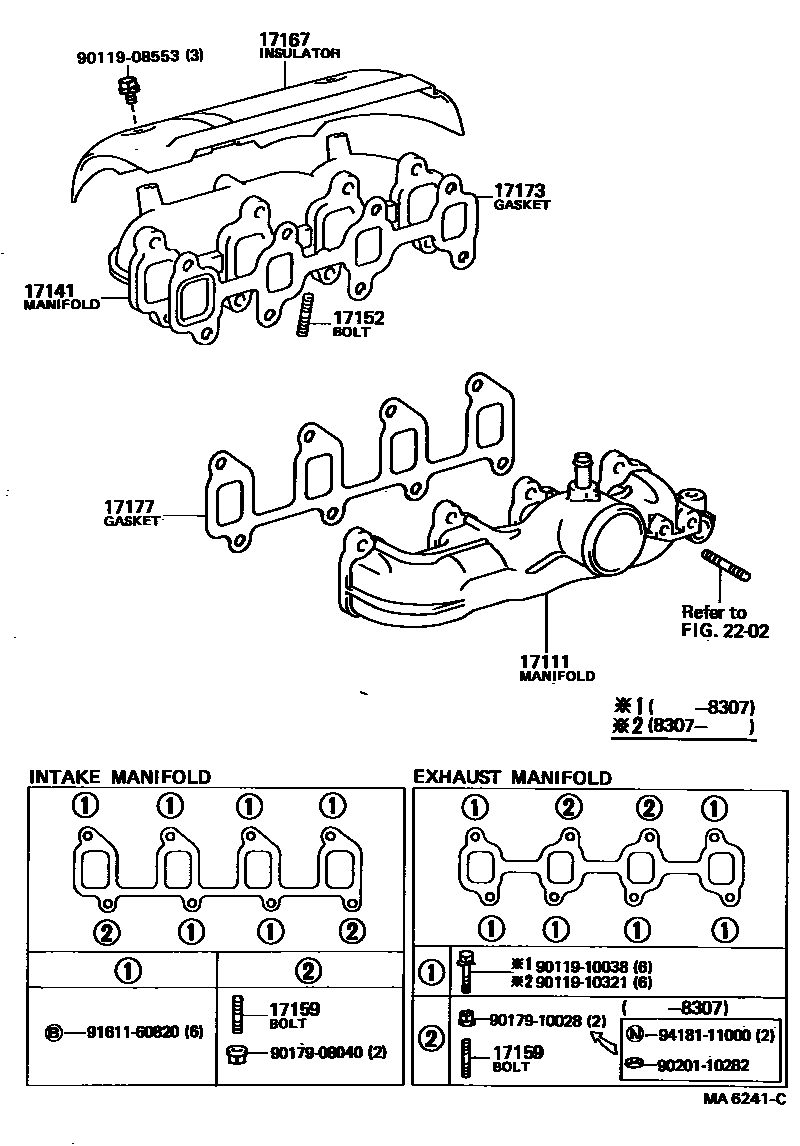

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-64010i1C,2C..CR21,26..5F198211-198508

main17101-64050i2C..CR21,27..4FC198408-198508

main17101-64070i2CT..CR21,30198508-198708

main17101-64080i1C,2C..CR2#,36198508-198808

main17101-64090i2CT..CR21,28,30,37198708-198808

main17111-71010i1YJ,2YU..YR20,26,28198211-198808

main17111-73010i3YEU..YR21198305-198508

main17111-73011i3YEU..YR21,3#198508-198808

17141MANIFOLD, EXHAUST

main17141-64010i1C,2C..CR2#198211-198307

main17141-64011i1C,2C..CR2#,36198307-198808

sub17141-64012

sub17173-64060

main17141-64080i2CT..CR21,28,30,37198508-198808

main17141-71010i2YU..YR20,28198211-198808

main17141-71020i1YJ..YR26198211-198808

main17141-72010i3YEU..YR21,3#198305-198808

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i4KJ..KR26198211-198508

main90116-10056i4KJ..KR26198508-198705

sub90116-10087

main90116-10058i1C,2C#..CR2#,3#198211-198808

main90116-10087i4KJ..KR26198705-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i1YJ,2YU,3YEU..YR2#,3#198211-198808

main90116-10095i1C,2C#..CR2#,3#198307-198808

EXHAUST MANIFOLD SIDE

main92122-41028i4KJ..KR26198211-198808

main92122-60820i1C,2C#..CR2#,3#198211-198808

INTAKE MANIFOLD SIDE

main92122-61032i1C,2C..CR2#198211-198307

EXHAUST MANIFOLD SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64020i1C,2C..CR2#,36198211-198808

main17167-64040i2CT..CR21,28,30,37198508-198808

main17167-71020i1YJ,2YU..YR20,26,28198211-198808

main17167-73010i3YEU..YR21,3#198305-198710

sub17167-73011

main17167-73011i3YEU..YR21,3#198710-198808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64020i1C,2C..CR2#,36198211-198808

sub17173-64050

main17173-64030i2CT..CR21,30198508-198608

sub17173-64050

main17173-64050i2CT..CR21,28,30,37198608-198808

sub17173-64051

sub17173-64080

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i1C,2C#..CR2#,3#198211-198808

sub17177-64020

2202

9011908553

main90119-08553

9011910038

main90119-10038

9011910321

main90119-10321

9017908040

main90179-08040

9017910028

main90179-10028

9020110282

main90201-10282

9161160820

main91611-60820

9418111000

main94181-11000

16 parts on this diagram · 6 diagrams in section
