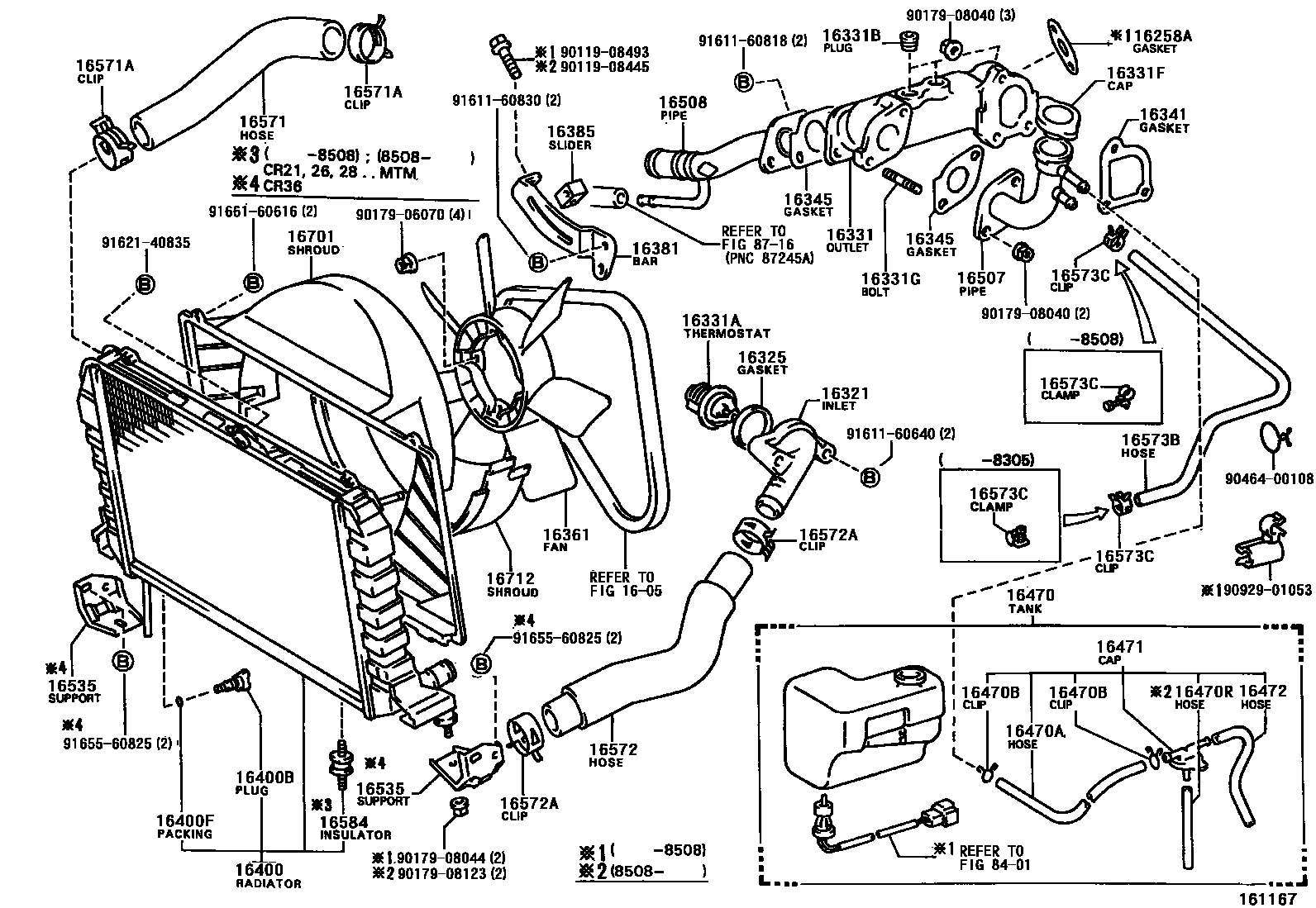

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1605

16258AGASKET(FOR HEATER RETURN)

main16258-64010i1C,2C..CR2#198211-198508

sub16258-64020

16321INLET, WATER

main16321-64010i1C,2C..CR2#198211-198508

main16321-64030i1C..CR26..02S198301-198808

*TECS 2

main16321-64040i1C,2C#..CR2#,3#198508-198808

main16321-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub16325-63011

16331OUTLET, WATER

main16304-71010i1YJ,2YU..YR20,26,28198211-198808

main16304-73010i3YEU..YR21,3#198305-198808

main16331-13050i4KJ..KR26198211-198508

main16331-13060i4KJ..KR26198508-198808

sub16304-13H00

main16331-64020i1C,2C..CR2#198211-198508

main16331-64050i1C,2C#..CR2#,3#198508-198808

16331ATHERMOSTAT

main90916-03046i1C,2C..CR2#198211-198808

main90916-03054i4KJ..KR26198211-198807

sub90916-03083

main90916-03055i4KJ..KR26198211-198807

sub90916-03078

main90916-03069i2YU..YR20..HRF..5F..G;2YU..YR20..HRF..(E,Q,X);2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198502-198808

sub90916-03046

main90916-03078i4KJ..KR26198807-198808

main90916-03083i4KJ..KR26198807-198808

16331BPLUG(FOR WATER OUTLET)

main90341-16008i3YEU..YR21,3#198311-198808

main90341-16009i3YEU..YR21198305-198311

main90344-53011i1C,2C#..CR2#,3#198508-198808

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-15210i1YJ,2YU,3YEU..YR2#,3#198408-198808

TOYO RADIATOR

main16401-63010i1C,2C#..CR2#,3#198211-198808

DENSO

main16401-71010i4KJ..KR26198211-198408

TOYO RADIATOR

sub16401-54750

main16401-71010i4KJ..KR26198408-198808

sub16401-54750

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i1C,2C#..CR2#,3#198211-198808

16341GASKET, WATER OUTLET

main16341-13011i4KJ..KR26198211-198508

sub16341-13040

main16341-13030i4KJ..KR26198508-198808

main16341-64010i1C,2C#..CR2#,3#198211-198808

sub16341-64020

main16341-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub16341-71011

16345GASKET, WATER OUTLET PIPE

main16345-64010i1C,2C#..CR2#,3#198211-198808

sub16345-64030

16361FAN

main16361-26040i4KJ..KR26198211-198808

main16361-38010i1YJ,2YU,3YEU..YR2#,3#198211-198808

main16361-56070i2CT..CR21,28198508-198808

main16361-73030i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198708-198808

16381BAR, FAN BELT ADJUSTING

main16381-24011i4KJ..KR26198211-198808

main16381-64011i1C,2C..CR2#198211-198508

main16381-64030i1C,2C#..CR2#,3#198508-198808

main16381-71010i1YJ,2YU..YR20,26198211-198508

main16381-73010i3YEU..YR21198305-198508

sub16381-73011

main16381-73011i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

16385SLIDER, FAN BELT ADJUSTING

main16385-64011i1C,2C#..CR2#,3#198211-198808

main16385-71010i3YEU..YR21198305-198808

main16385-71010i1YJ,2YU..YR20,26198211-198508

W/PS

16400RADIATOR ASSY

main16400-13260i4KJ..KR26198211-198508

main16400-13370i4KJ..KR26198508-198808

main16400-64030i1C..CR26198211-198307

main16400-64030i2C..CR21..5F198304-198508

COLD SPEC

main16400-64100i2C..CR21198304-198508

main16400-64180i1C..CR26198311-198508

sub16400-64100

main16400-64200i2C..CR27198409-198508

main16400-64210i2C..CR21..4FC198408-198508

main16400-64230i2CT..CR21,28..5F198508-198808

sub16400-64550

main16400-64240i2CT..CR21..4FC198508-198701

sub16400-64241

main16400-64241i2CT..CR21,28..4FC198701-198808

main16400-64250i2CT..CR30,37..5F198510-198808

main16400-64260i2CT..CR30..4FC198510-198708

sub16400-64261

main16400-64261i2CT..CR30..4FC198708-198808

sub16400-64510

main16400-64270i1C,2C..CR21,26,28..5F198508-198808

sub16400-64500

main16400-64280i2C..CR21,28..4FC198508-198708

sub16400-64570

main16400-64290i2C..CR27198508-198808

sub16400-64570

main16400-64300i2C..CR36198510-198808

sub16400-64250

main16400-71010i1YJ..YR26..MTM198211-198508

sub16400-72070

main16400-71011i1YJ..YR26..MTM198508-198808

sub16400-72210

main16400-71060i1YJ..YR26..4FC198211-198508

sub16400-72080

main16400-71061i1YJ..YR26..4FC198508-198808

sub16400-72220

main16400-72070i2YU..YR20..MTM198211-198508

main16400-72071i2YU..YR20,28..MTM..(B,D,E,G,Q)198508-198808

main16400-72080i2YU..YR20..4FC198211-198408

sub16400-72110

main16400-73040i3YEU..YR21..5F198305-198408

sub16400-73120

main16400-73050i3YEU..YR21..4FC198305-198508

sub16400-73120

main16400-73051i2YU..YR20..MRF..4FC;2YU,3YEU..YR20,21,28..HRF..4FC..(B,E,Q)198508-198808

sub16400-73121

main16400-73110i3YEU..YR21..5F198408-198508

main16400-73111i3YEU..YR21..5F198508-198808

main16400-73170i3YEU..YR3#..5F198510-198808

sub16400-73190

main16400-73180i3YEU..YR3#..4FC198510-198808

sub16400-73190

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i2CT..CR21,28,30,37198211-198808

main90910-09054i1C,2C..CR2#198211-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i4KJ..KR26198211-198808

main96711-19007i3YEU..YR21198211-198808

16470TANK ASSY, RADIATOR RESERVE

main16470-13010i4KJ..KR26198211-198508

sub16470-64010

main16470-13030i4KJ..KR26198508-198808

main16470-64010i1C,2C..CR2#..D,G,N198211-198508

main16470-64020i2C..CR21..E198304-198508

main16470-64030i2CT..CR21,28,30,37198508-198808

main16470-64040i1C,2C..CR2#,36198508-198808

sub16470-64030

main16470-71010i1YJ,2YU..YR20,26..D,G,N198211-198508

main16470-71020i2YU,3YEU..YR20,21..MRF..5F..G198211-198508

W/LEVEL SENSOR

main16470-73010i3YEU..YR21,3#198508-198808

sub16470-73011

main16470-73020i1YJ,2YU..YR26,28;2YU..YR20..MRF..(D,G);2YU..YR20..HRF..5F..G198508-198808

sub16470-73021

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-15030i4KJ..KR26198604-198808

NO.1

main85338-73010i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

NO.1

main85338-73030i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

main90099-33534i1YJ,2YU,3YEU..YR2#198211-198508

main90445-12077i2C..CR21..E198304-198508

sub90099-33370

main90445-12078i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

main90445-12078i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

main90445-12078i1C,2C#..CR2#,3#198508-198808

main90445-12796i1C,2C..CR2#..D,G,N198211-198508

sub90445-12078

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1C,2C#..CR2#,3#198211-198808

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1C,2C#..CR2#,3#198508-198808

16471CAP SUB-ASSY, RESERVE TANK

main16405-13030i4KJ..KR26198211-198508

sub16471-64010

main16405-13040i4KJ..KR26198508-198808

main16471-64010i1C,2C..CR2#198211-198508

main16471-64020i1C,2C#..CR2#,3#198508-198808

main16471-71010i1YJ,2YU,3YEU..YR2#198211-198508

main16471-73010i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

sub16471-73011

16472HOSE, BREATHER

main85338-30010i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

main85338-72010i1YJ,3YEU..YR21,26;2YU..YR20..HRF..5F..G;2YU..YR20..HRF..(E,Q,X);2YU..YR20..MRF..(08S,09S)198502-198609

main85338-74040i4KJ..KR26198609-198808

main90099-33393i4KJ..KR26198211-198508

main90445-12078i1C,2C#..CR2#,3#198508-198808

16507PIPE SUB-ASSY, RADIATOR

main16507-64010i1C,2C..CR2#198211-198508

main16507-64020i1C,2C#..CR2#,3#198508-198808

16508PIPE SUB-ASSY, RADIATOR, NO.2

main16508-64010i1C,2C..CR2#198211-198508

main16508-64020i1C,2C#..CR2#,3#198508-198808

16535SUPPORT, RADIATOR, LOWER

main16533-64060i2C#..CR3#198510-198808

RH

main16534-64010i2C#..CR3#198510-198808

LH

16571HOSE, RADIATOR, INLET

main16571-13110i4KJ..KR26198211-198508

main16571-13160i4KJ..KR26198508-198808

main16571-64030i1C,2C#..CR2#198211-198808

main16571-64090i2C#..CR3#198510-198808

main16571-71010i1YJ,2YU..YR20,26198211-198408

main16571-71040i1YJ,2YU,3YEU..YR2#198408-198808

main16571-73020i3YEU..YR21198305-198408

main16571-73050i3YEU..YR3#198510-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i4KJ..KR26198508-198808

sub90466-30001

main90467-37001i1C,2C..CR2#198211-198808

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-13100i4KJ..KR26198211-198808

main16572-64030i1C,2C..CR2#198211-198508

main16572-64070i1C..CR26..02S198301-198808

*TECS 2

main16572-64100i1C,2C#..CR2#198508-198808

main16572-64110i2C#..CR3#198510-198808

main16572-71010i1YJ,2YU,3YEU..YR2#198211-198808

main16572-73040i3YEU..YR3#198510-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i4KJ..KR26198211-198808

main90467-37001i1C,2C#..CR2#,3#198211-198808

sub90467-37003

main96111-10440i1YJ,2YU..YR2#198211-198304

16573BHOSE, RADIATOR, NO.3

main16573-64010i1C,2C..CR2#198211-198508

main16573-64011i1C,2C#..CR2#198508-198808

main16573-64020i2C#..CR3#198510-198808

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90460-14001i1C,2C..CR2#198304-198508

PIPE SIDE

main90460-14001i1C..CR26198211-198304

main90467-13001i1C,2C..CR2#198304-198508

RADIATOR SIDE

sub96135-51300

main90467-13001i1C,2C#..CR2#,3#198508-198808

sub96135-51300

16584INSULATOR, RADIATOR MOUNTING

main17853-38010i1YJ,2YU,3YEU..YR2#198211-198808

16701SHROUD SUB-ASSY, FAN

main16711-13190i4KJ..KR26198211-198808

main16711-64030i1C,2C..CR2#198211-198808

main16711-64110i2CT..CR21,28198508-198808

main16711-64120i2C#..CR3#198510-198808

main16711-71010i1YJ..YR26;2YU..YR20,28..MTM198211-198808

main16711-73020i3YEU..YR21198305-198808

main16711-73040i3YEU..YR3#198510-198808

16712SHROUD, FAN, NO.2

main16712-13050i4KJ..KR26198211-198808

W/COOLER

main16712-64020i1C,2C..CR2#198211-198808

main16712-64050i2CT..CR21,28198508-198808

main16712-64060i2C#..CR3#198510-198808

main16712-71010i1YJ,2YU,3YEU..YR2#198211-198808

main16712-73020i3YEU..YR3#198510-198808

8401

8716

9011908445

main90119-08445

9011908493

main90119-08493

9017906070

main90179-06070

9017908040

main90179-08040

9017908044

main90179-08044

9017908123

main90179-08123

9046400108

main90464-00108

9092901053

main90929-01053

9161160640

main91611-60640

9161160818

main91611-60818

9161160830

main91611-60830

9162140835

main91621-40835

9165560825

main91655-60825

9166160616

main91661-60616

51 parts on this diagram · 8 diagrams in section
